Trigger button Power Saving Mini Relay Contact RF Wireless Switches3.7v4.2v5v6v7.4v9v12v 433 Smart Home Small Tiny Remote Switch

Save 20%
East Supplier PlatformSKU: 1005001802028948-Receiver ONLY

Color: Receiver ONLY
Price:
$9.86 $12.33

Tax included

Stock:
In stock (3956 units), ready to be shipped

Description

SPECIFICATIONS

Brand Name: YurKuong

Certification: CCC

Choice: yes

Current: 1A

Features: Sticky Transmitter anywhere

Is Smart Device: YES

Item Type: SWITCHES

Material: aluminium alloy

Model Number: VJ1+JSLJLU

Origin: Mainland China

Remote Distance: 10-100m

Switch Type: REMOTE CONTROL

Warranty: 1

semi_Choice: yes

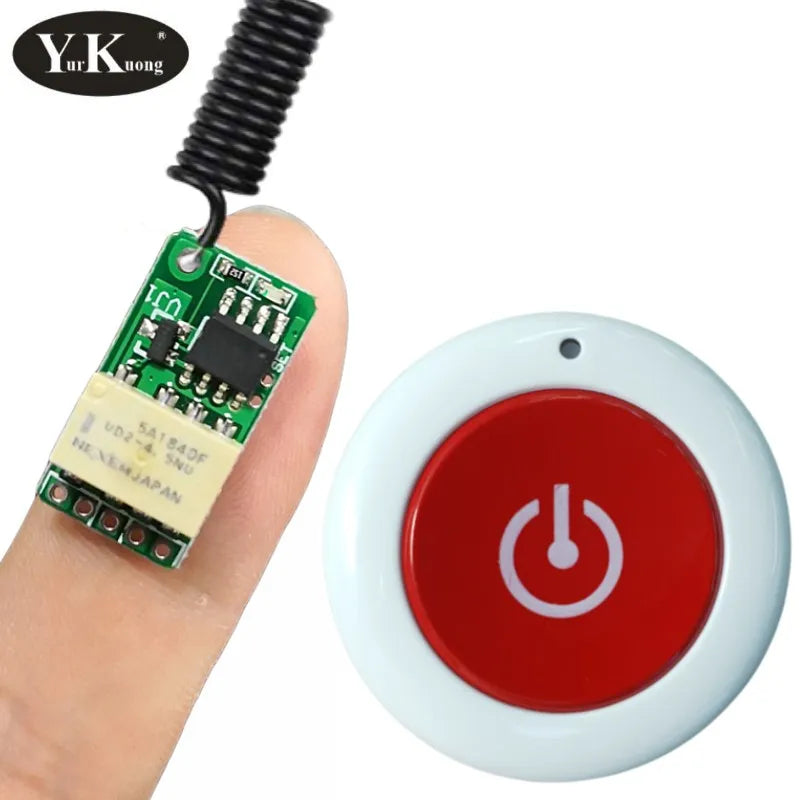

Mini Size 21*11*8mm

much more lower power consumption

only 0.1-0.6 ma standby current

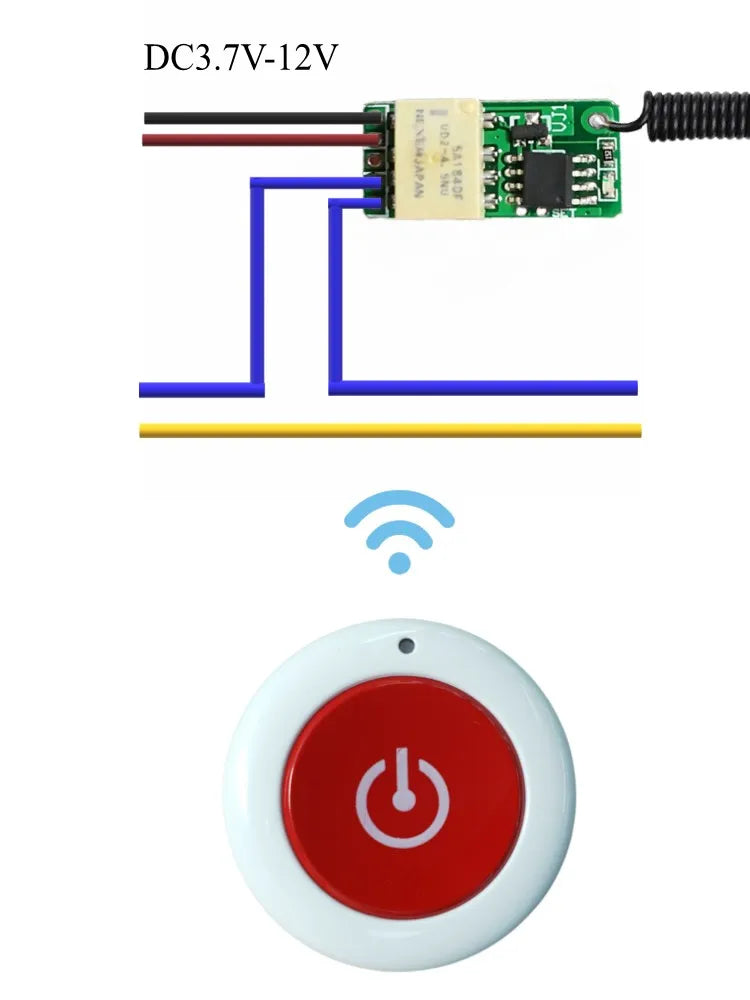

it is a Relay Contact Mini Remote Control SwitchInput DC3.7V-12V Output 0V Switching Value ,

use Relay Contact NO (Normally Open) COM ( Common)

or NC ( Normally Closed ) COM ( Common)


Working Voltage:       DC3.7V-12V

Quiescent Working Current:       0.1-0.6ma

Working Current:       20-30ma

Max Load:            1A Relay have better load less than 0.7A

Receiving Sensitivity:          ≥-110dBm

Size:      20*11*11mm


Learning Dot to add transmitter and adjusted Momentary Toggle Latched


Momentary----- Press and Hold---ON, Release----OFF

Toggle-------Press one time ----ON. Press it again ----OFF

Latched--------Press A ----ON, Press B-----OFF

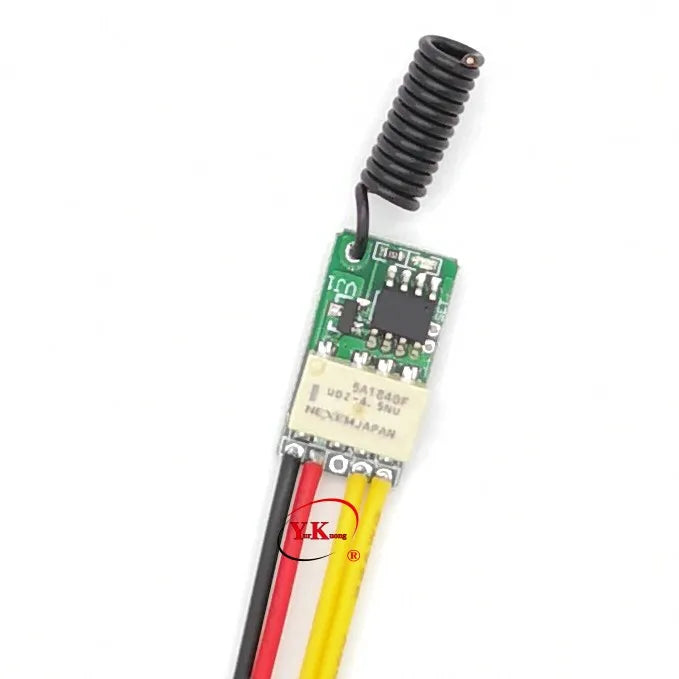

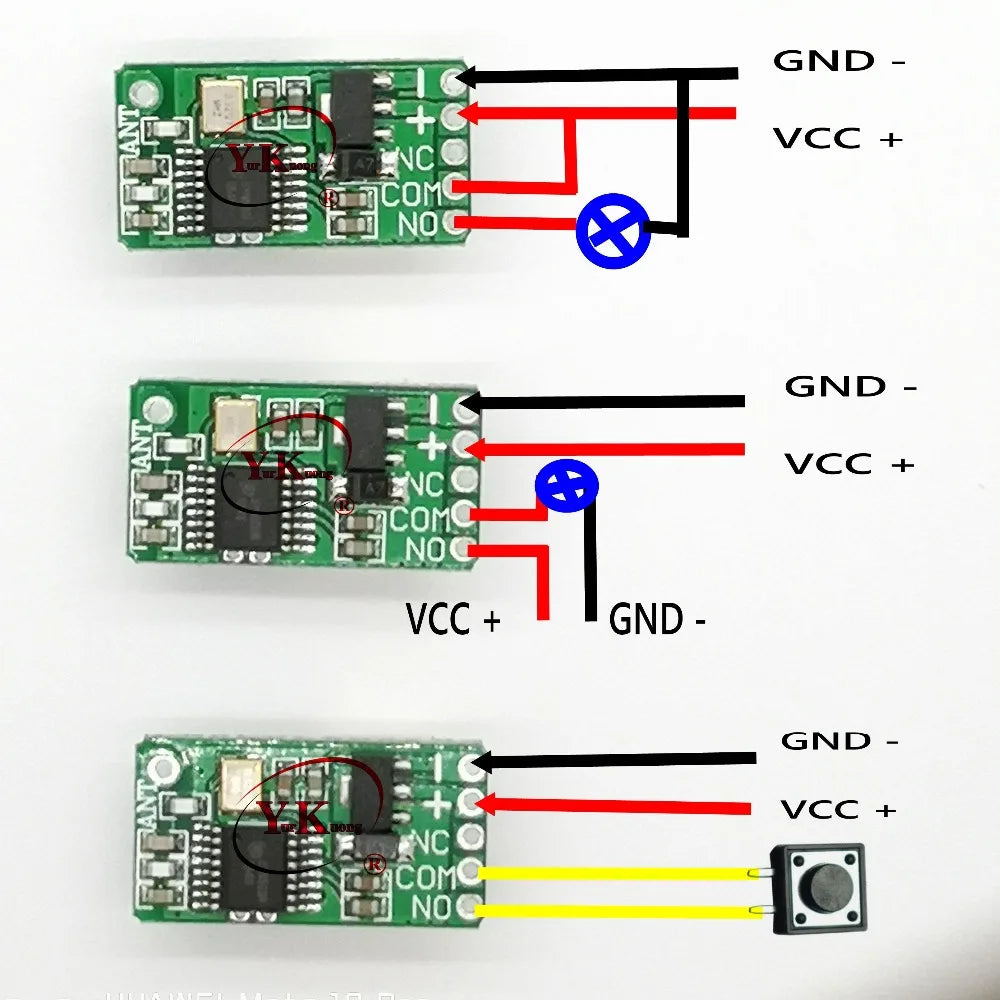

-           Black----------Input - GND

+             Red------------Input + VCC

NC               ------------NC (Normally  Closed)

COM-Yellow-------COM (Common)

NO Yellow   ----------NO (Normally  Open)
