Description
SPECIFICATIONS
Air Assistance: Built-in
Brand Name: Laser Tree
Certification: CE
Compatible with: Various models of DIY laser engraver cutter
Function: Engraving Cutting Woodworking Tools
Hign-concerned Chemical: None
Input: 24V

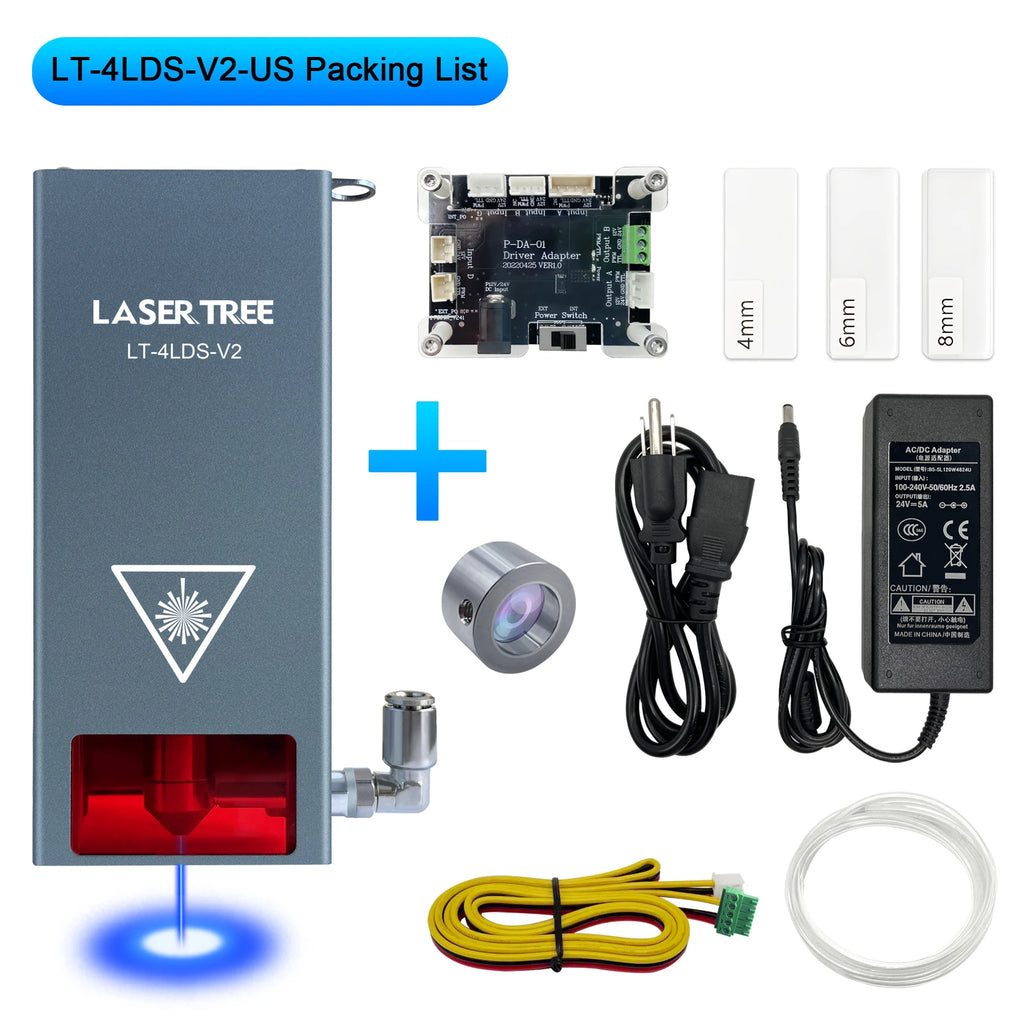

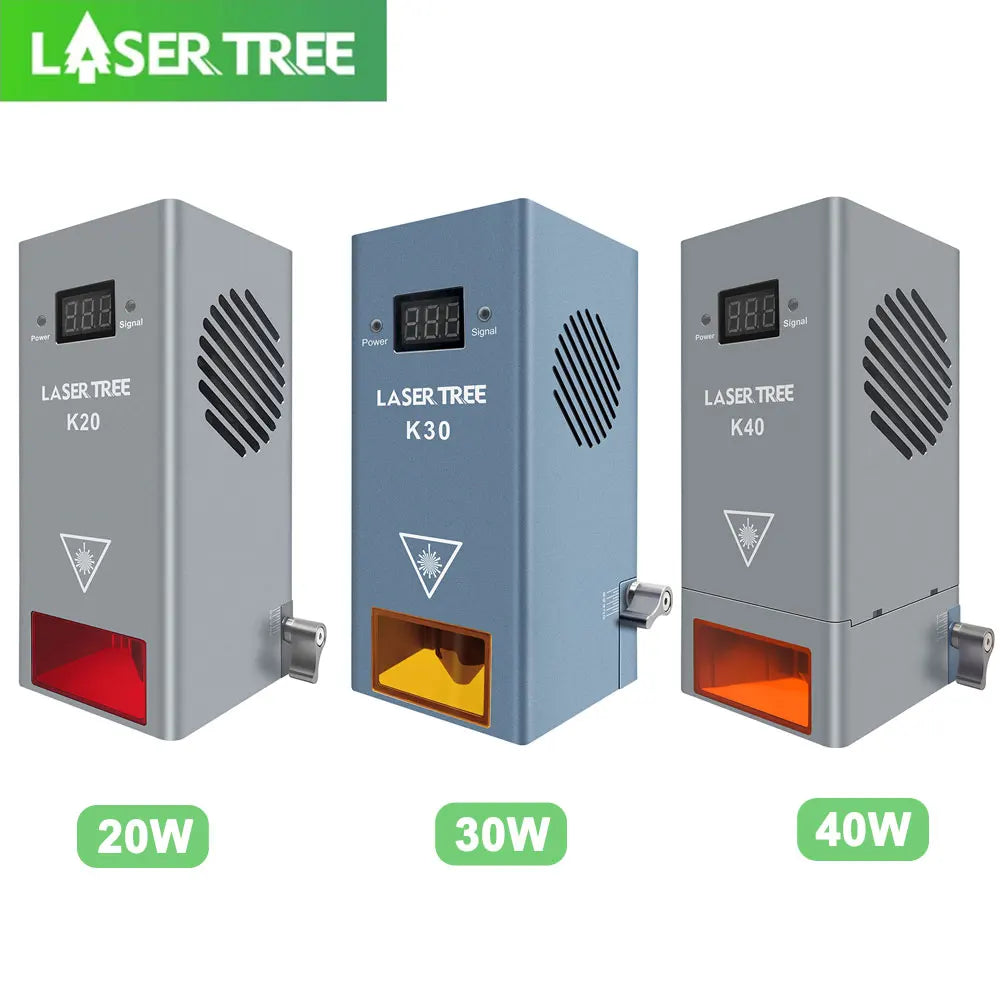

LT-4LDS-V2: 4 Laser Diode
LT-4LDS-V2 Output Optical Power: 20W +
LT-K20: 4 Laser Diode
LT-K20 Output Optical Power: 20W+
LT-K30: 6 Laser Diode
LT-K30 Output Optical Power: 30W+

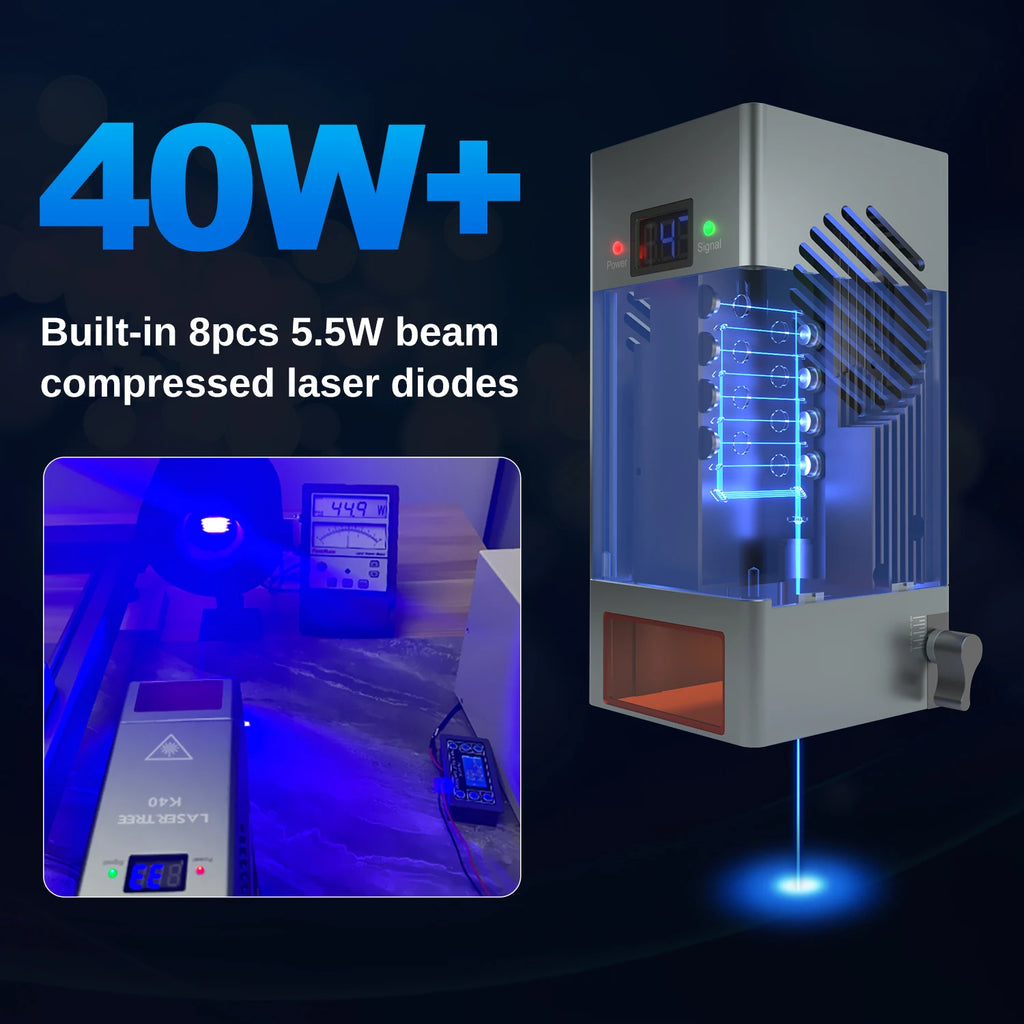

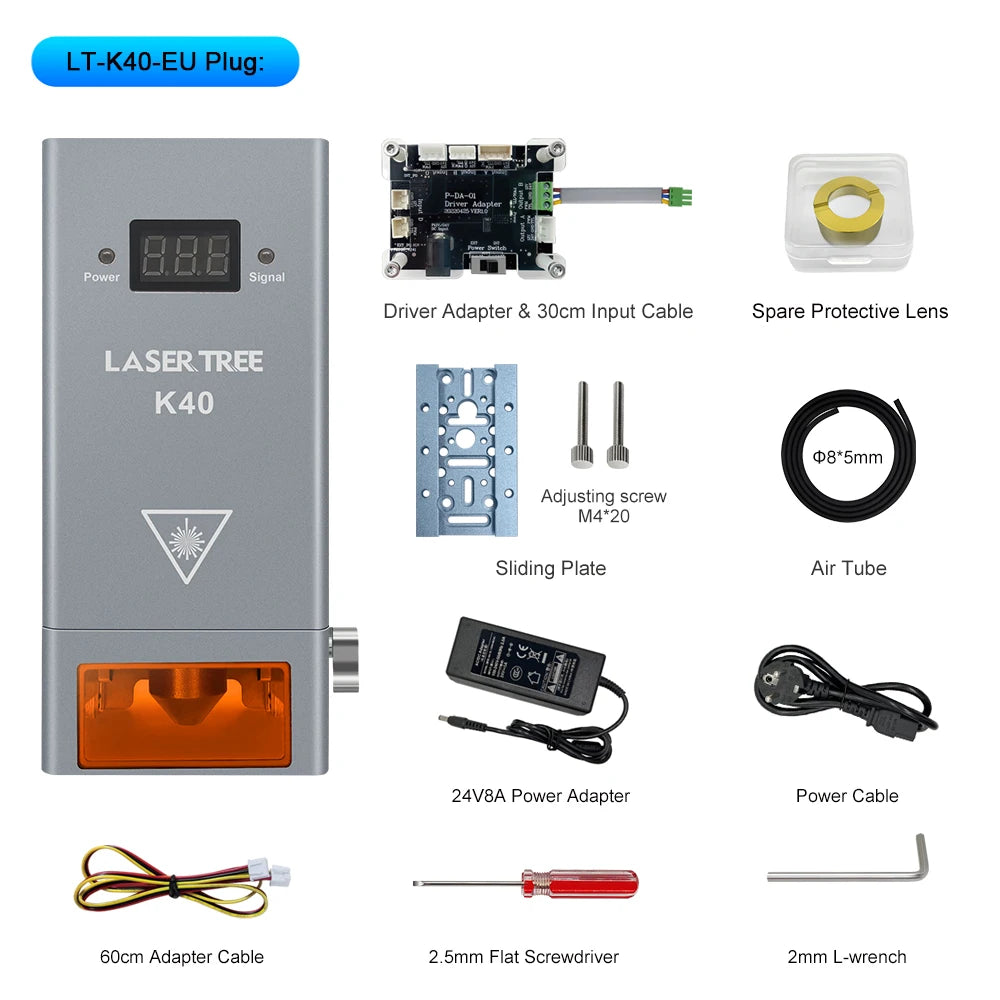

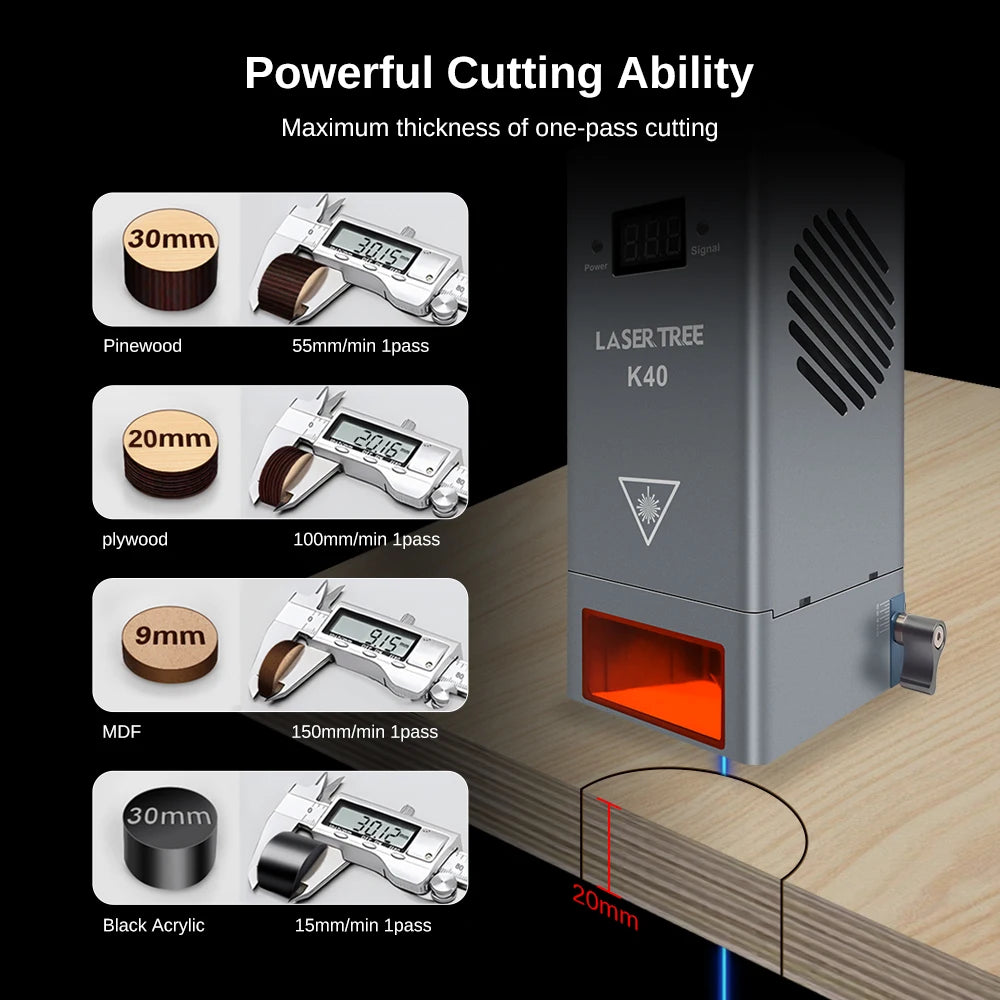

LT-K40: 8 Laser Diode
LT-K40 Output Optical Power: 40W+
Material: Aluminum alloy
Model Number: High-power Laser Module
Origin: Mainland China
Service: Dropping Shipping Service

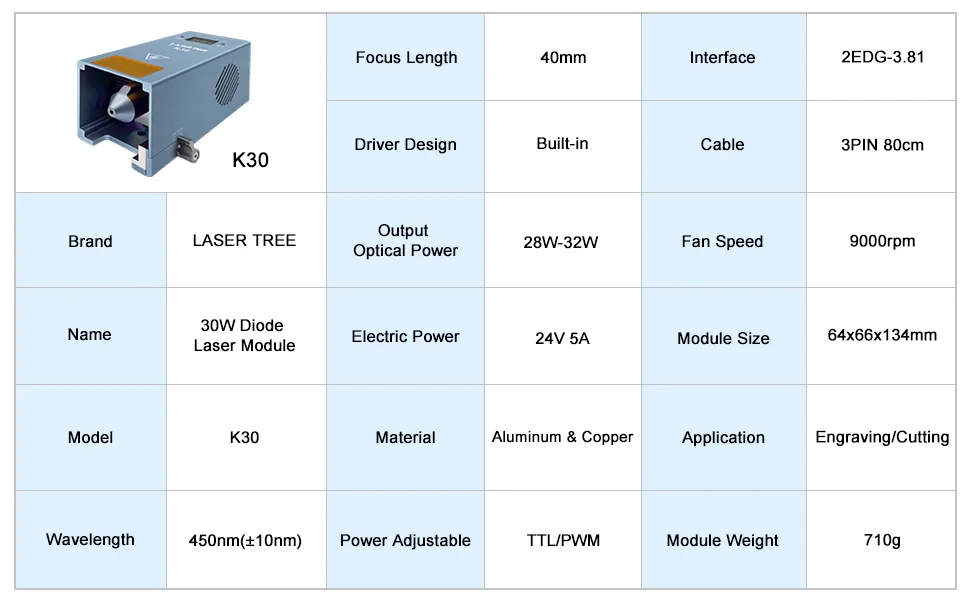

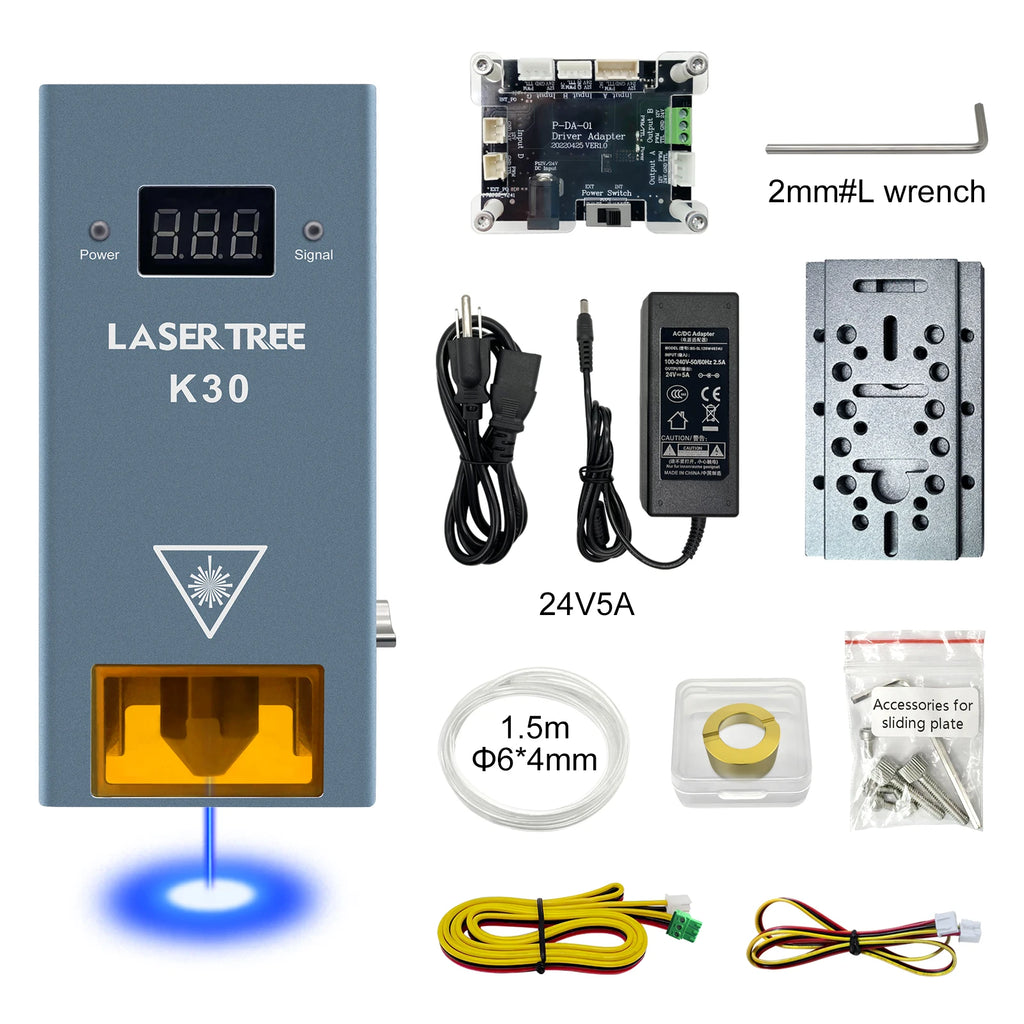

LT-K30 Features:

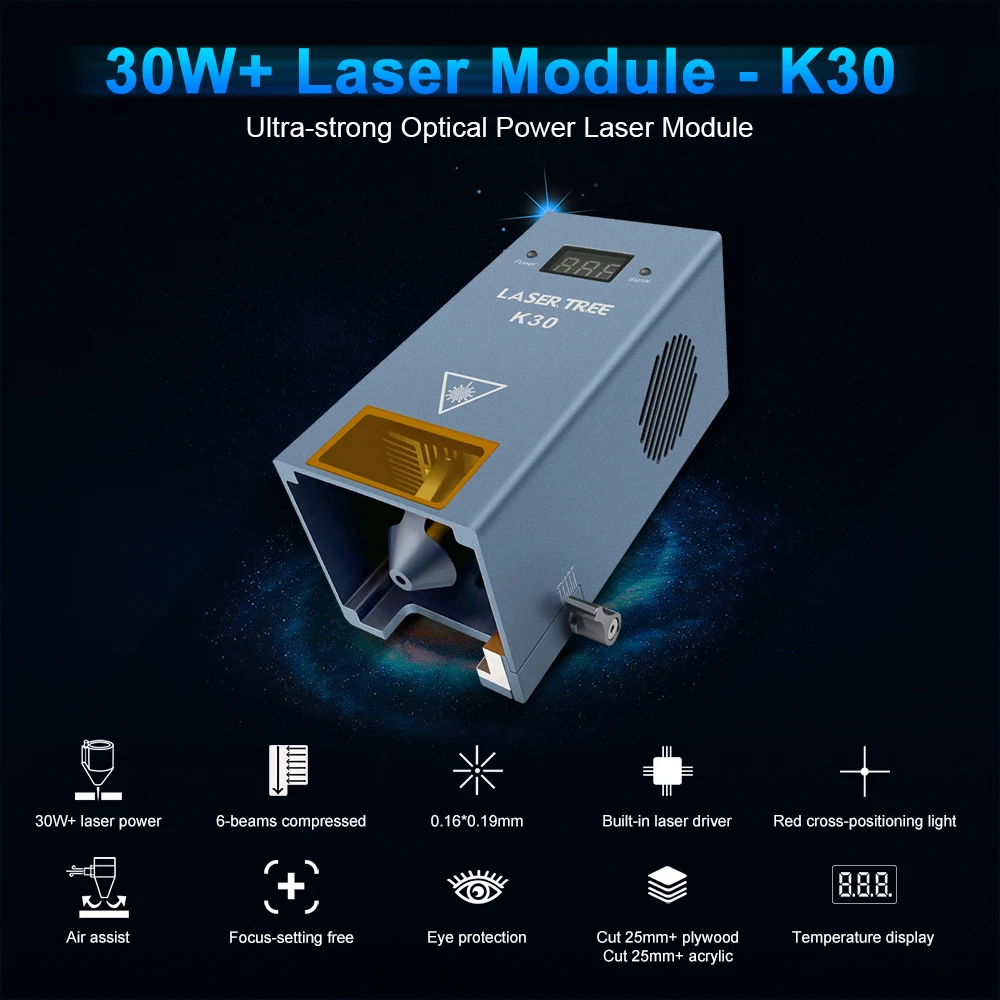

30W+ Optical Power Laser Module with Air Assist
1. Ultrahigh Power
K30 is a high power 30W+ (28W-32W) optical power laser module, built-in 6pcs 5.5W beam compressed laser diodes
2. Powerful Cutting Ability

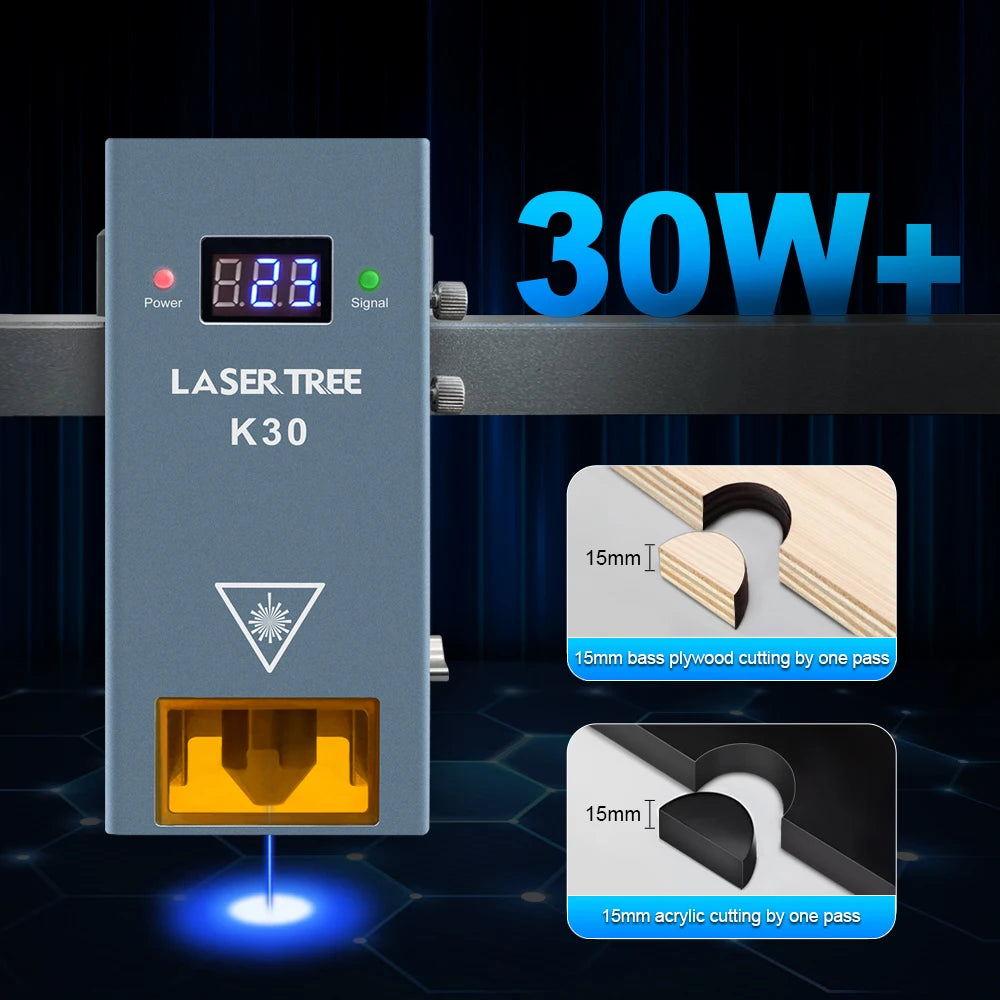

Cut 15mm bass plywood: 180mm/min, 100% power, by one pass
Cut 15mm black acrylic: 35mm/min, 100% power, by one pass
Cut 20mm pine wood: 120mm/min, 100% power, by one pass
Cut 9mm MDF: 300mm/min, 100% power, by 2 passe
3. Super Fast Engraving Speed
3 times engraving speed compare with 10W laser power module
4. Built-in Air Assist & Dual-Fans Cooling Systerm
1. Built-in air assist to get clean-cut edges, improve cutting performance
2. Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life

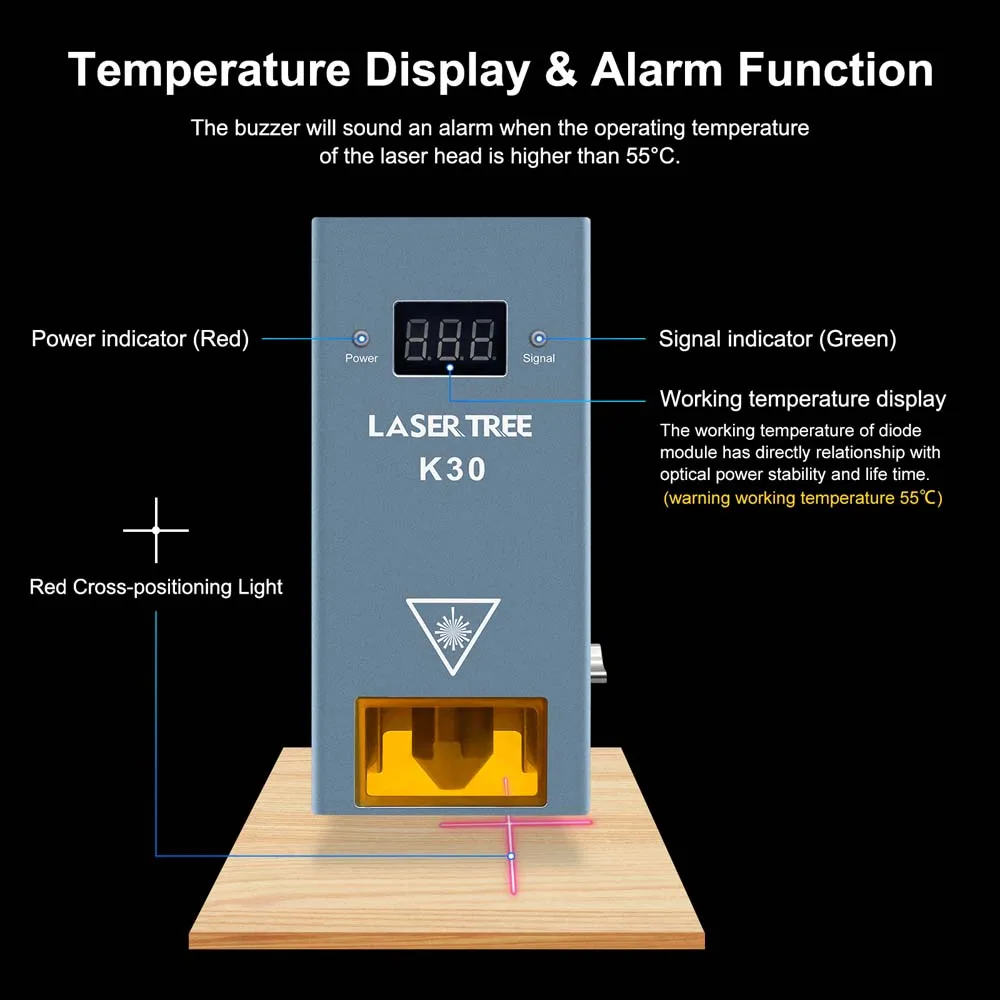

5. Temperature Display & Alarm Function
Use in high working temperature will affect the life of the laser module.
K30 with temperature display function can easily check the internal temperature of the module.
The buzzer will sound an alarm when the temperature of the laser head is higher than 55℃ ( Suggested working temperature <35℃.)

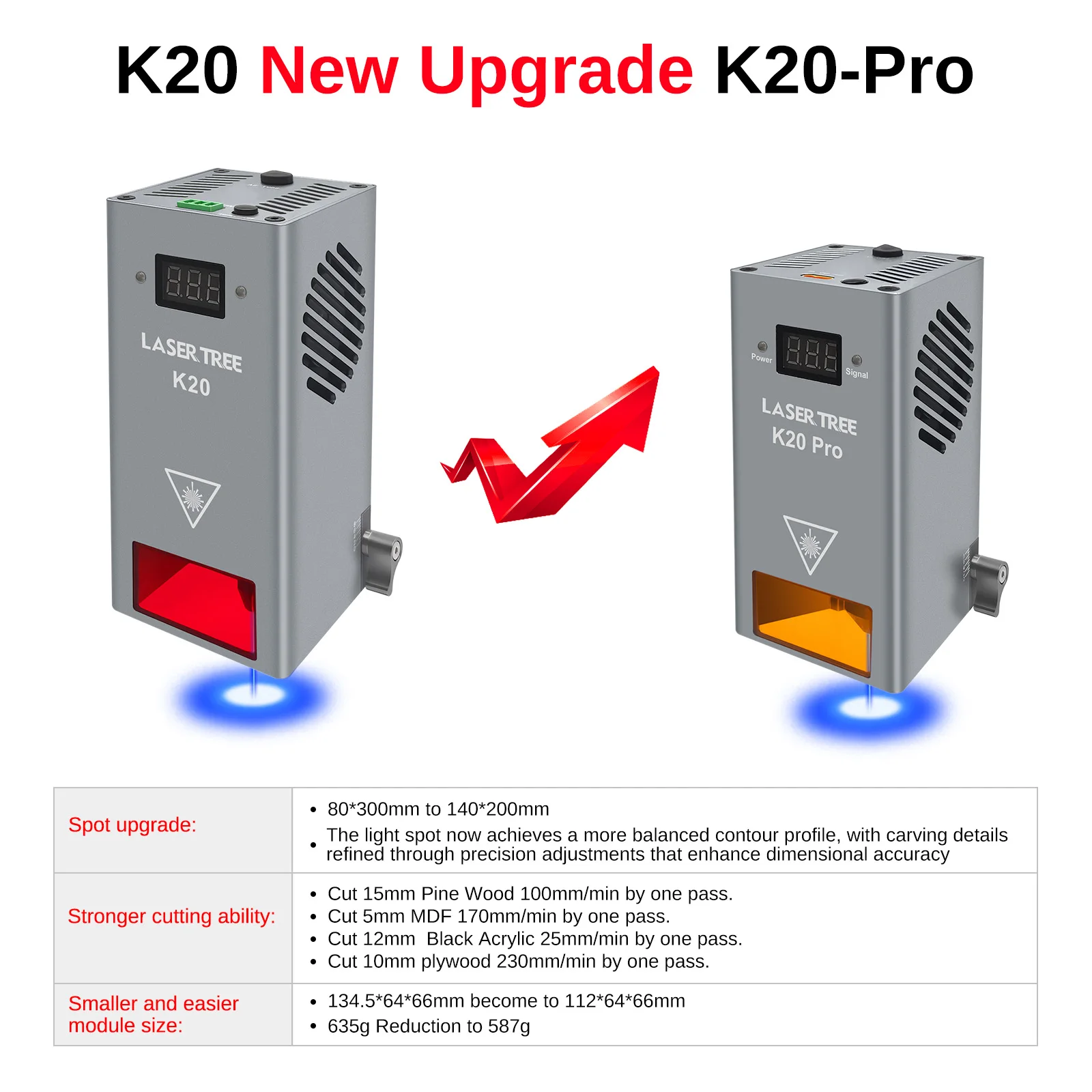

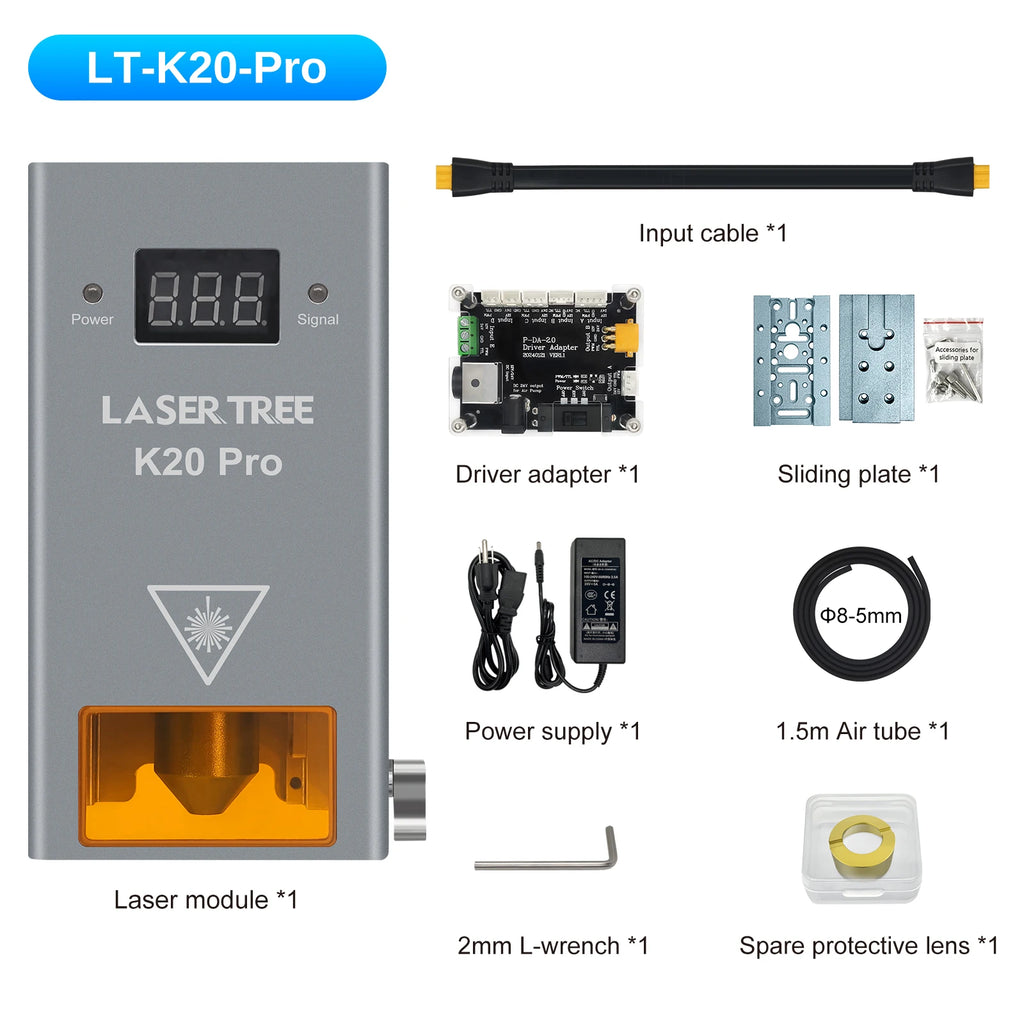

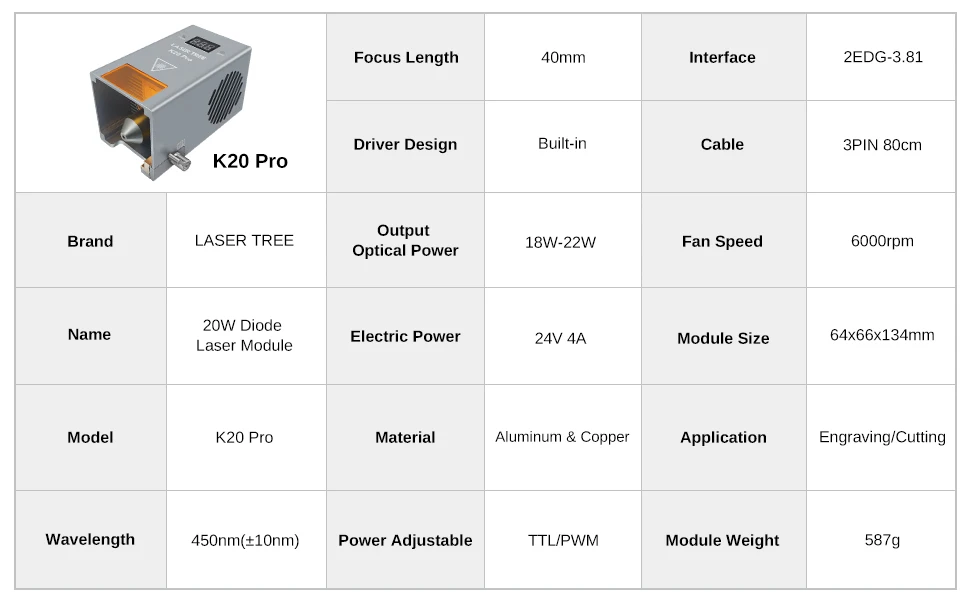

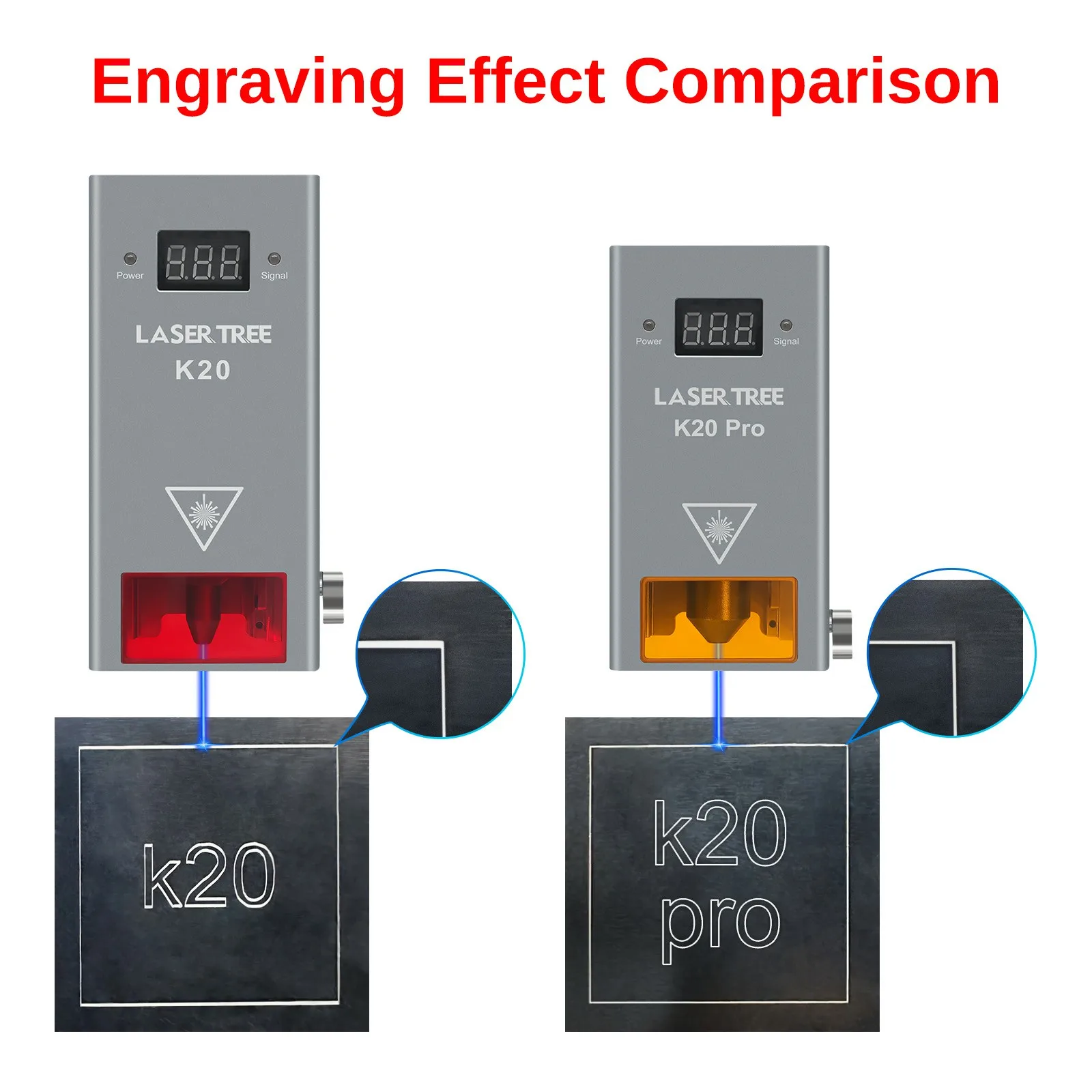

LT-K20-Pro（LT-K20 Upgrade）Features:
20W Optical Power Laser Module with Air Assist
1. 4-Beam compression technology, real 20W optical power laser module.

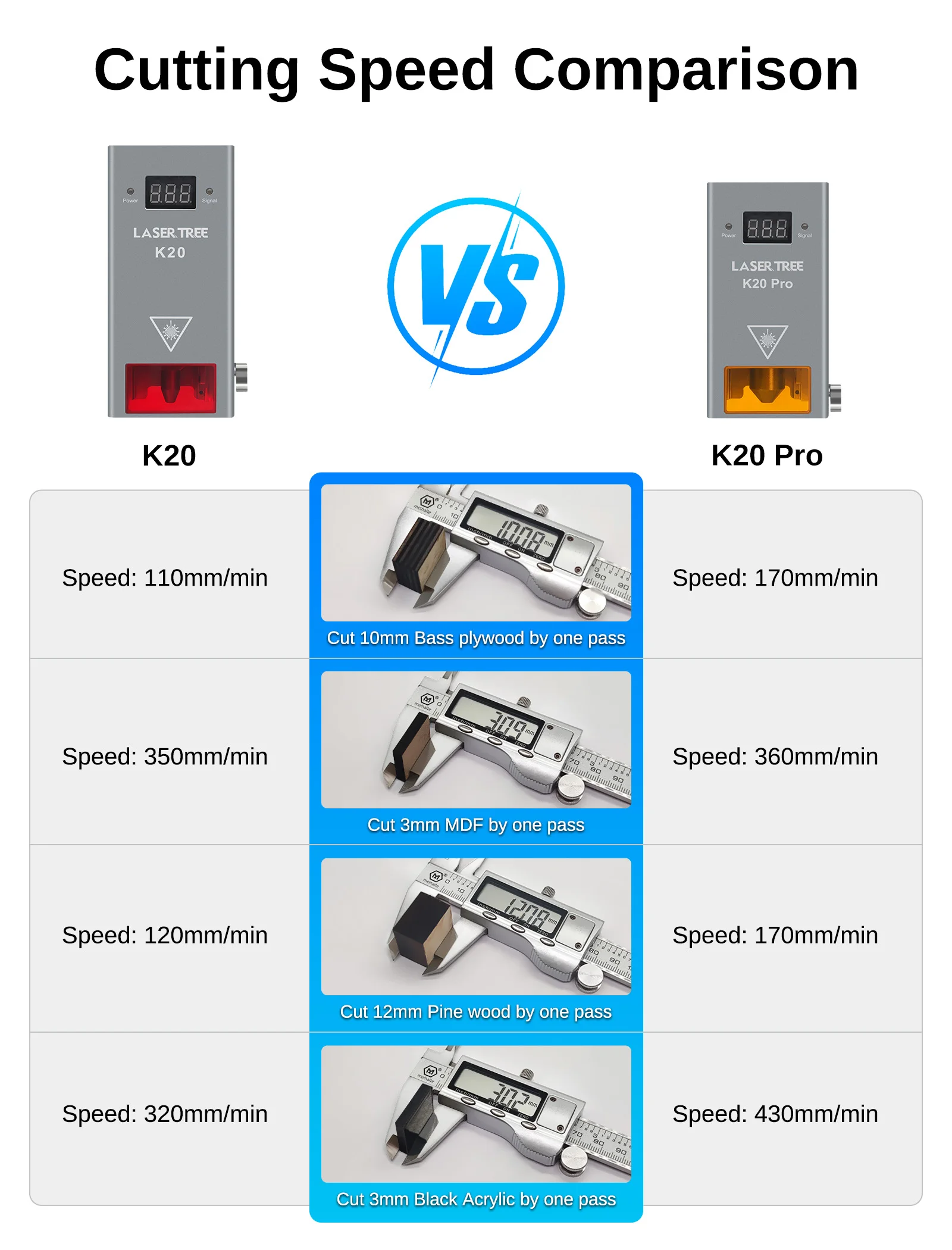

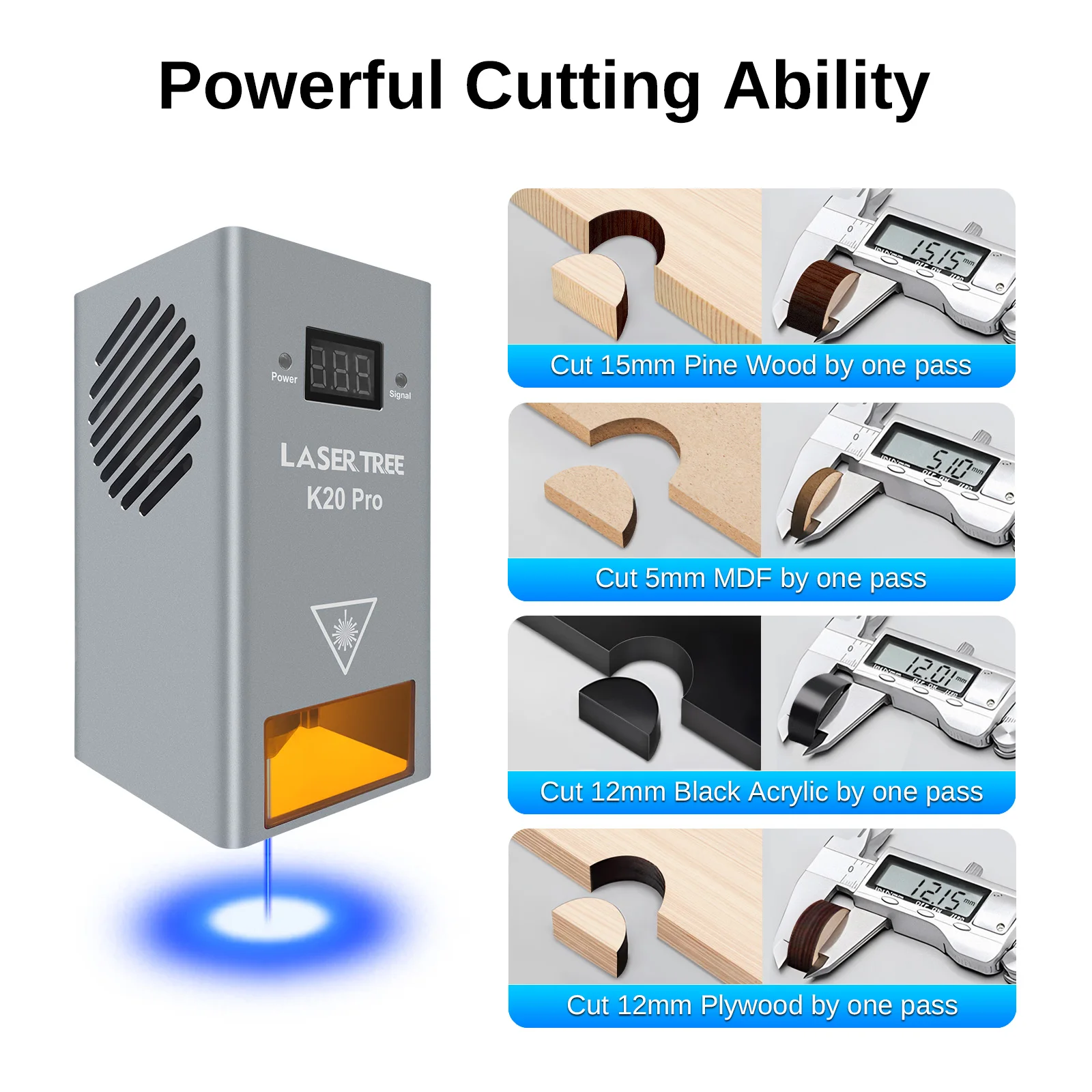

2.Cut 15mm Pine Wood 100mm/min by one pass.
Cut 5mm MDF 170mm/min by one pass.
Cut 12mm Black Acrylic 25mm/min by one pass.
Cut 10mm plywood 230mm/min by one pass.
3. With professional air assist to get clean-cut edges, improve cutting performance
4. Excellent heat dissipation design, keep stable cutting ability and extend service life
5. Only 300~400mw power decrease with 100% power output in 30mins
6. New eye protective cover design, can effectively filter blue light
7. Upgrade 40mm fixed focus , cutting ability is stronger
8. Support digital（TTL/PWM）and analog modulation
9. Compatible with Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

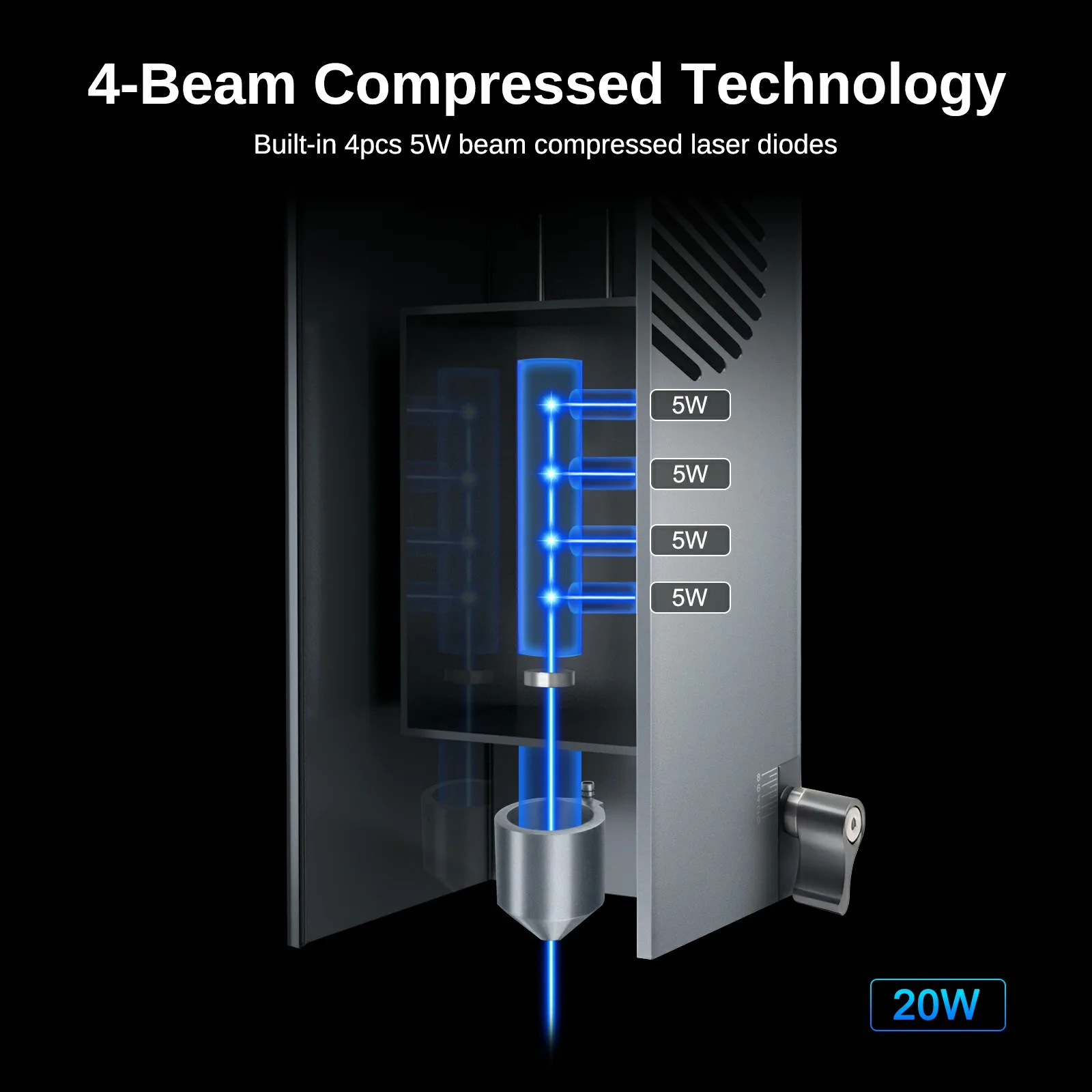

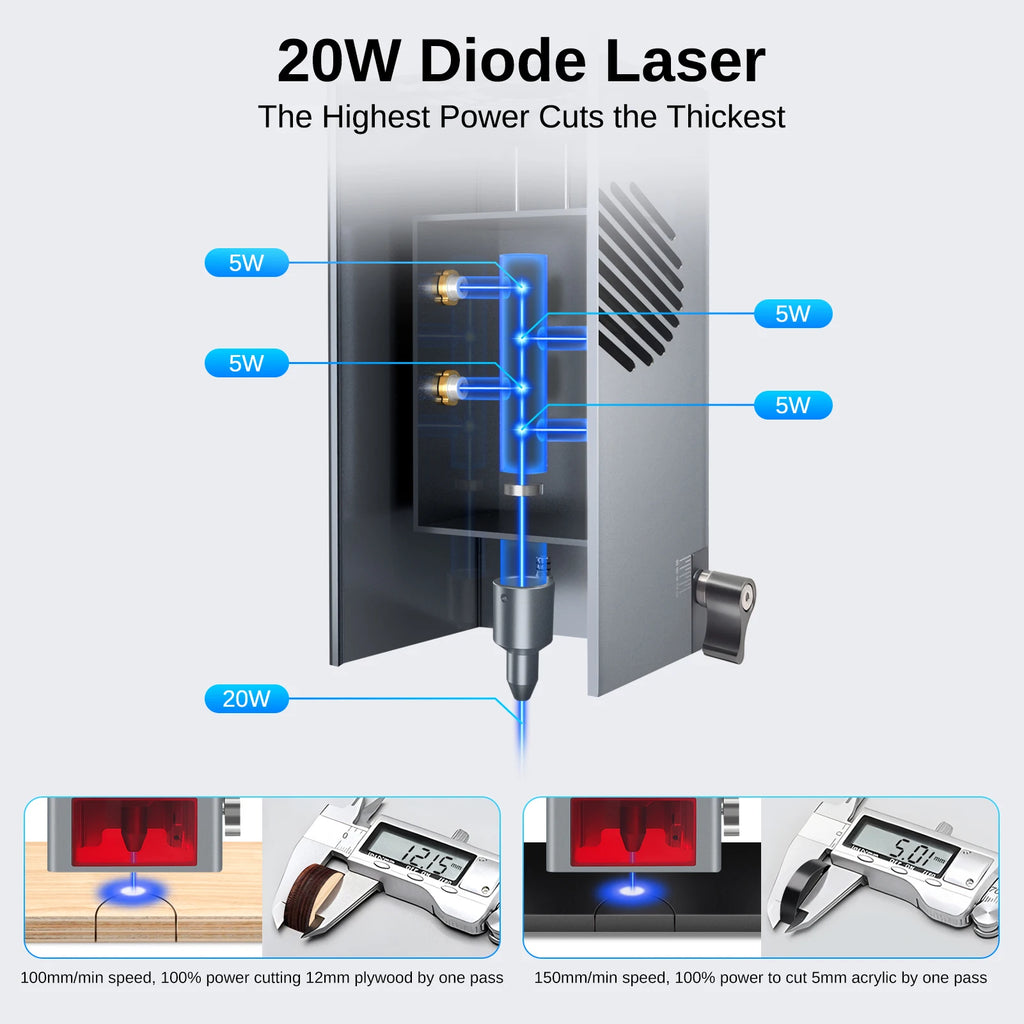

4-Beam Compressed Technology
Built-in 4pcs 5W beam compressed laser diodes, 20W optical power laser module

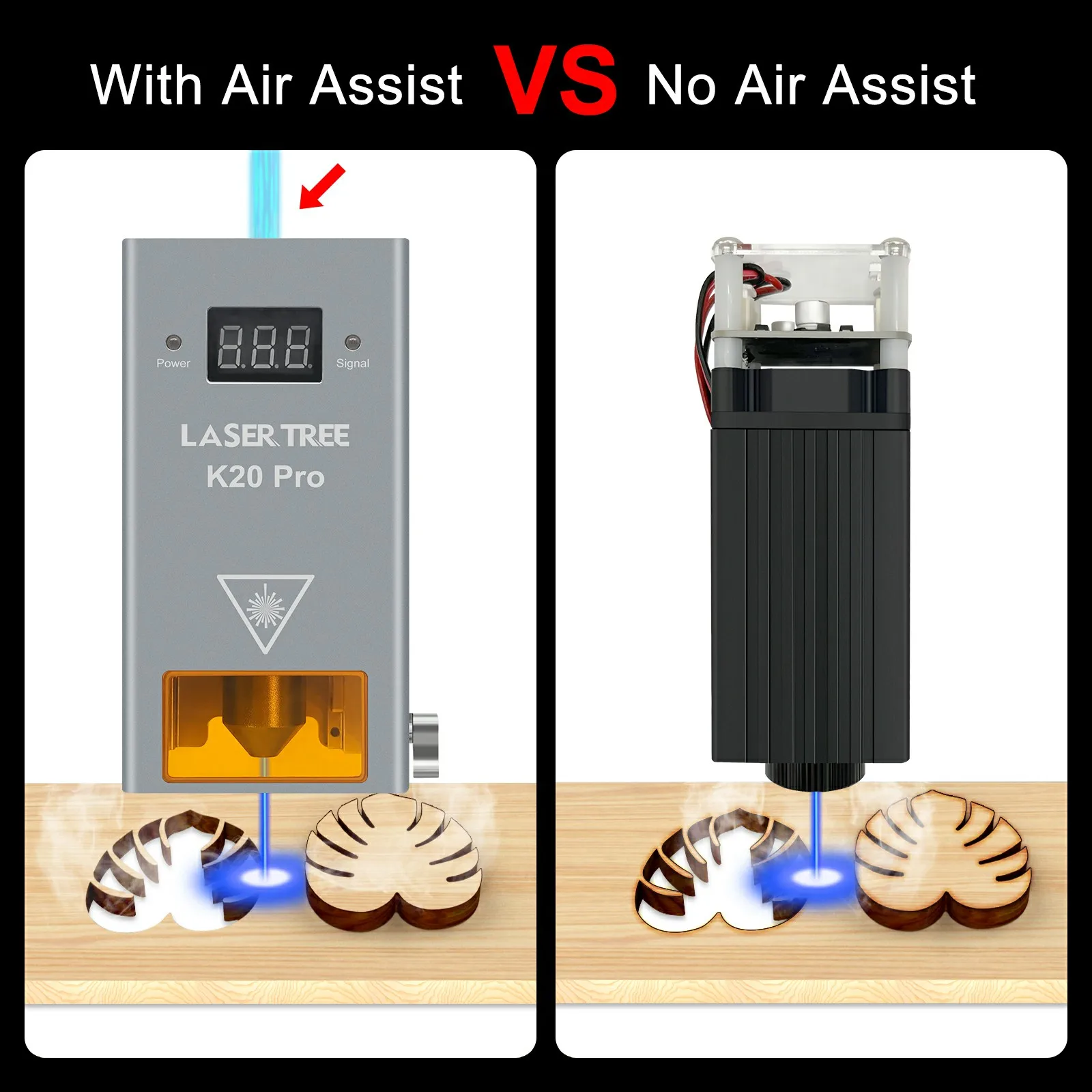

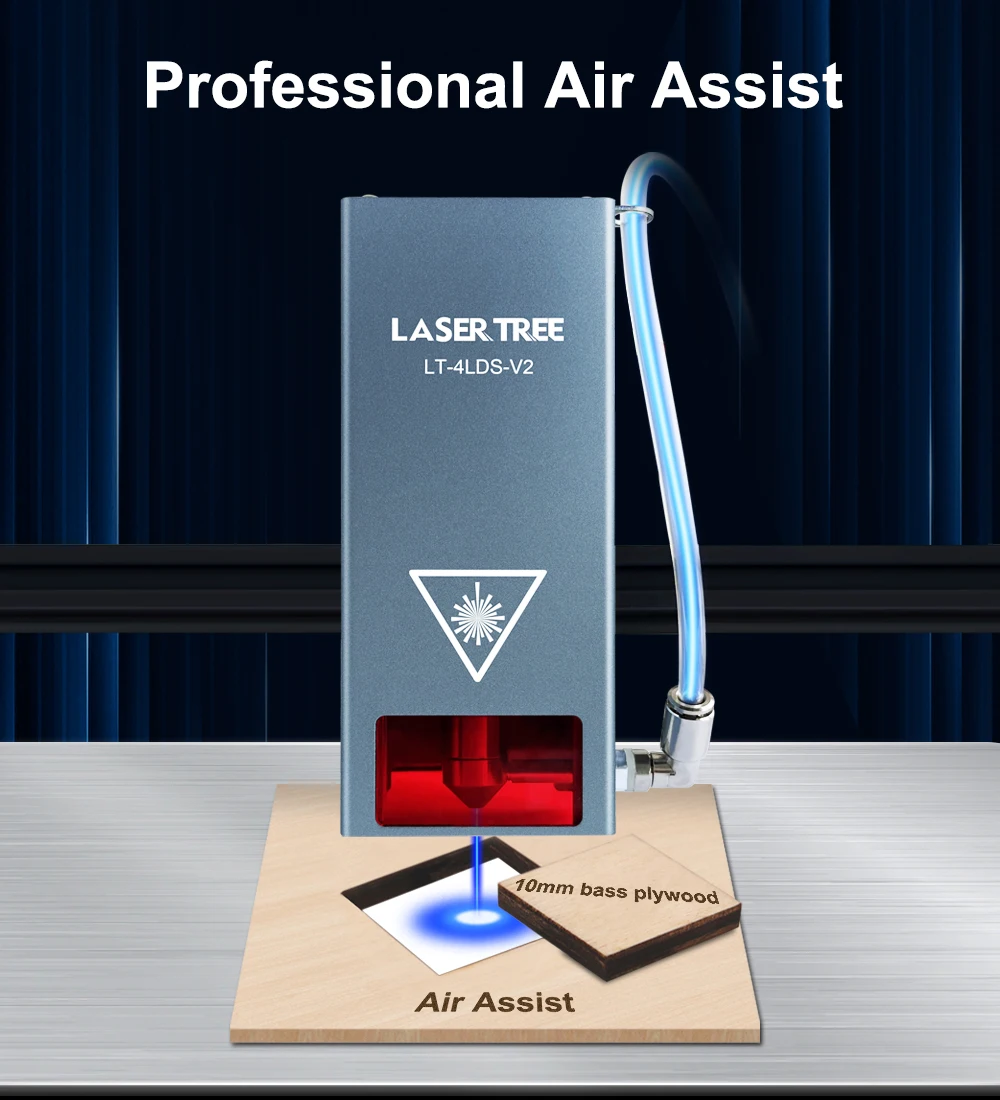

Professional Air Assist
With air assist to get clean-cut edges, and improve cutting performance
Note:
Please ensure that the air pump is turned on before you start cutting.
If not, the smoke will contaminate the lens.

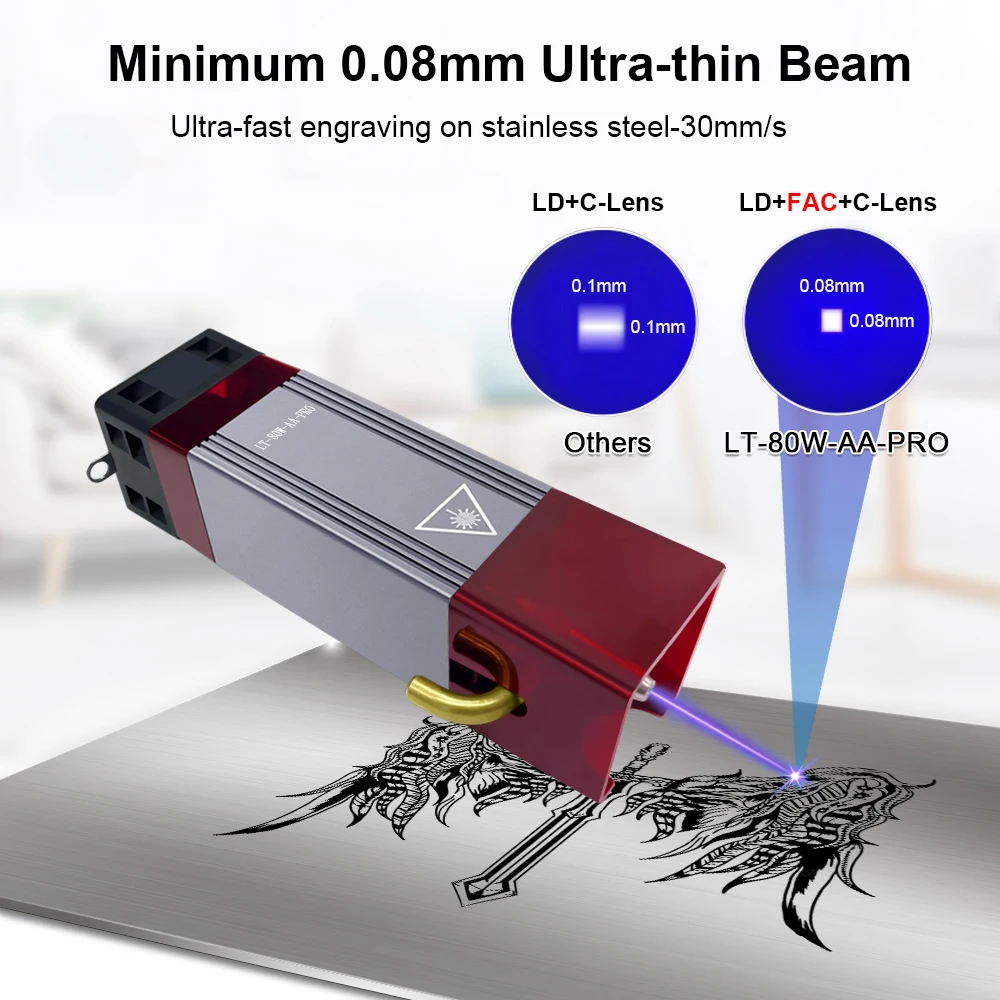

High Precision Engraved Resolution 0.08mm
Use innovative compression technology to make the spot smaller and powerful

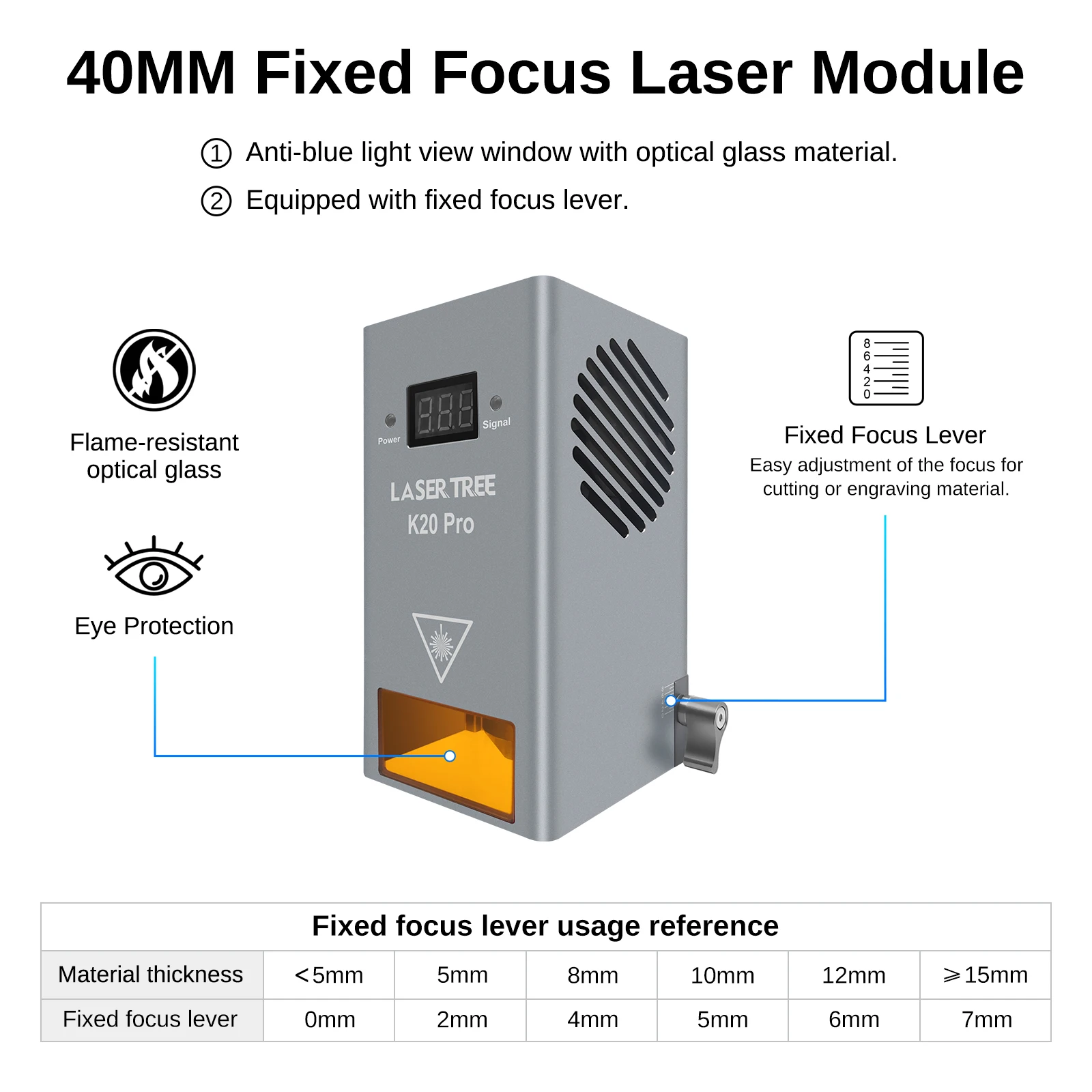

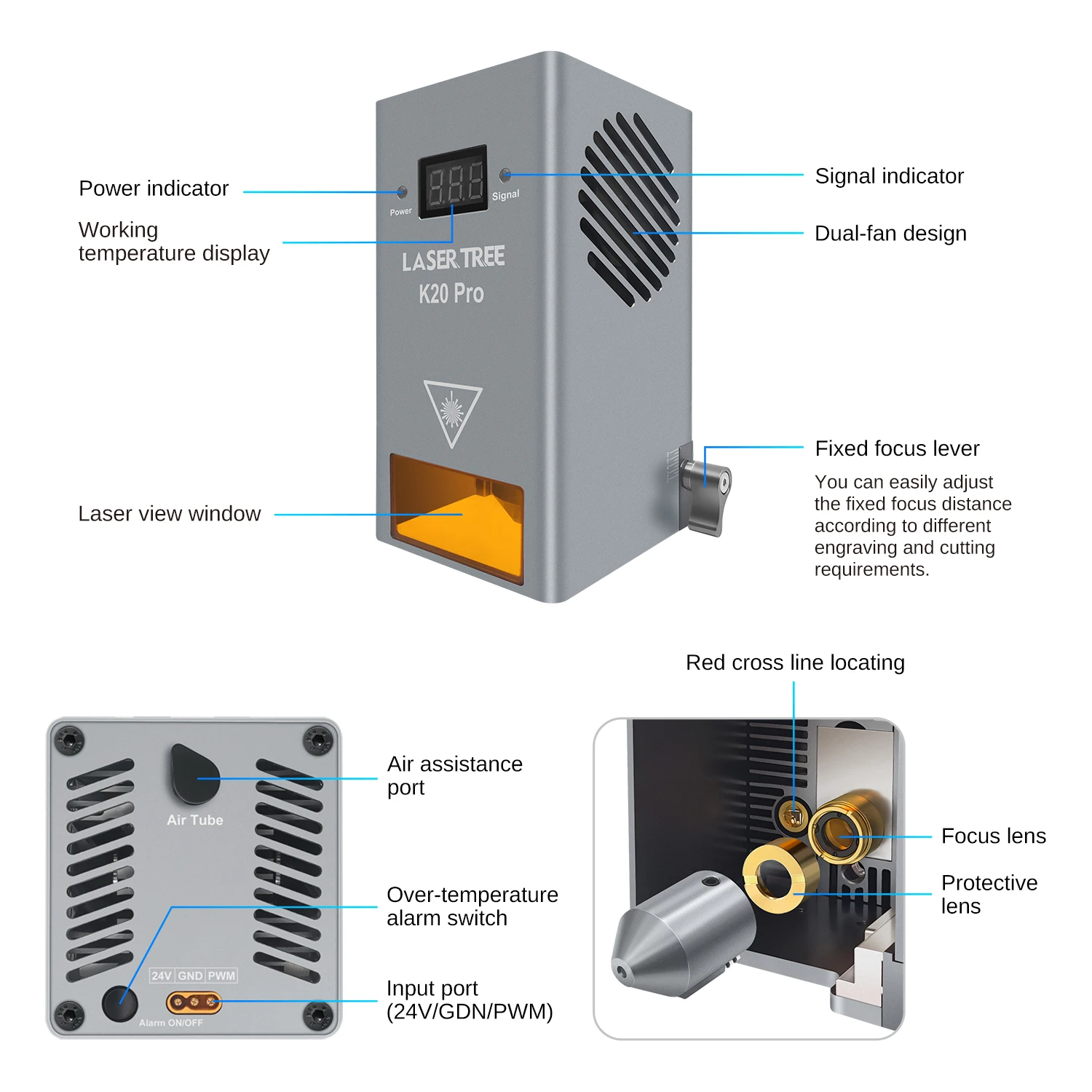

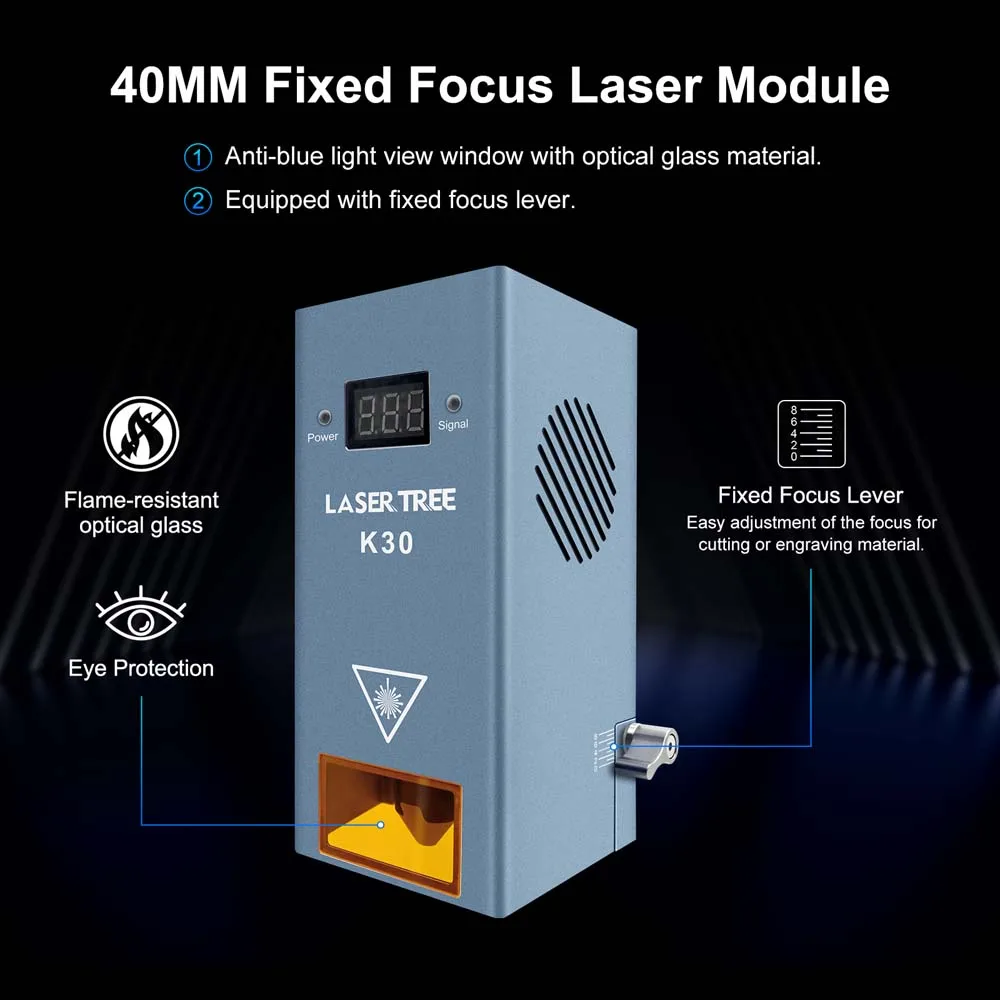

40MM Fixed Focus Laser Module
①Anti-blue light view window.

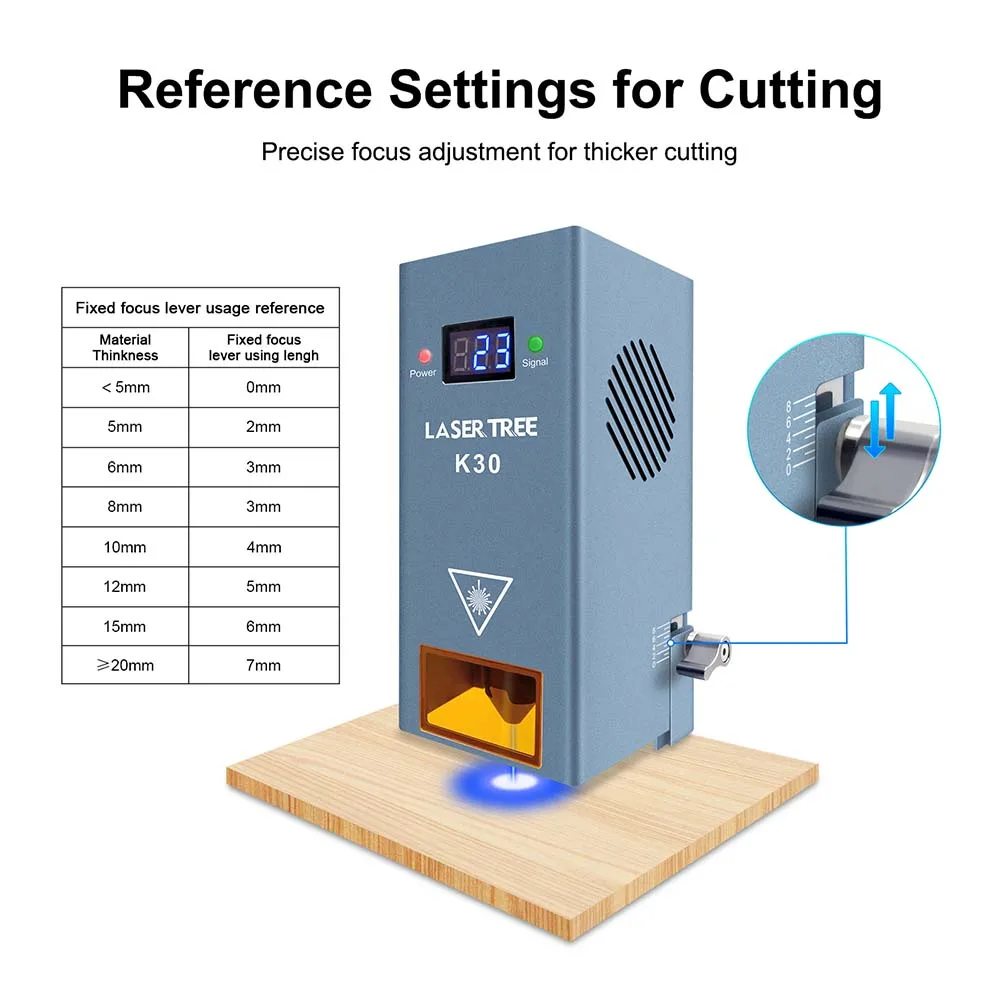

②Equipped with fixed focus lever

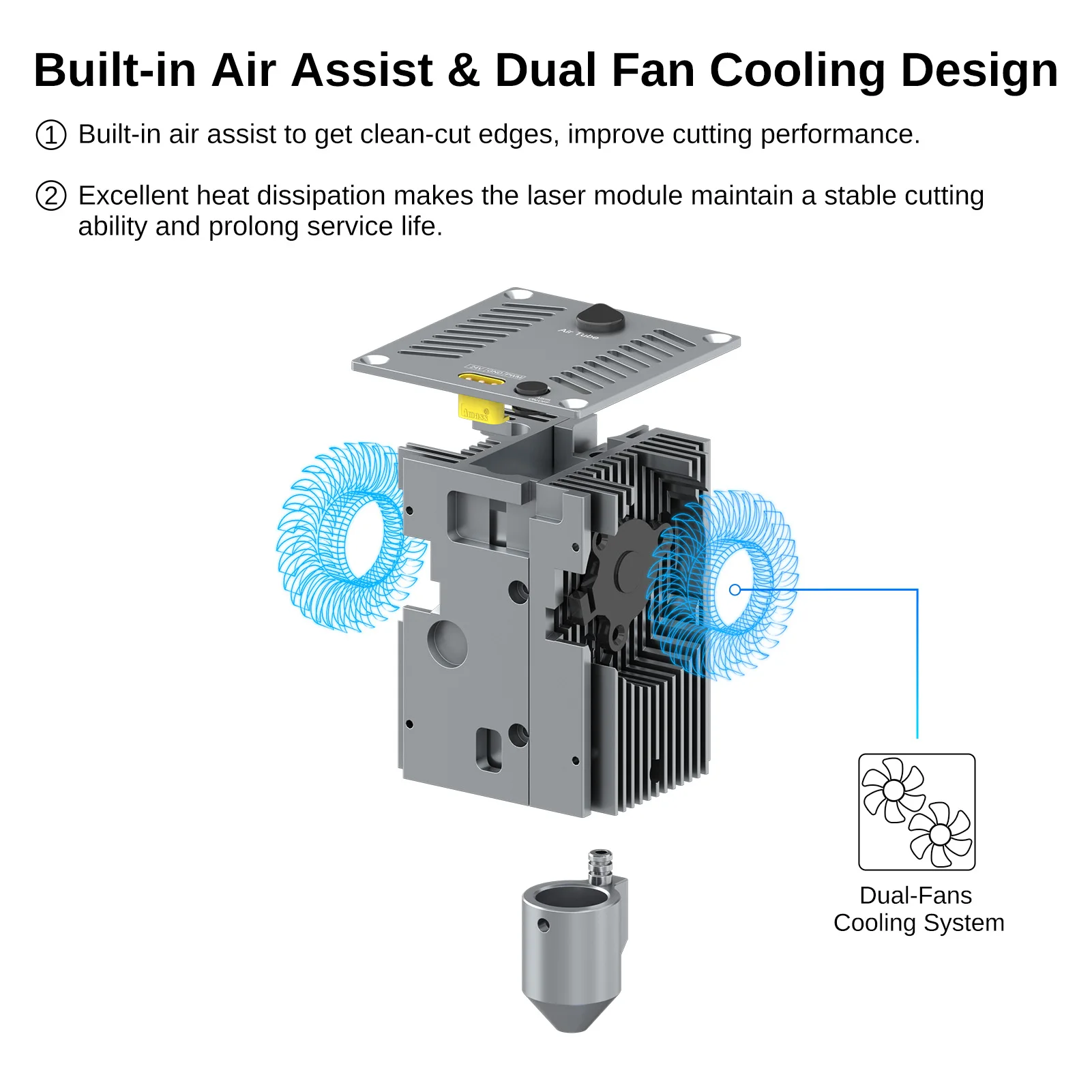

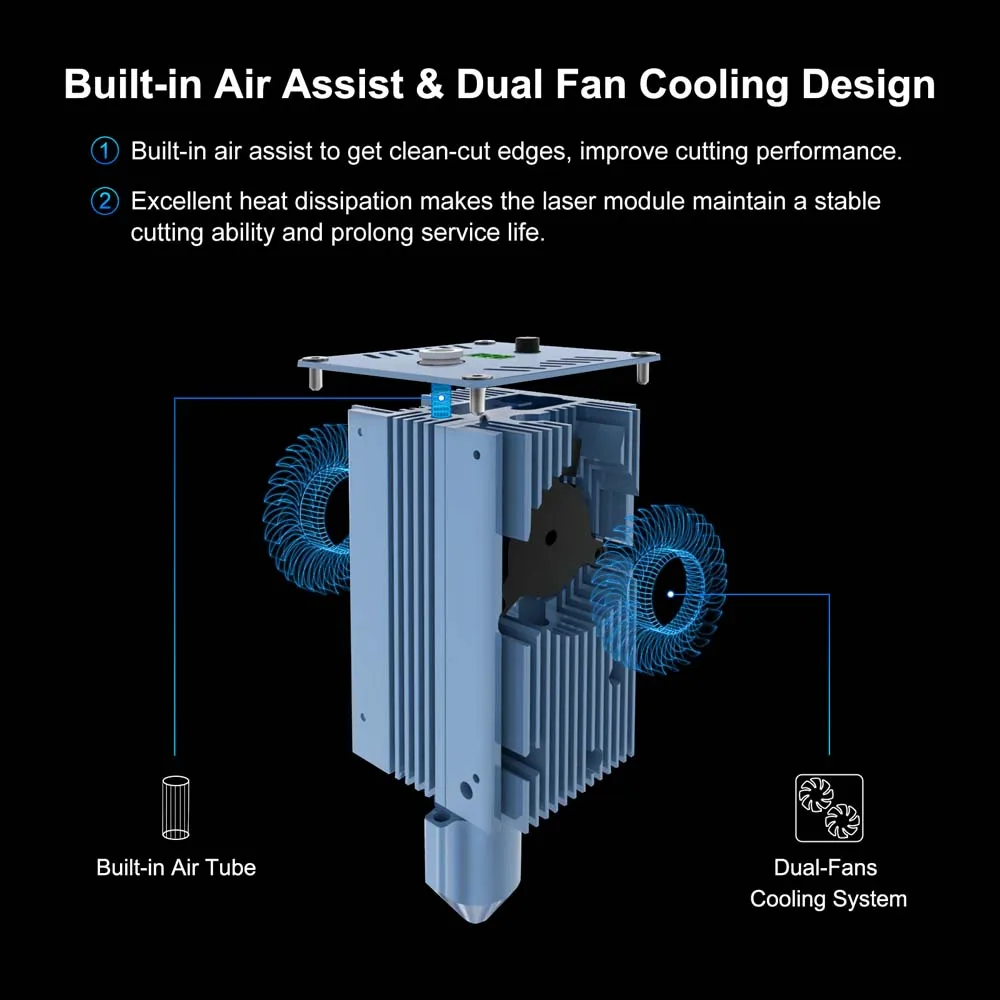

Built-in Air Assist & Dual Fan Cooling Design
① Built-in air assist to get clean-cut edges, improve cutting performance
②Excellent heat dissipation makes the laser module maintain a stablecutting ability and prolong service life.

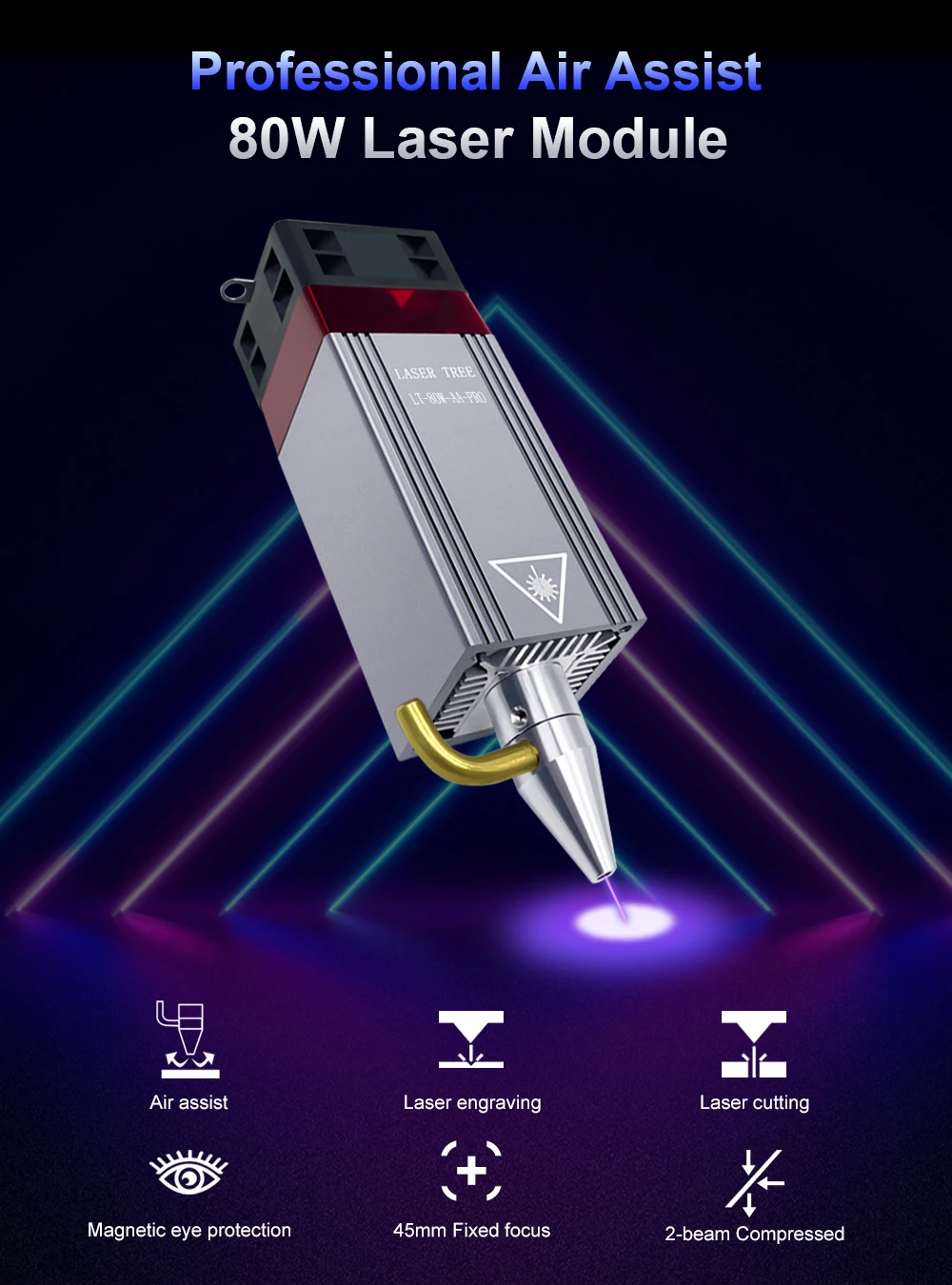

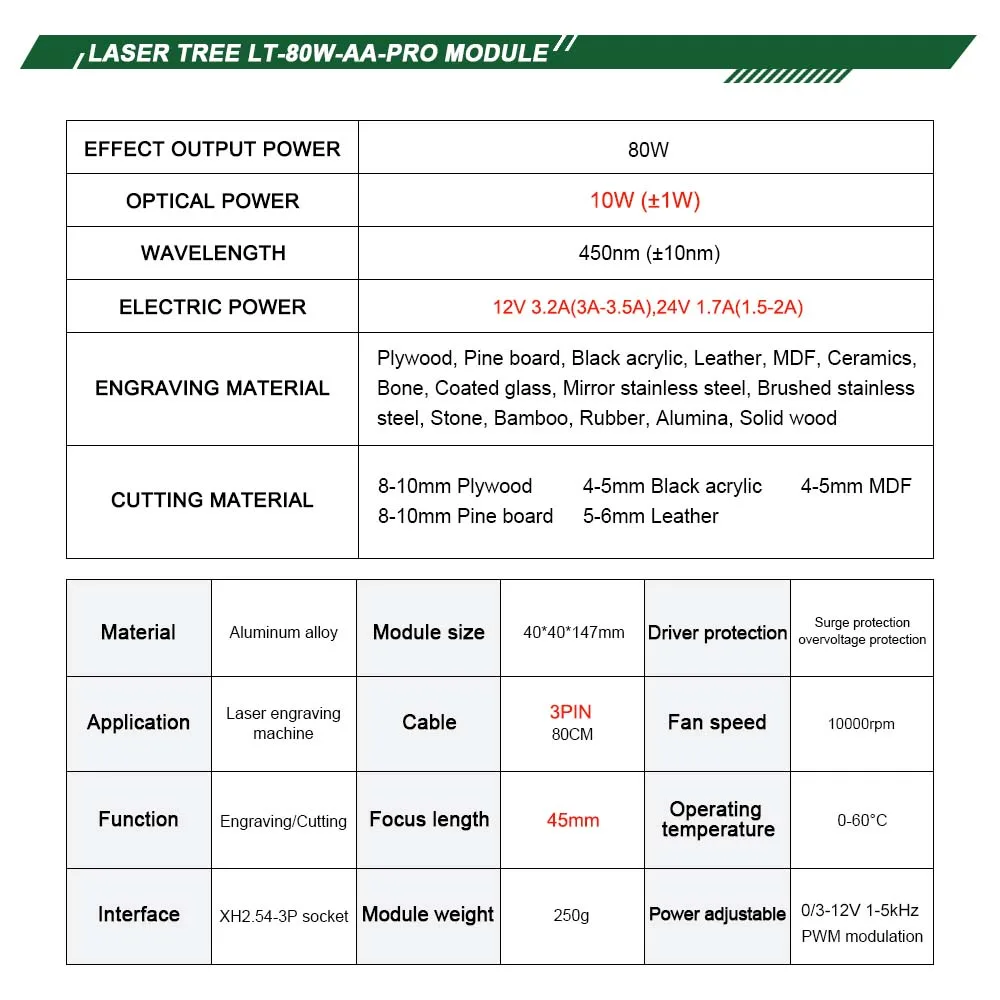

LT-80W-AA-PRO:

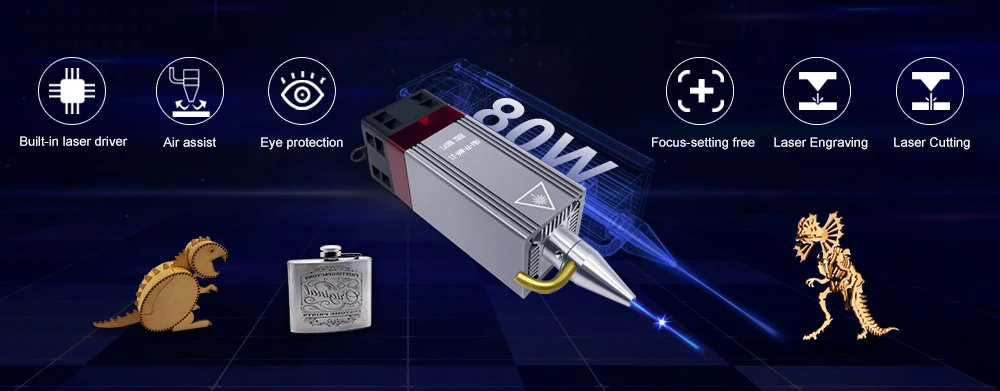

80W Laser Module Head with Air Assist for Laser Engraver
Features:
1. Powerful Air Assist Nozzle---Pro has an upgraded nozzle compared to the previous AA. When using the same air compressor, the upgraded version has a faster jet airflow.
2. Magnetic Protective Cover--- Equipped with a removable magnetic protective cover. Whether it is engraving or cutting, you can use this protective cover to filter blue light, you can work without laser goggles, safe and convenient.

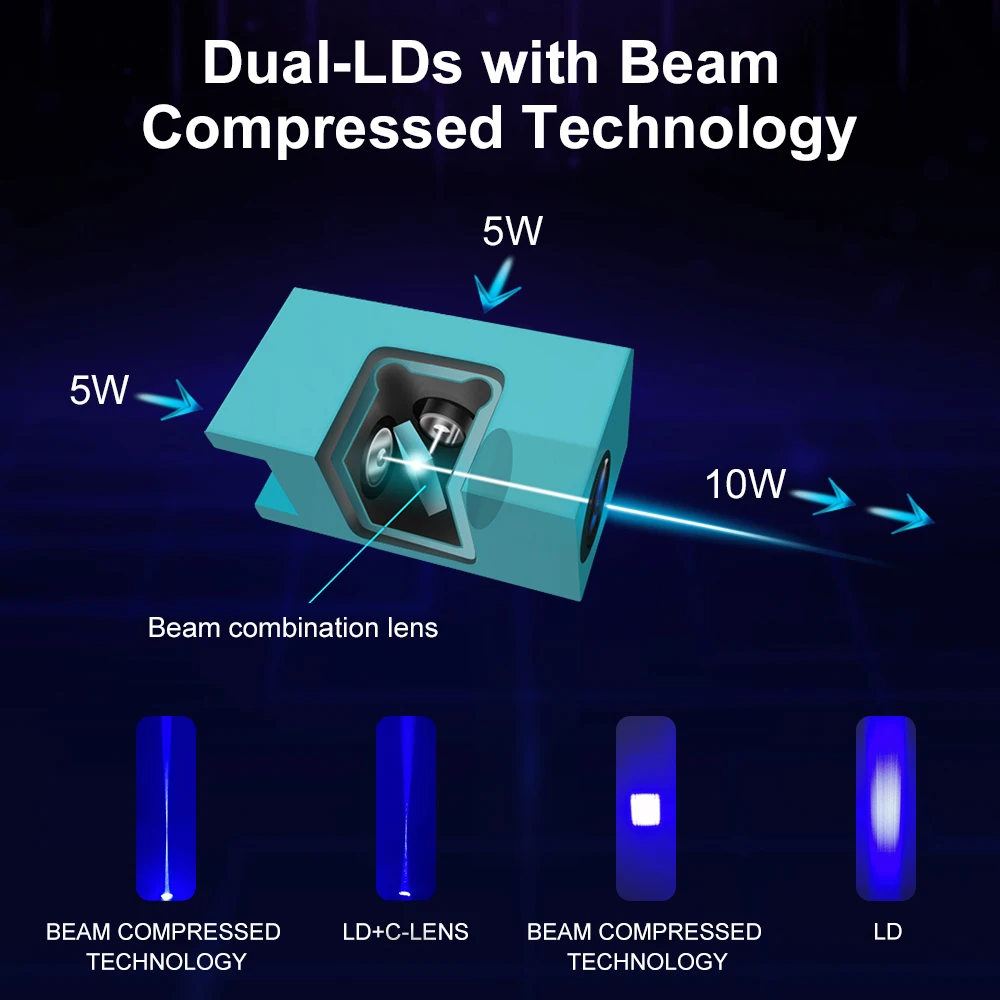

3. 2-Beam compression technology, 10W optical power laser module

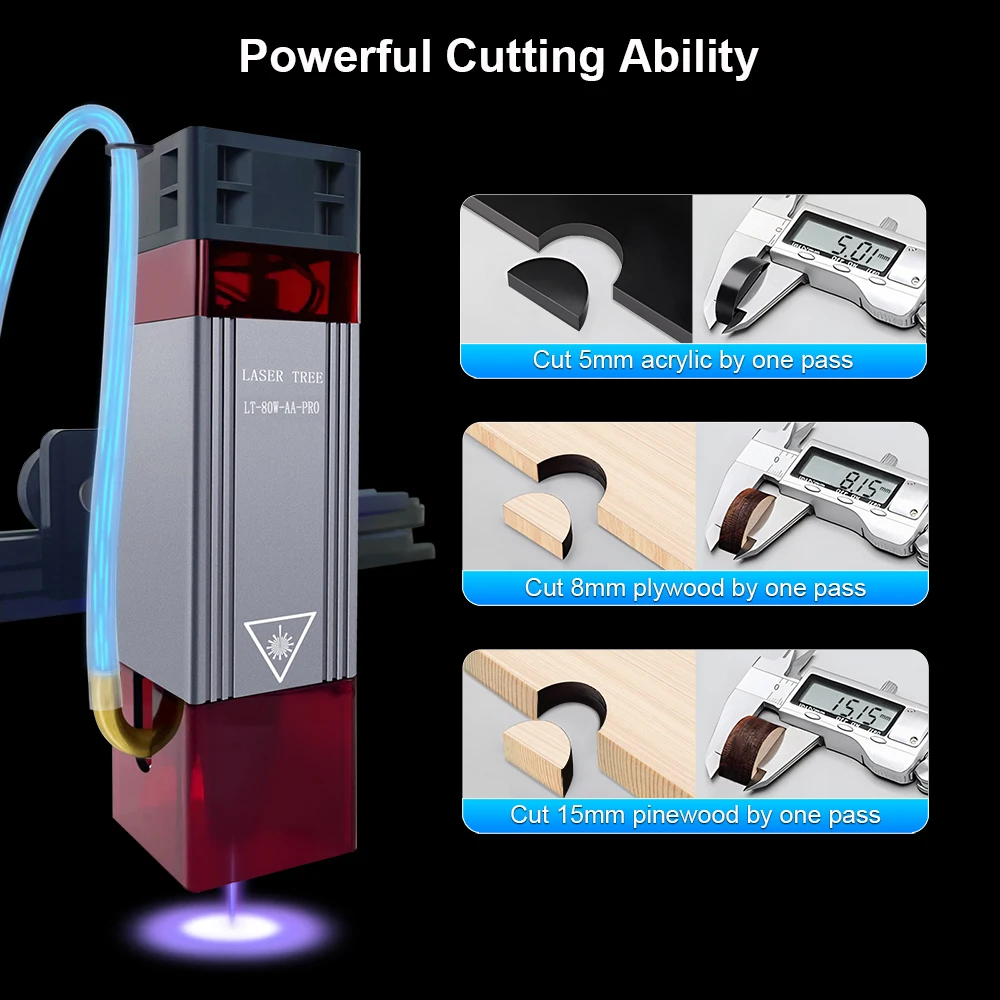

4. Cut through 8mm bass plywood by one pass
5. With professional air assist
6. Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines
To make full use of the air assist, it is recommended to buy together with the air pump.

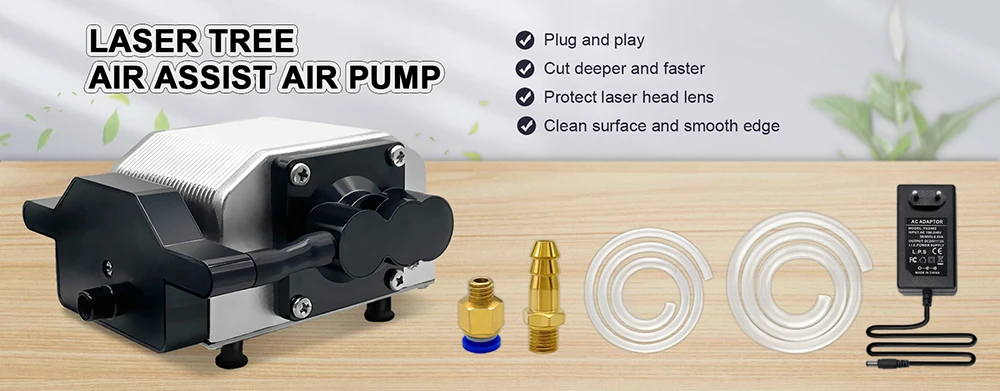

Air Pump:
Description
The air pump is an essential part of the laser module with air assisted.
It provides a steady high-pressure airflow to blow away smoke and obtain clean-cut edges.
In addition, it can improve the efficiency of laser processing and thus save your time.
Features：
1. High-quality materials: metal nozzle, resisting high temperature.
2. Large and steady air output: Adjustable airflow of 0-30L/min, blowing away smoke and residue produced during laser processing, cut deeper、faster and cleaner.
3. Low Noice & Low Vibration: Anti-slip& damping feet keep the body stable and reduce the vibration noise effectively.
4. Rapid Heat Dissipation: Aluminum alloy shell, strong heat dissipation, long lasting and more durable.
5.Wide Compatibility: With two sizes of nozzles (PC6-M8 & PC8-M8)and hoses( φ8x6mm & φ6x4mm), compatible with most of the laser module‘s nozzle interfaces on the market. If it is a special size module air inlet nozzle just need to replace the appropriate air tube and air outlet nozzle.
6. Plug and Play: please select the correct version of EU/US plug.
