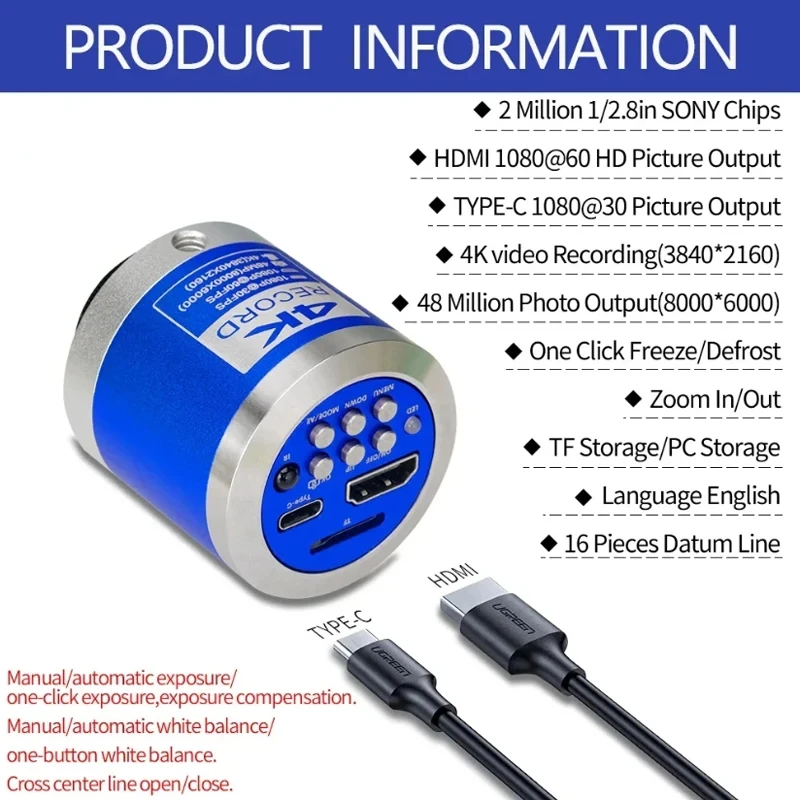

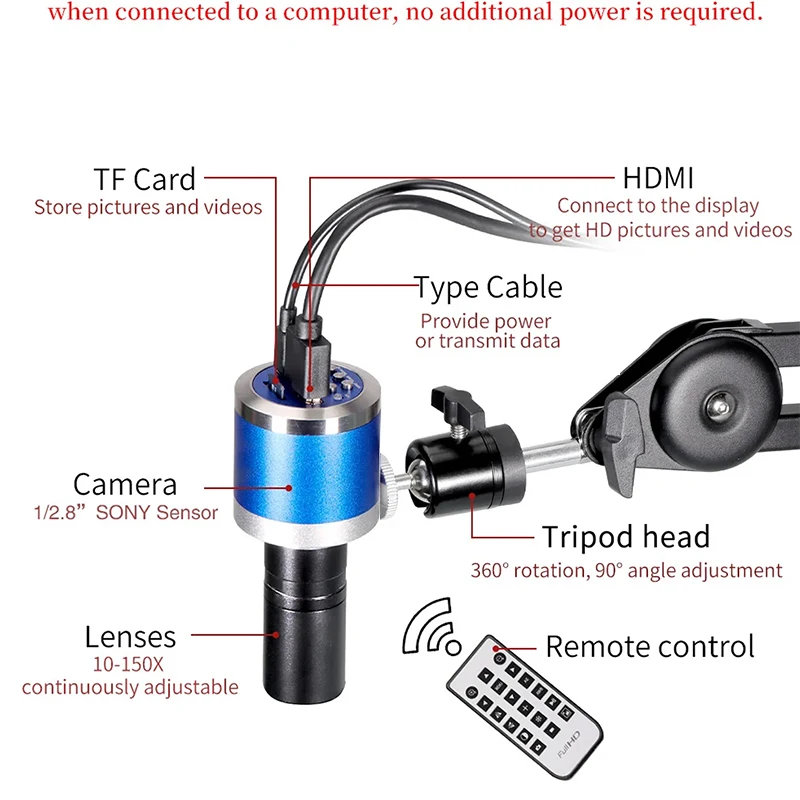

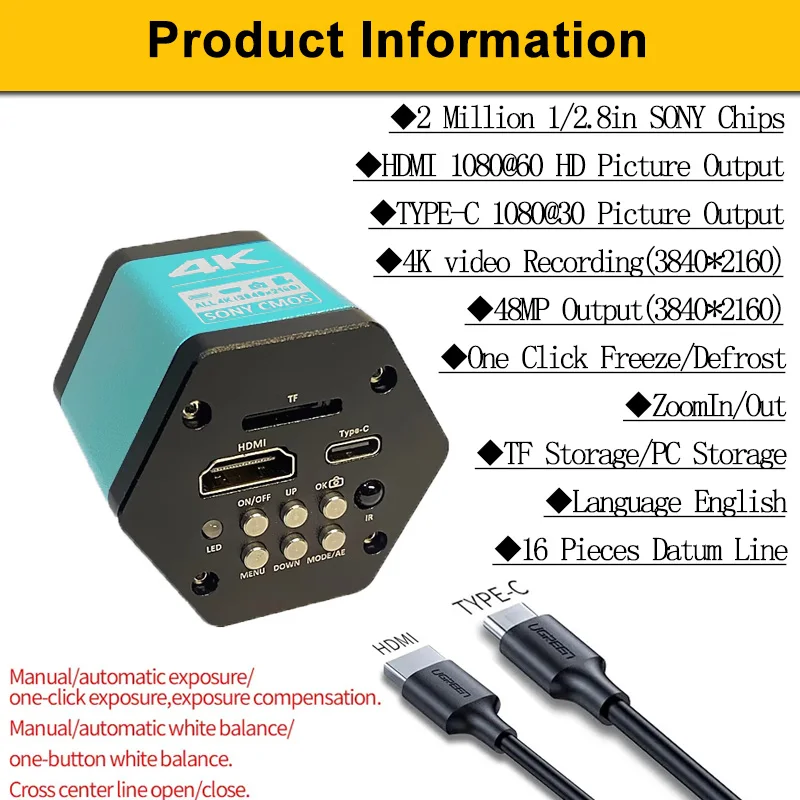

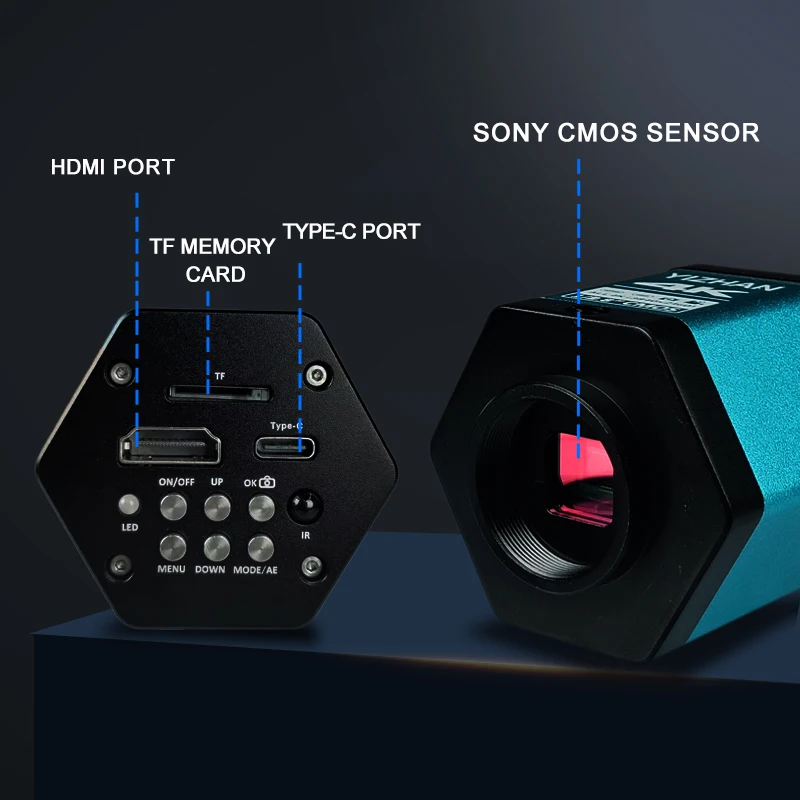

XHU4003 Camera Description:

◆Adopts 2 million pixel imported Sony sensor;
◆Adopts 1/2.8 inch image sensor, with a wider viewing angle than 1/3 inch;
◆HDMI 1080P 60 frame image output;
◆TYPE-C driver-free output 1080P 30 frames of image output;
◆4K video recording;
◆48 million photos, JPG format, photo size 8000x6000;

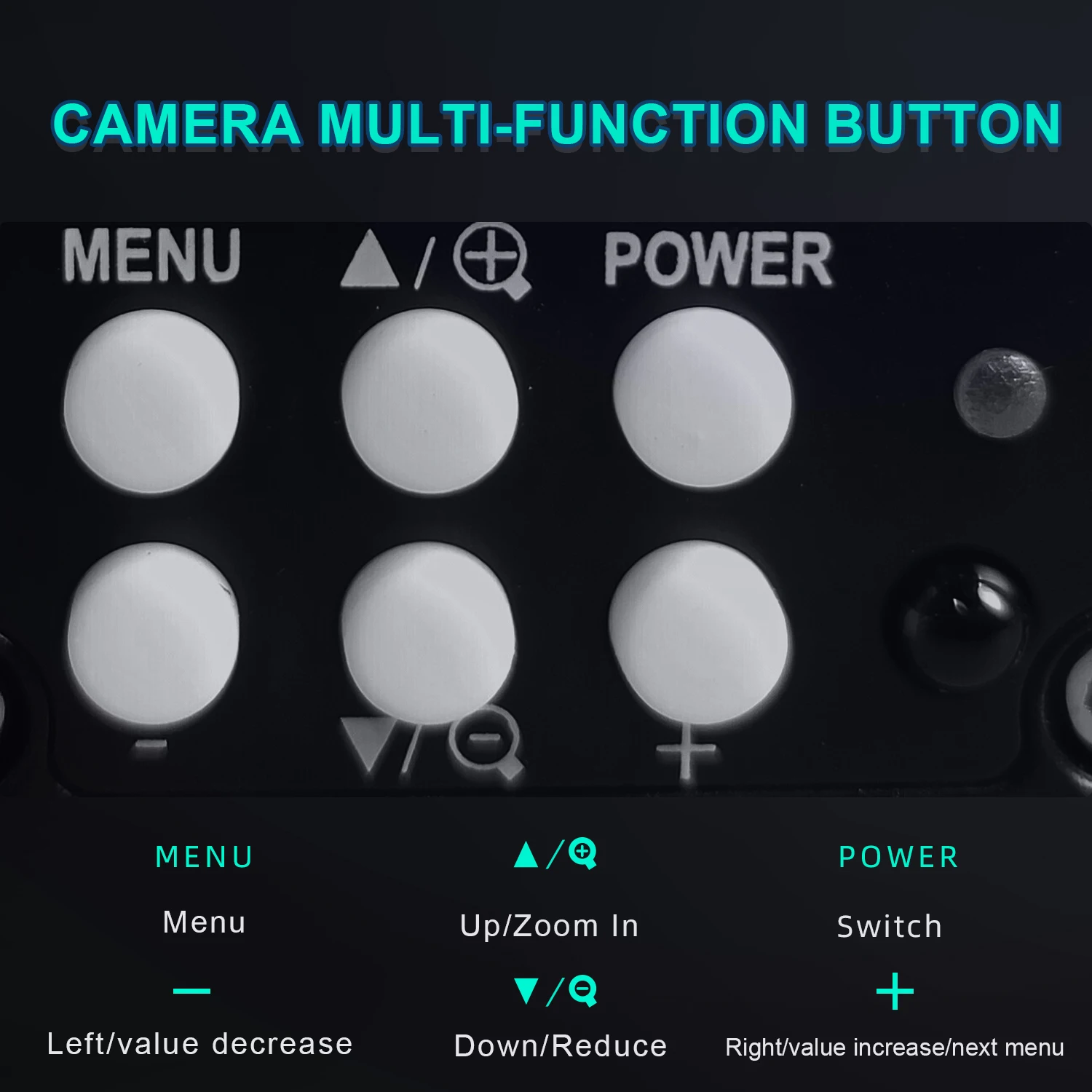

◆One-click freeze/thaw function;
◆48 million pixel photos and 1080P video recording;
◆Electronic zoom function;
◆Support manual/automatic exposure/one-click exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance/one-click white balance, red, green, blue adjustable;
◆Provide 16-line function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;

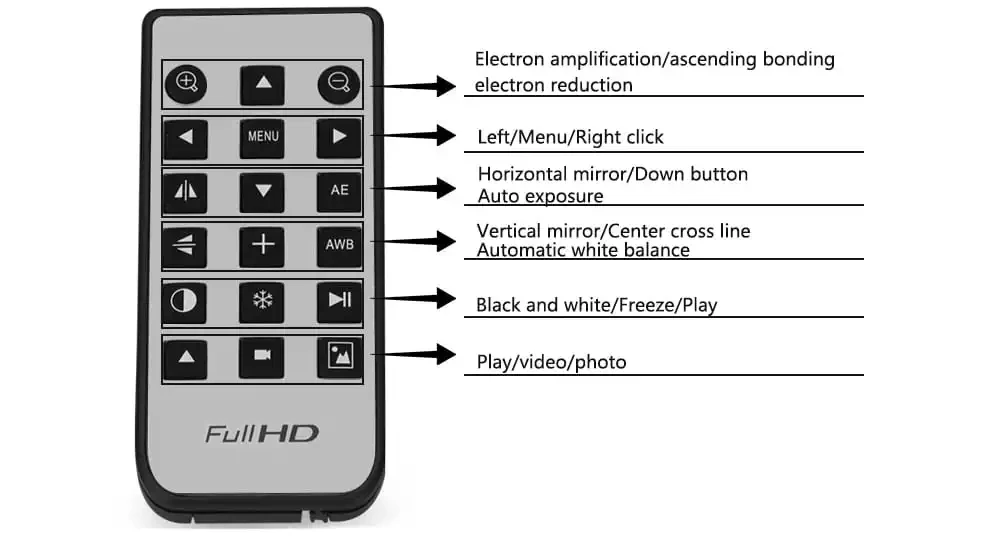

◆Support remote control operation, no shaking photos and clearer images;
◆Support Chinese, Traditional Chinese, English menu languages;
◆Support shutdown setting parameter saving;
◆Aluminum alloy shell processed by CNC precision milling technology;

Specifications:
Sensor: 1/2.8 Sony 2 million pixel imported sensor
Pixel size: 2.9µm × 2.9µm
HDMI output: 1920*1080 60 frames
TYPE-C output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Lens interface: C/CS
Exposure: automatic/manual/one-key exposure
Exposure compensation: support
White balance: automatic/manual/one-key white balance, support RGB adjustable
Storage: maximum support 64GB
Input voltage: DC 5V
Line: support 16 straight/vertical lines, color, thickness and position adjustable
Center line: support
Menu language: English/Chinese/Traditional Chinese
Remote control: support remote control operation
Net weight: 150g
Gross weight: 350g
Product size: 68*68*47mm
Packaging size: 145*130*70mm

Package includes:
1*XHU4003 microscope camera
1*Adapter
1*Type C data cable
1*HDMI cable
1*remote control
1*plastic ring
1*instruction manual

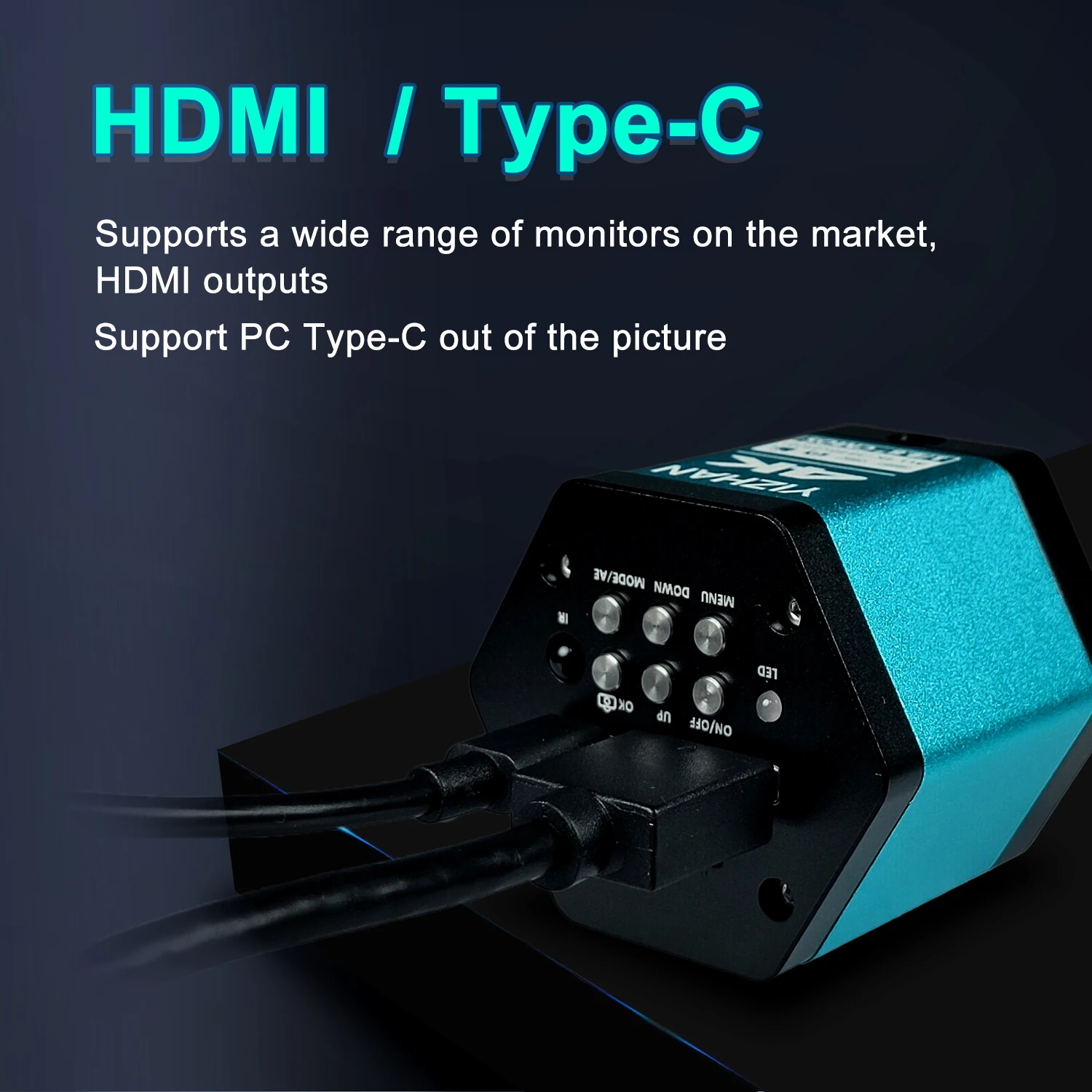

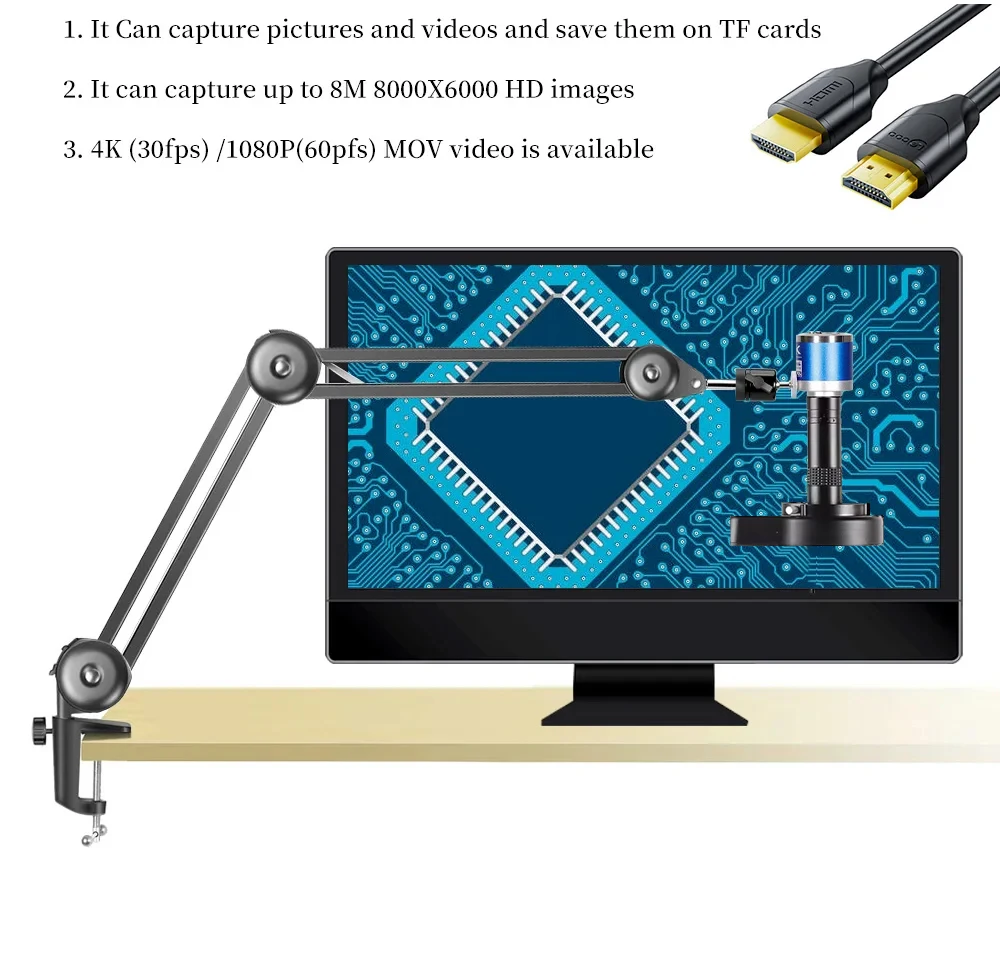

HDMI connects to the Display：

1. It Can capture pictures and videos and save them on TF cards
2. It can capture up to 8M 8000X6000 HD images
3. 4K (30fps) /1080P(60pfs) MOV video is available

USB Connection to computer：

1. Install the ImageView on your computer
2. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.

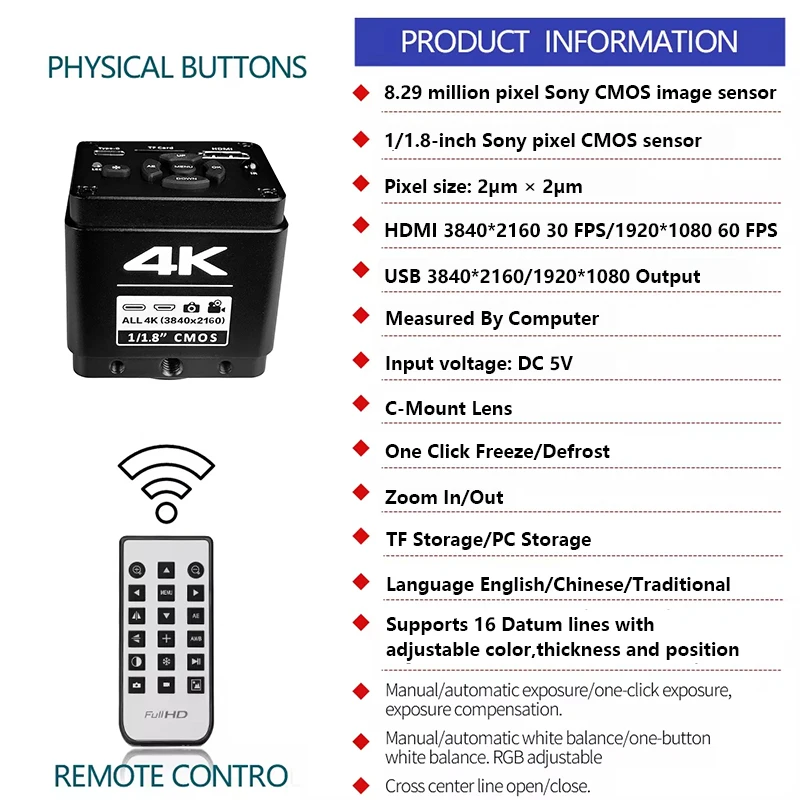

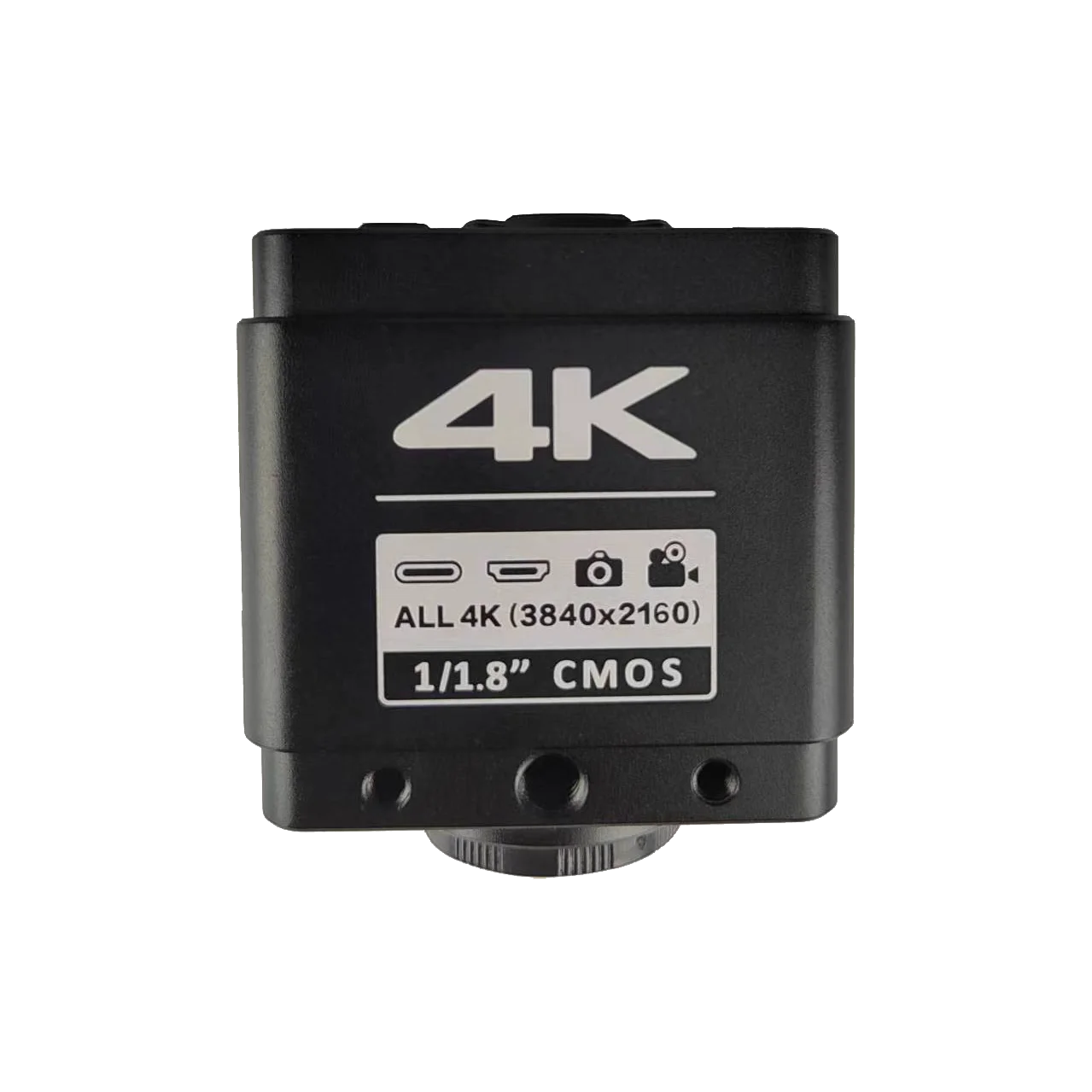

XH3011 Camera Description:

◆Using 8.29 million pixel Sony CMOS image sensor;
◆Using 1/1.8 inch image sensor;
◆HDMI 3840*2160 30 frames/1080P 60 frames image output;
◆USB2.0 driver-free output 3840*2160 30 frames of image output;
◆4K video recording;
◆4K photo taking
◆One-button freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 16-line drawing function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking when taking pictures, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Sturdy metal shell;

Specifications:
Sensor: 1/1.8-inch Sony 8.29 million pixel CMOS sensor
Pixel size: 2µm × 2µm
HDMI output: 3840*2160 30 frames/1920*1080 60 frames
USB output: 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
Lens interface: C/CS
Exposure: automatic/manual
Exposure compensation: support
White balance: automatic/manual, support R, G, B adjustable
Storage: maximum support 64GB
Input voltage: DC 5V
Line drawing: support 16 straight lines, color, thickness and position adjustable
Center line: support
Menu language: English/Chinese/Traditional
Remote control: support
Packaging size: 145*130*70mm

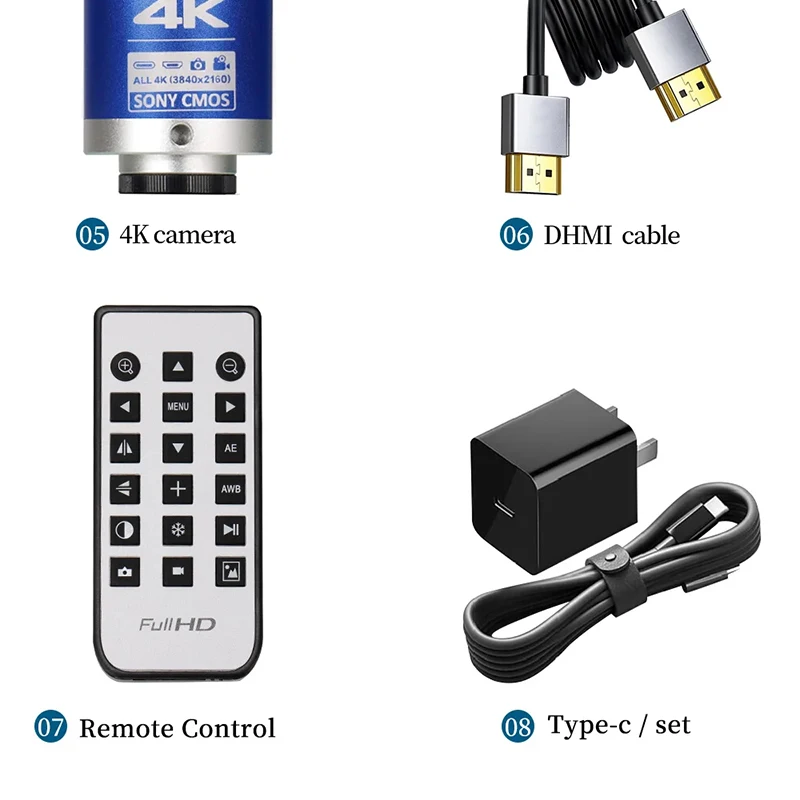

Package includes:
1*XH3011 camera
1*US/EU plug
1*HDMI cable
1*Type-C cable
1*remote control

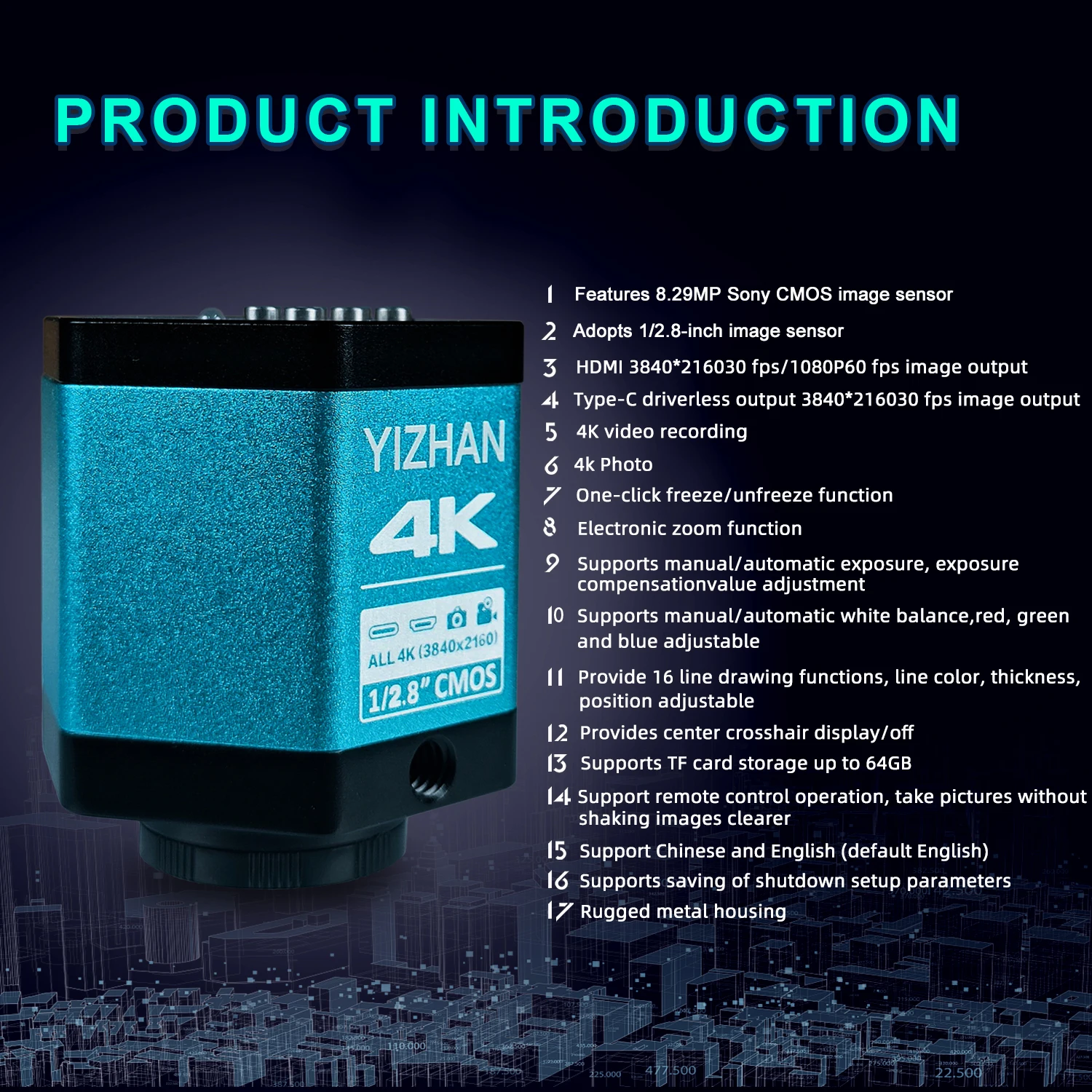

XHU4006 Camera Description:

◆Adopt 8.29 million pixel Sony CMOS image sensor
◆Adopt 1/2.8 inch image sensor;
◆HDMI 3840*2160 30 frames/1080P 60 frames image output;
◆Type-C 2.0 driver-free output 3840*2160 30 frames image output;
◆4K video recording;
◆4K photo taking;
◆One-key freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment:
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 16 line drawing function, line color, thickness, position adjustable:
◆Provide center cross line display/off;
◆Support TF card storage, up to 64GB;
◆Support remote control operation, no shaking when taking photos, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support power-off setting parameter saving;
◆Sturdy metal shell;

Camera specifications:
Sensor: 1/2.8-inch Sony 8.29 million pixel CMOS sensor
Pixel size: 1.45μm X1.45μm
HDMI output: 3840*2160 30 frames/1920*1080 60 frames
Type-C output: 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
Recording: 4K video recording
Photographing: 4K photographing
Lens interface: C/CS
Exposure: automatic/manual
Exposure compensation: support
White balance: automatic/manual, support R, G, B adjustable
Storage: maximum support 64GB
Input voltage: DC 5V
Line drawing: support 16 straight lines, color, thickness and position adjustable
Center line: Supported
Menu language: English/Chinese/Traditional
Remote control: Supported
Net weight: 120g
Gross weight: 400g
Product size: 48*48*60mm
Packaging size: 145*130*70mm

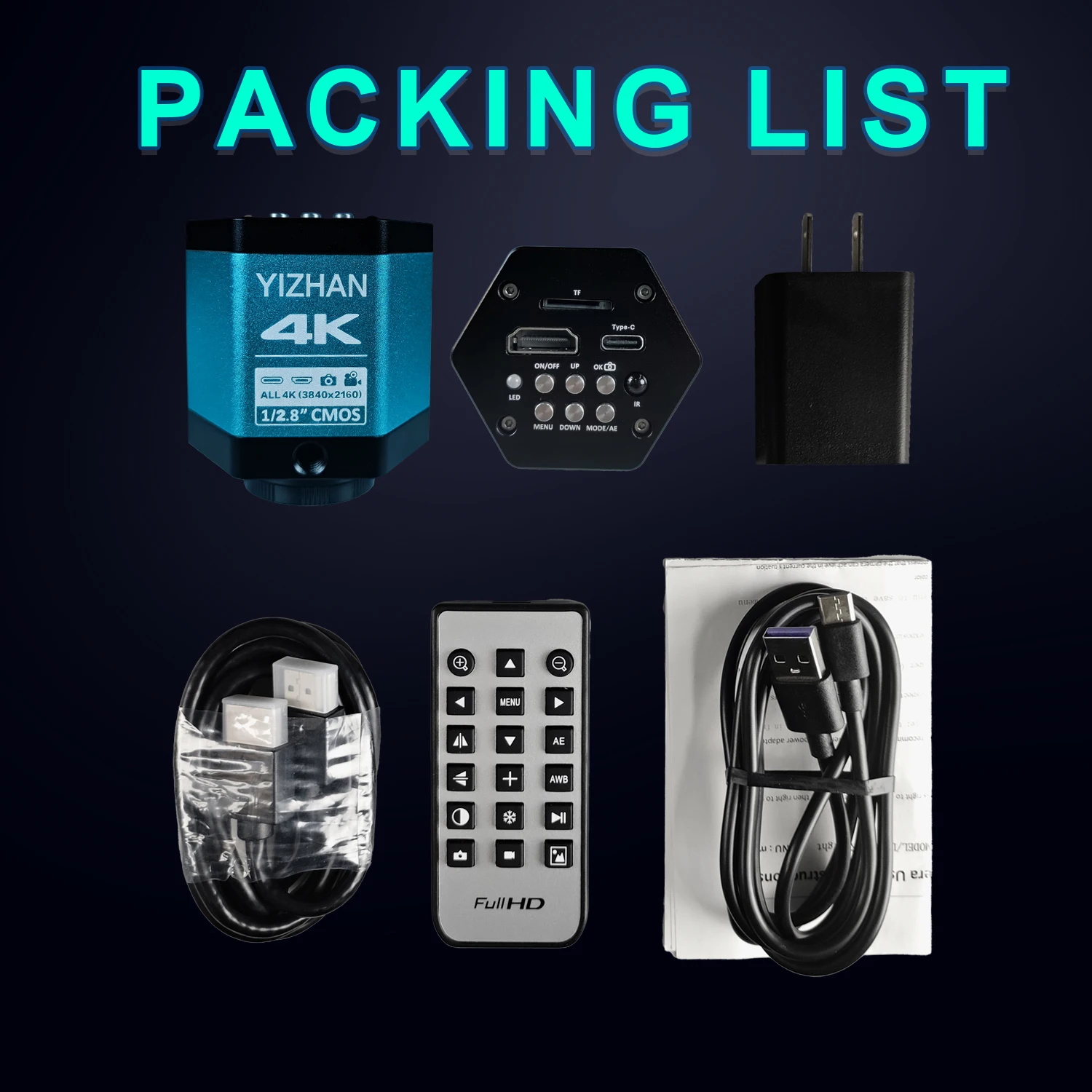

Package includes:
1*XHU4006 camera
1*HDMI data cable
1*Type-C output cable
1*Remote control
1*Adapter
1*Instruction manual

XHU4002 Camera Description:

◆Adopt 2 million pixel imported Sony CMOS image sensor;
◆Adopt 1/2.8 inch image sensor, the viewing angle is wider than 1/3 inch;
◆HDMI 1080P 60 frame image output;
◆USB2.0 driver-free output 1080P 30 frames of image output;
◆4K video recording;
◆Maximum 4800MP photo taking, JPG format, photo size 4608x3456;
◆One-button freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 8-line drawing function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking when taking photos, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Sturdy metal shell;

Specifications:
Sensor: 1/2.8-inch imported Sony CMOS image sensor
Size: 2.9µm × 2.9µm
HDMI output: 1920*1080 60FPS
USB Output: 1920*1080/30, 1280*720/30, 640*480/30, 320*240/30 (MJPG)
Camera interface: C/CS
Exposure: Auto/Manual
Exposure compensation: Support
White balance: Auto/Manual, RGB adjustable
Storage: Maximum support 64GB
Input voltage: DC 5V-12V
Line: Support 8 straight lines with adjustable color, thickness and position
Center line: Support
Menu language: English/Chinese
Remote control: Support remote control operation
Model: XHU4002
Color: Blue
Net weight: 250g
Gross weight: 450g
Product size: 60*60*70mm
Packaging size: 145*130*70mm
Output interface: HDMI USB
Resolution: 1920*1080P
Remote control: Yes

Package includes:
1*XHU4002 microscope camera
1*Adapter
1*HDMI cable
1*USB communication interface cable
1*Remote control
1*Instruction manual

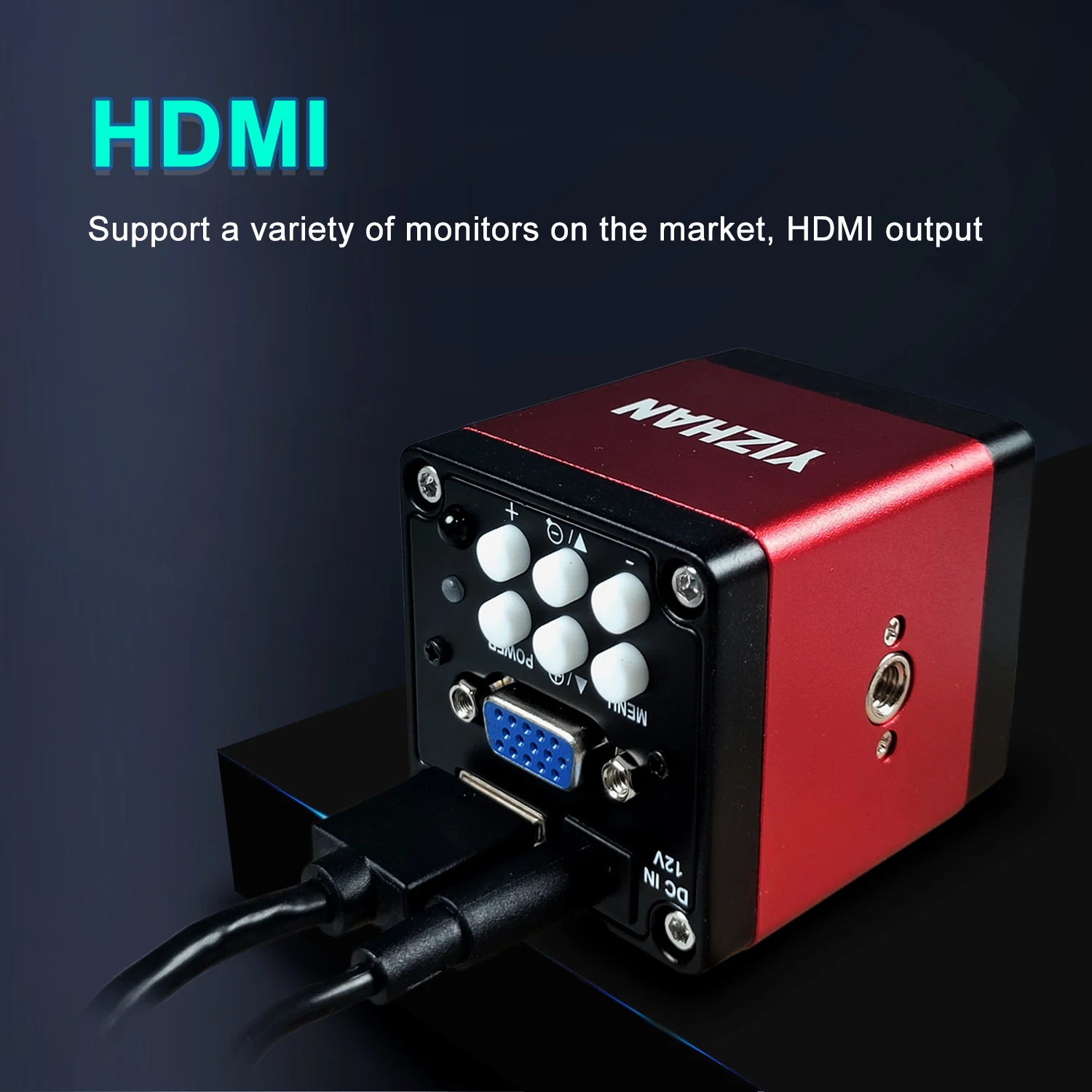

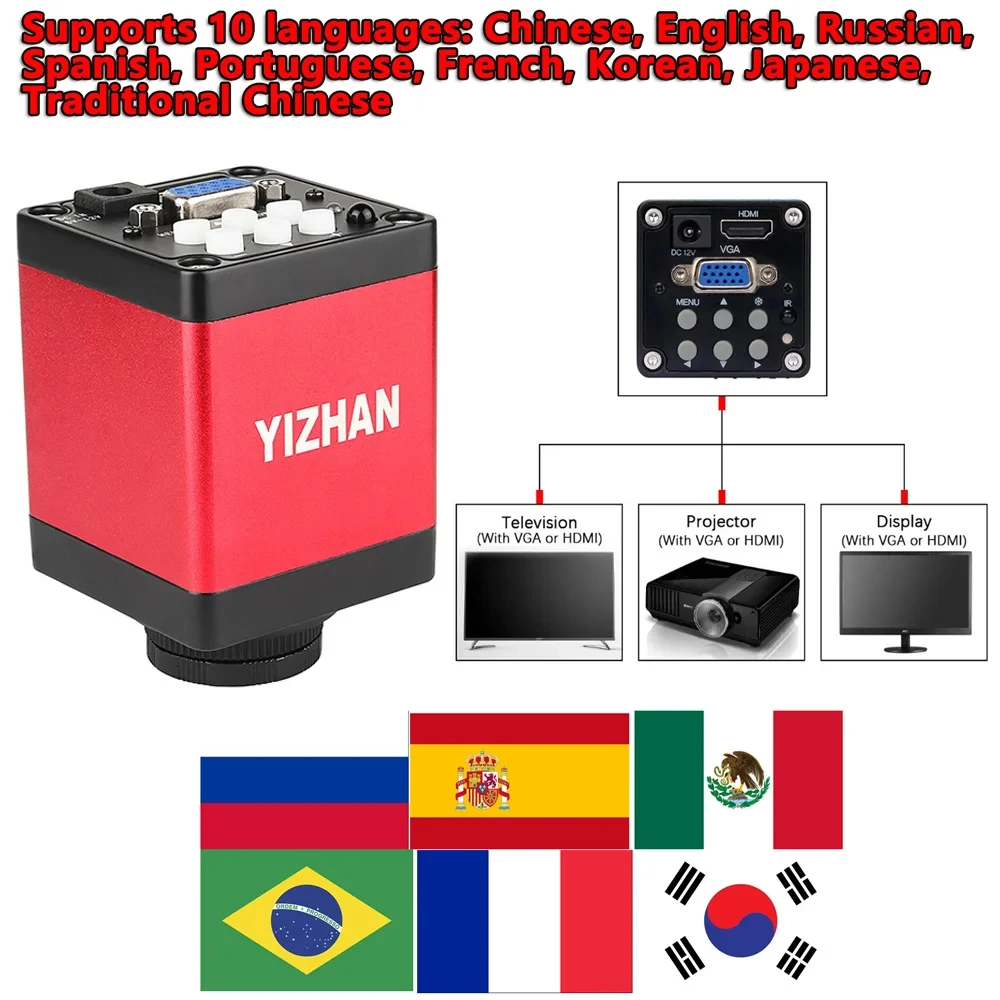

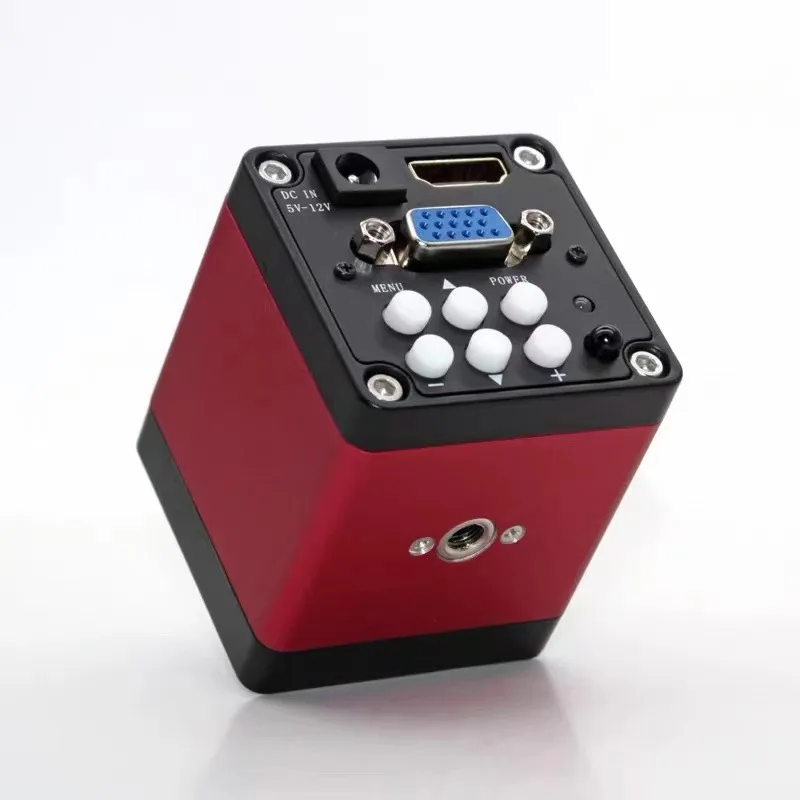

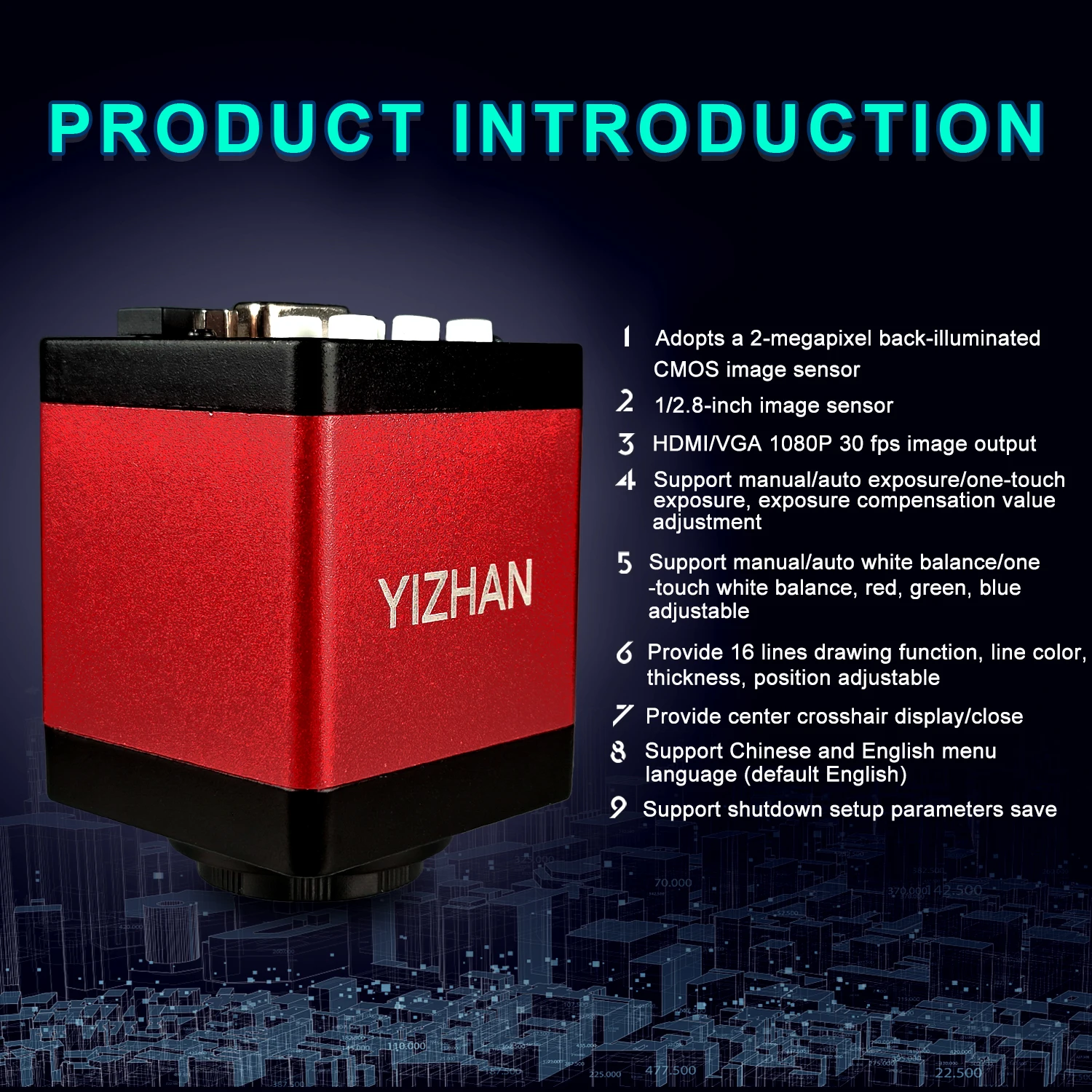

XVH2003 Camera Description:

◆Using 2 million pixel back-illuminated CMOS image sensor:
◆Using 1/2.9 inch image sensor;
◆HDMI/VGA 1080P 30 frames image output;
◆Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance/one-key white balance, red, green, blue adjustable;
◆Provide 8 line drawing functions, line color, thickness, position adjustable;
◆Provide center cross line display/off;
◆Support Chinese and English menu languages (default English); 10 languages
◆Support shutdown setting parameter saving;

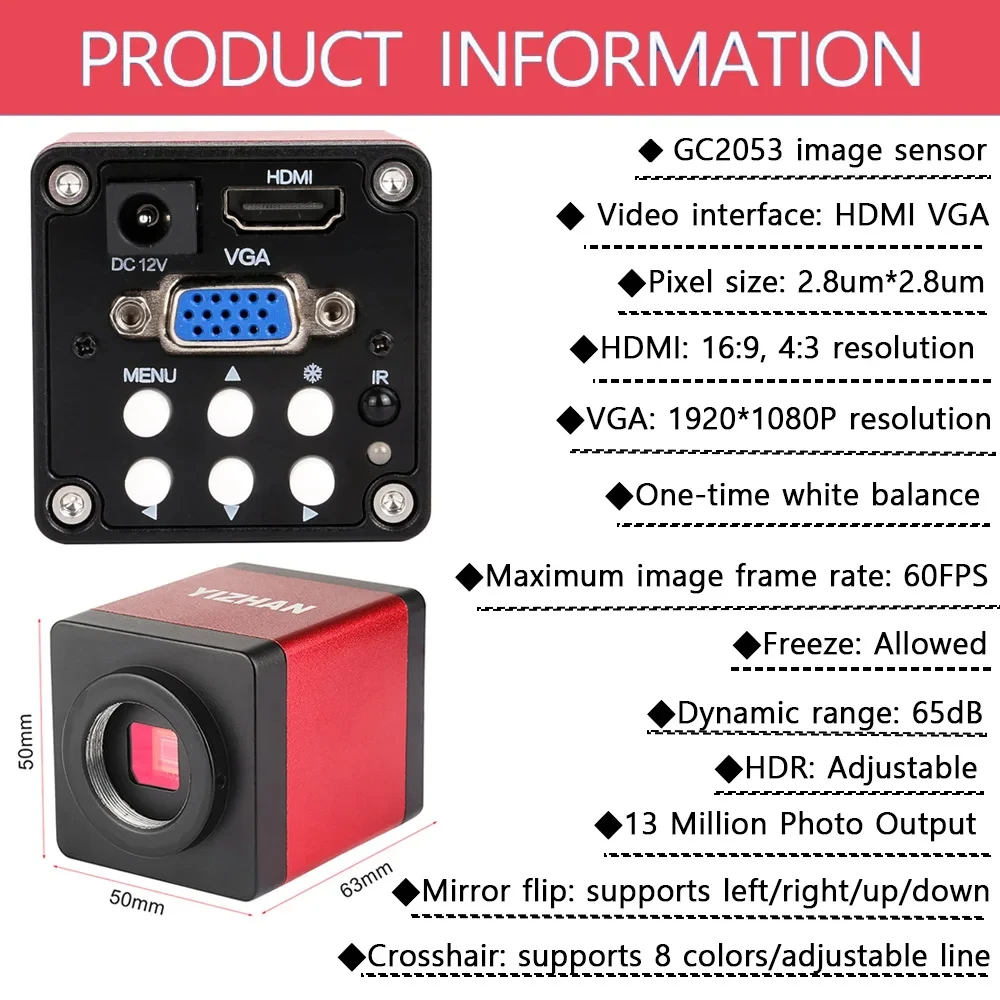

Specifications:
Sensor: GC2053
Dimensions: 75*50*50mm
Video interface: HDMI VGA
Lens: CS
Operating voltage: 12V
Operating current: 150mA
Optical format: 1/2.9''
Pixel size: 2.8µm*2.8µm
TV lines: 1200TV lines
Maximum image frame rate: 60FPS
Scanning mode: progressive scan
Shutter mode: electronic shutter
Dynamic range: 65dB
Radio signal-to-noise ratio: 45dB
OSD language: English/Chinese
AWB mode: one-time white balance/manual/auto
HDR: adjustable
Crosshair: supports 8 colors/line width adjustable
Black and white: allowed
Negation: allowed
Mirror flip: supports left/right/up/down
Freeze: allowed
Compare: allowed
Manually set brightness, contrast, sharpness, saturation: allowed
Output display resolution: HDMI: 16:9, 4:3 VGA: 1920*1080P or above
Remote control: Yes
Features: Remote control function

Package includes:
1*XVH2003 microscope camera
1*power cord
1*remote control
1*instruction manual

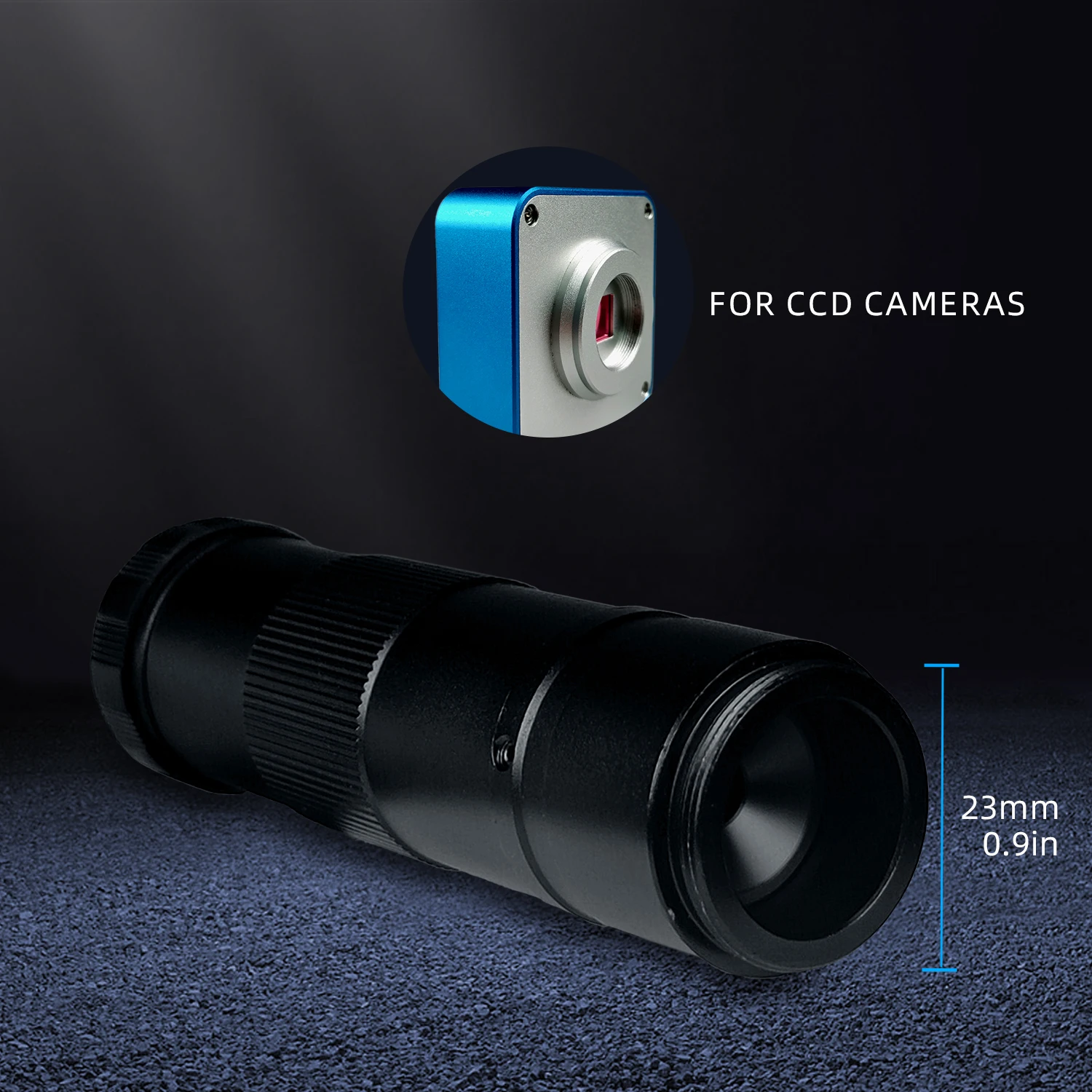

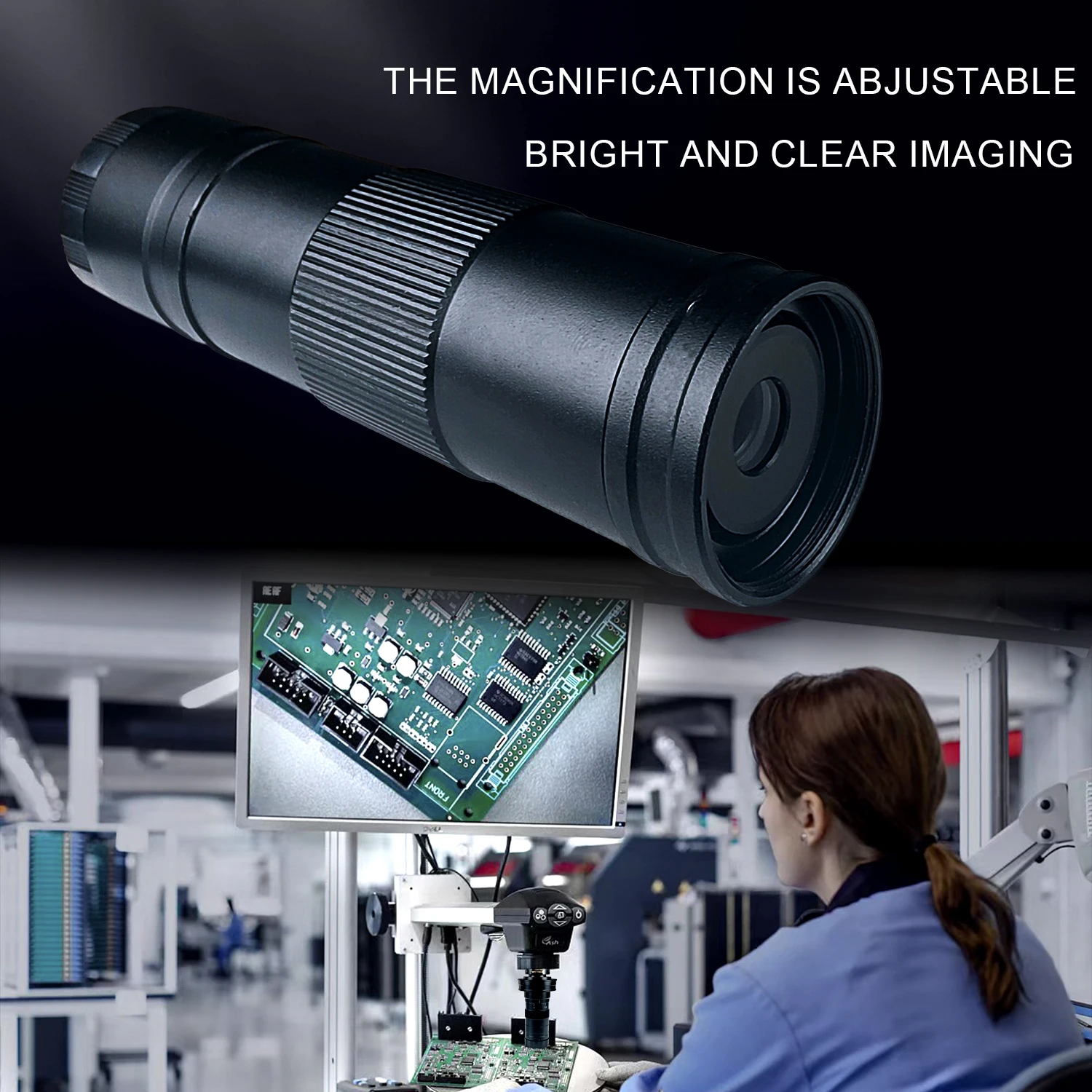

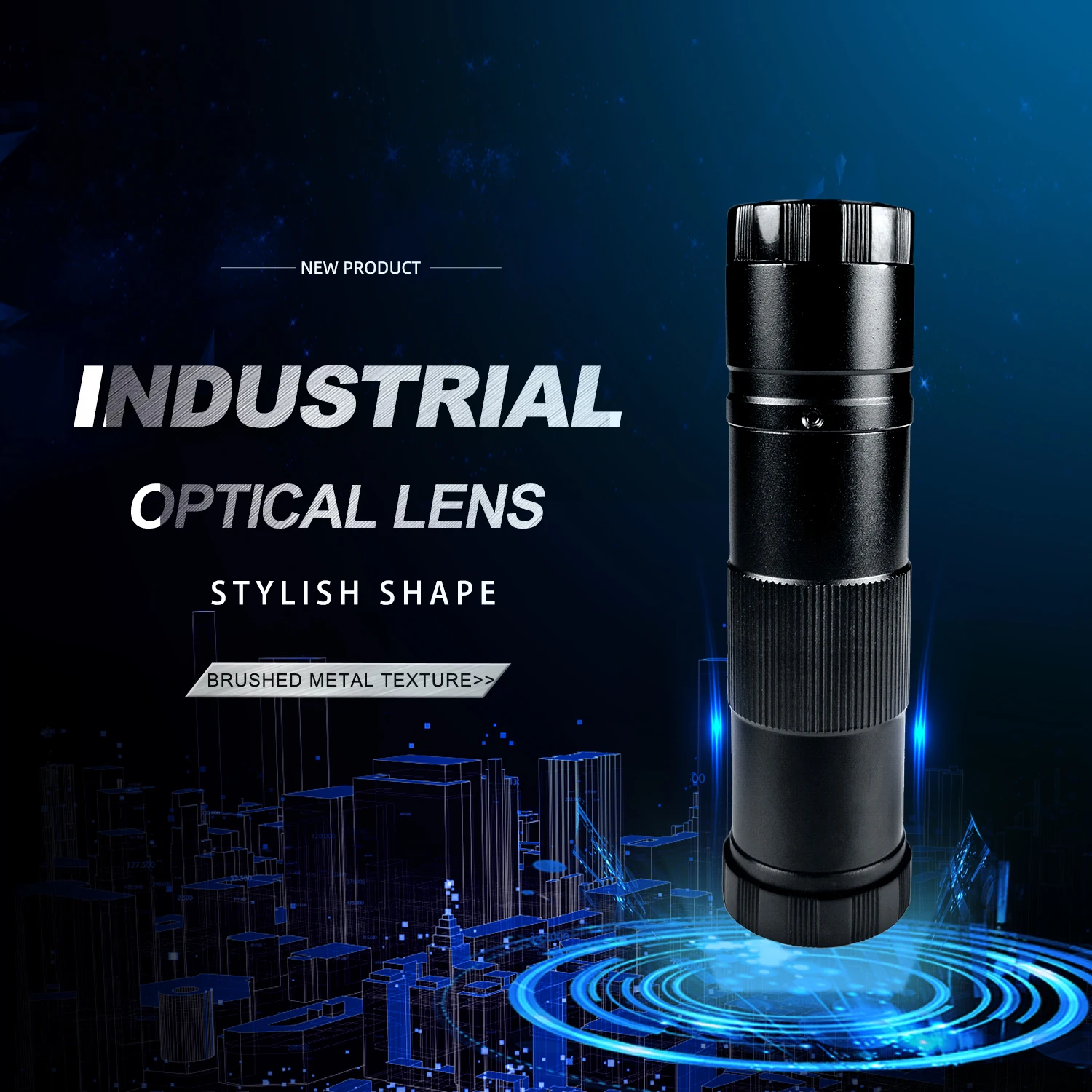

1X-150X zoom C-mount lens specifications:

Mounting diameter: 28mm
Working distance: 50mm-1000mm
Zoom ratio: 1:15
Magnification 0.15-2X (approximately 1-150X on the display)
Maximum magnification field of view: 4.2mm*2.4mm
Minimum magnification field of view: 130mm*70mm
Size: 99mm (length)
Weight: 100g
Applicable camera size: 25mm

Ring light specifications:

Material: plastic
Color: black/white
Size: 100mm
Weight: 240g
Model: WR63HW
Power: 4.5W
Power input: 110V-220V
Output voltage: DC12V/1A
Number of LEDs: 56
Working life: 100,000 hours
Color temperature: 6500K
Effective distance: 50-300mm
Inner diameter: 63mm
Outer diameter: 97mm
Light color: white light
