Brushless Motor Electric Blade Fan Motor DC7.4V/12V 80W/120W 140W High Power Strong Suction Metal Impeller For Vacuum Cleaner

Sparen Sie 20%
East Supplier PlatformArtikelnummer:1005006240563682-12V-Model D 7.4V 80W-0

Preis:
$28.98 $36.23

Steuern inklusive

Aktie:
Nur noch 10 Einheiten übrig

Beschreibung

SPECIFICATIONS

Condition: New-open box

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Usage: Home Appliance

Protect Feature: Explosion-proof

Commutation: Brushless

Efficiency: IE 1

Construction: Permanent Magnet

Origin: Mainland China

Certification: none

Type: Micro Motor

Choice: yes

semi_Choice: yes

Specification:

Note: The DC brushless motor is equipped with a drive board. It is strictly forbidden to connect the positive and negative poles of the power supply. The red line is connected to the positive pole and the black line is connected to the negative pole. If the connection is wrong, the drive board will burn out.

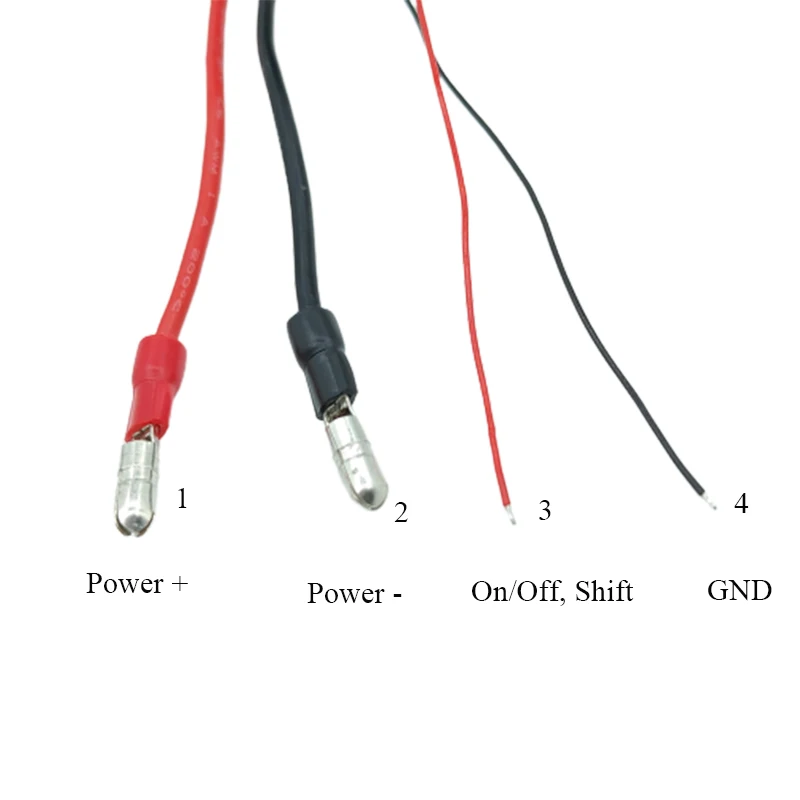

Motor connection:

1. Red wire (thick): positive power supply pole

2. black line (thick): power negative pole

3. red line (thin): motor on/off; switching high and low gears

4. black line (thin): GND

After connecting the power supply, the red line (thin) and the black line (thin) contact about 2.5 seconds to start, this time is a low-speed gear; short for a while, switch to high-speed gear; and then short for a while, the motor shutdown.

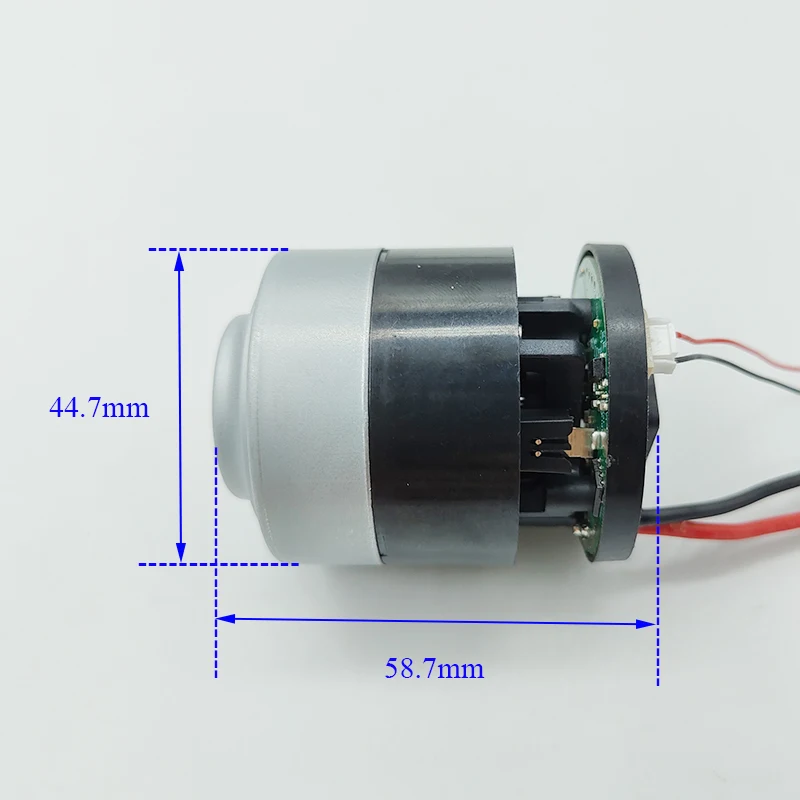

1. Fan outside diameter: 44.7mm
2. Maximum length: 58.7mm

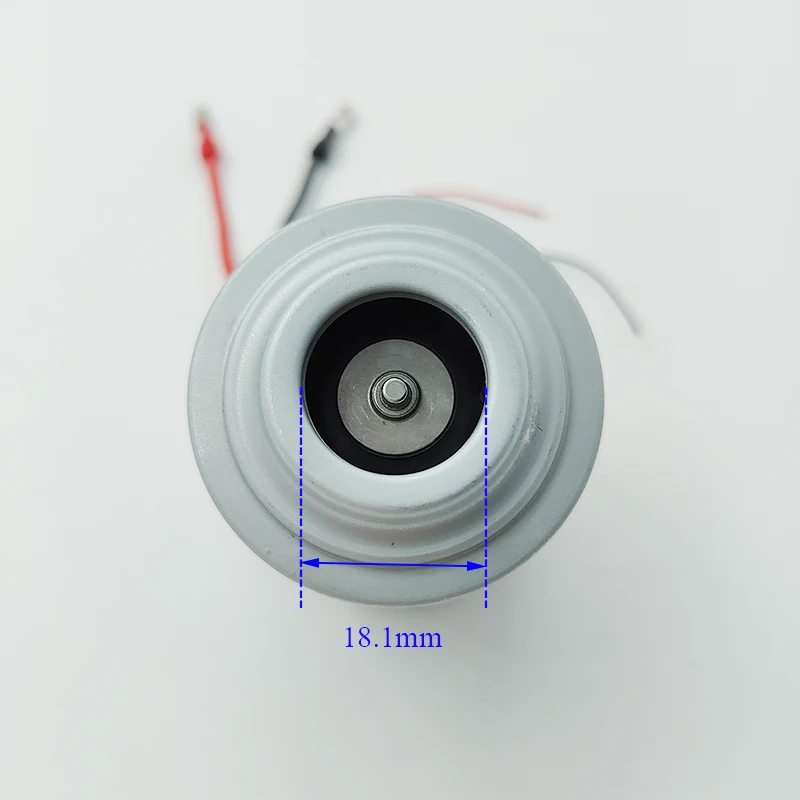

3. Air inlet: 18.1mm
4. Line length: about 100 mm

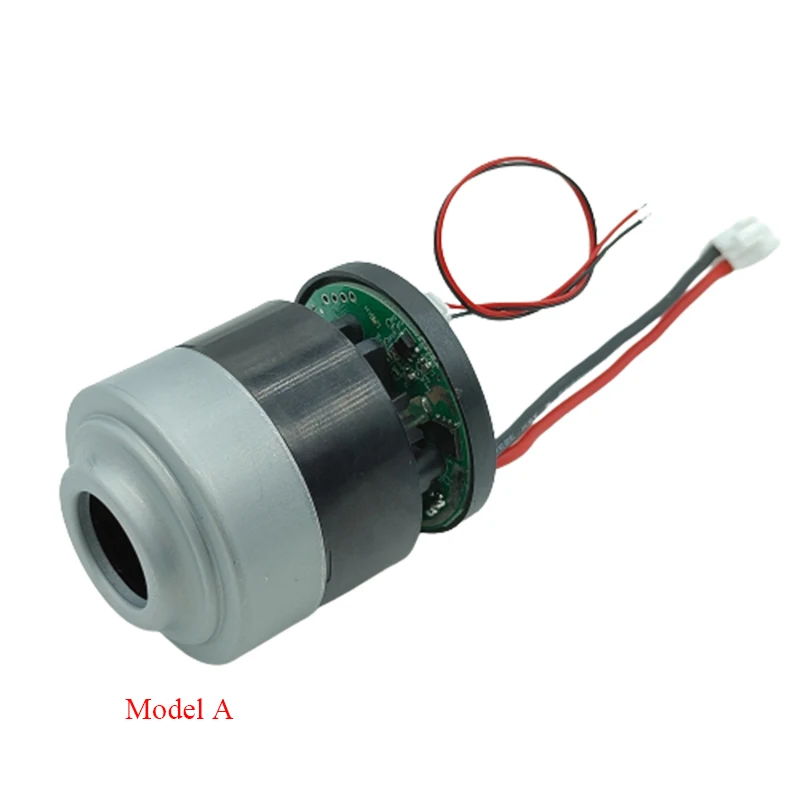

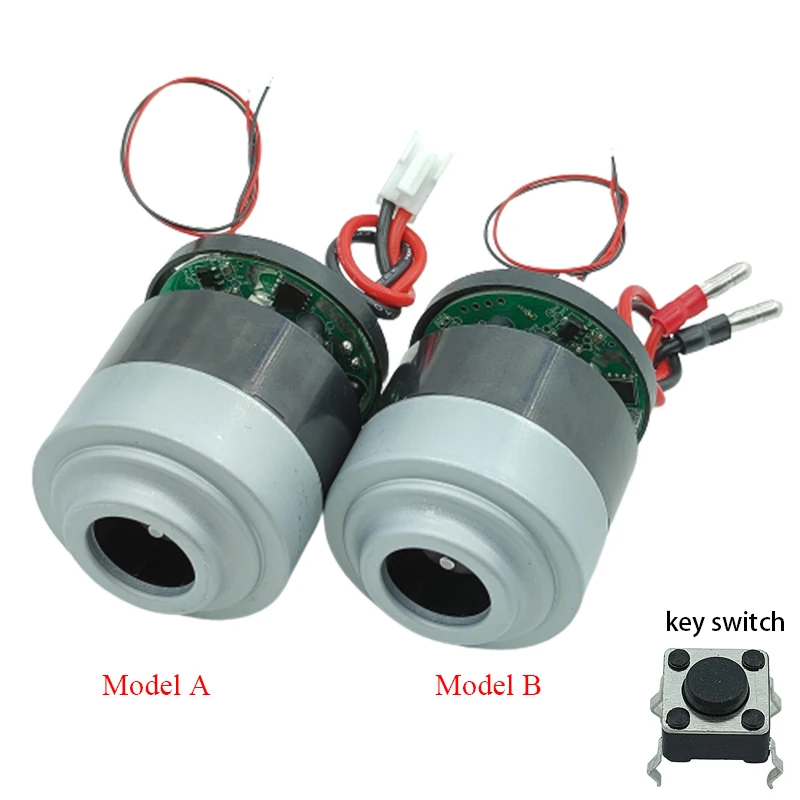

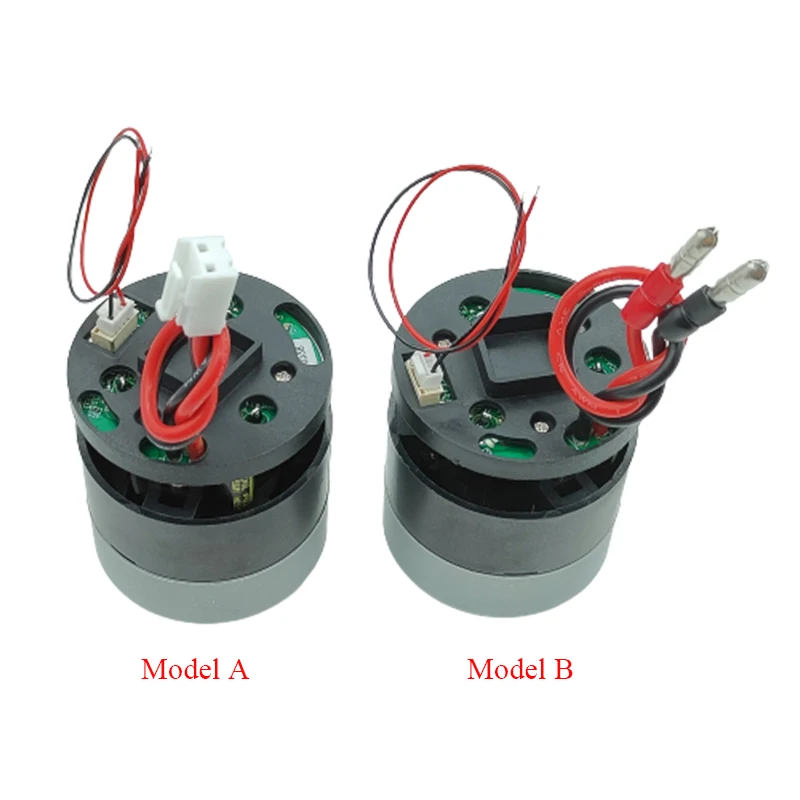

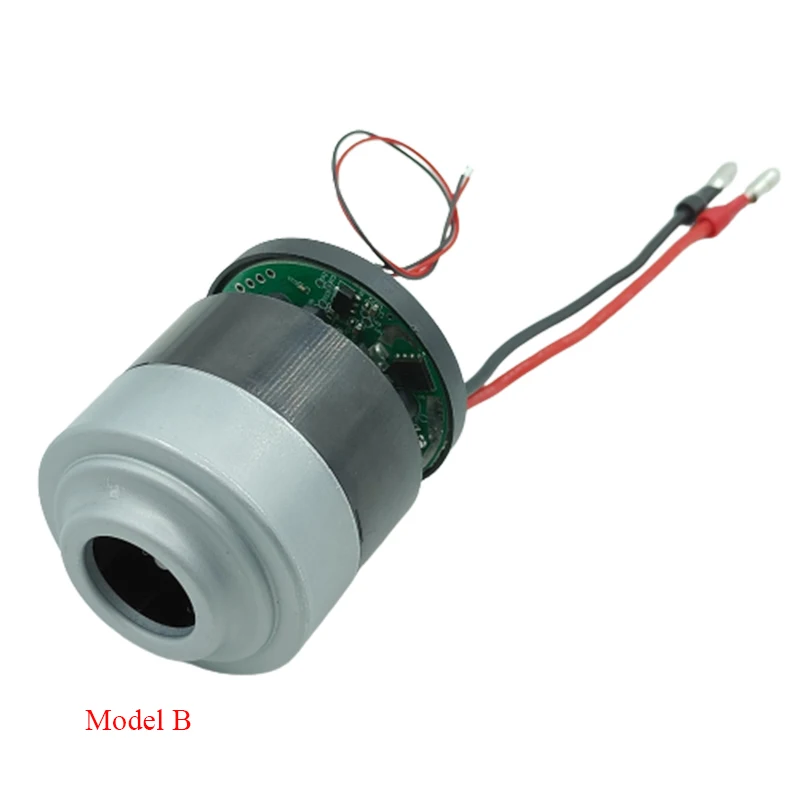

Model A and Mode B data:


Voltage: DC12V; Current: 4.5A (First gear, low gear.) ; Power: about 54 W; Speed: 80000rpm


Voltage: DC12V; Current: 10.5A (Second gear, high gear.); Power: about 126 W; Speed: 110000rpm

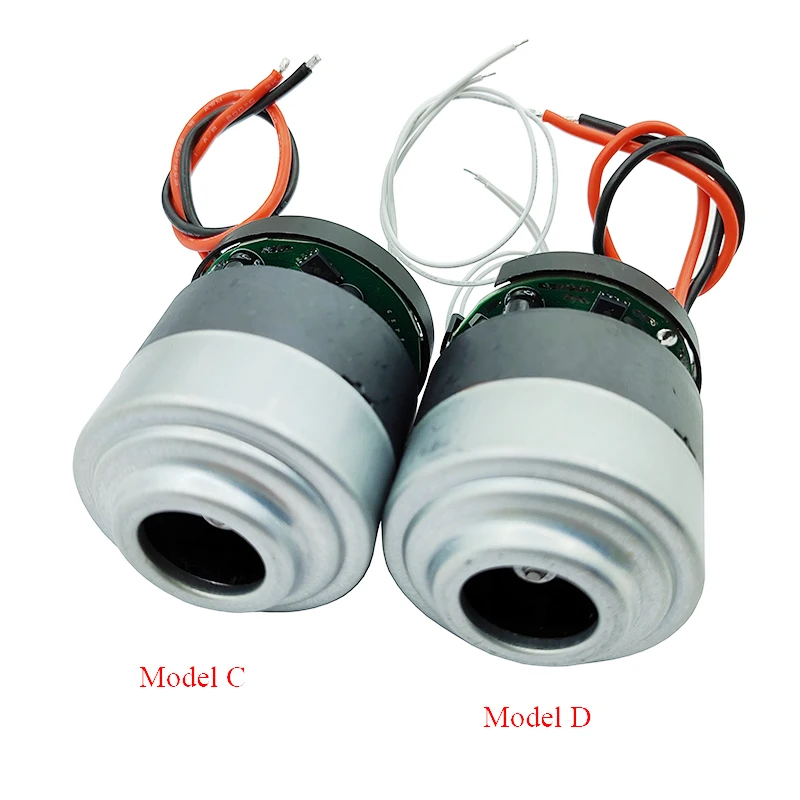

Model C data: DC 12V; Current: About 11.6A; Power: 140W


Model D data: DC 7.4V; Current: About 10.8A; Power: 80W

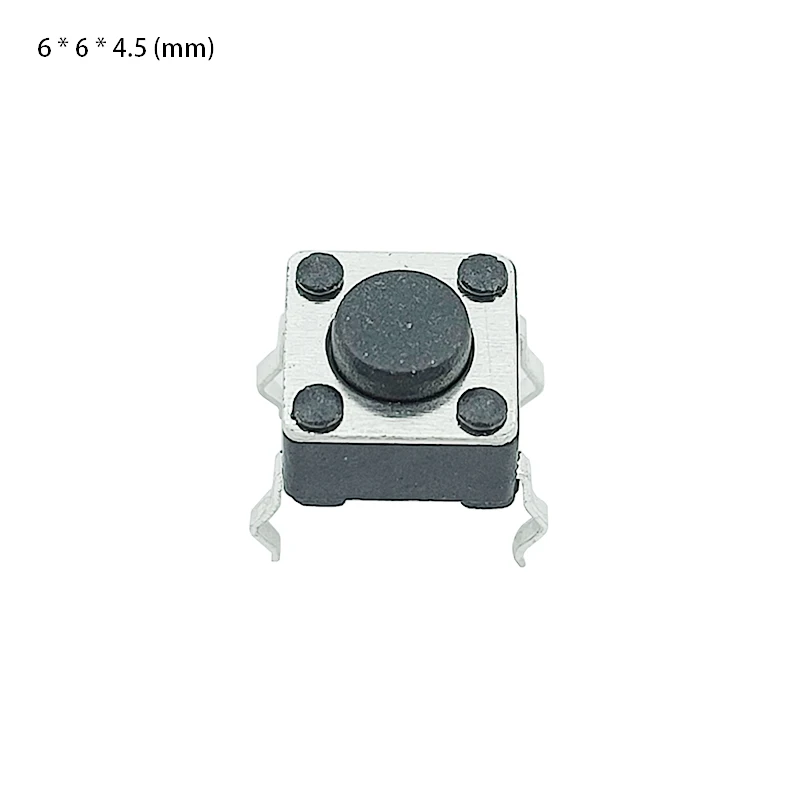

With a 6*6*4.5(mm) light touch key switch.

======================================

Package List:

Motor x 1PCS and key switch *1PCS
