Uni. 4 Link Rear Suspension Kit with 2500 Air Suspension Bag Triangulated Mounts

Sparen Sie 20%
East Supplier PlatformArtikelnummer:1005007131025021-UNITED KINGDOM

Preis:
$614.64 $768.30

Steuern inklusive Versand wird an der Kasse berechnet

Aktie:
Ausverkauft

Beschreibung

SPECIFICATIONS

Brand Name: MXR

Hign-concerned Chemical: None

Material: Hight quality

Model Number: same as OEM

Origin: Mainland China

Universal Rear Weld-On Triangulated 4 Link Suspension Kit

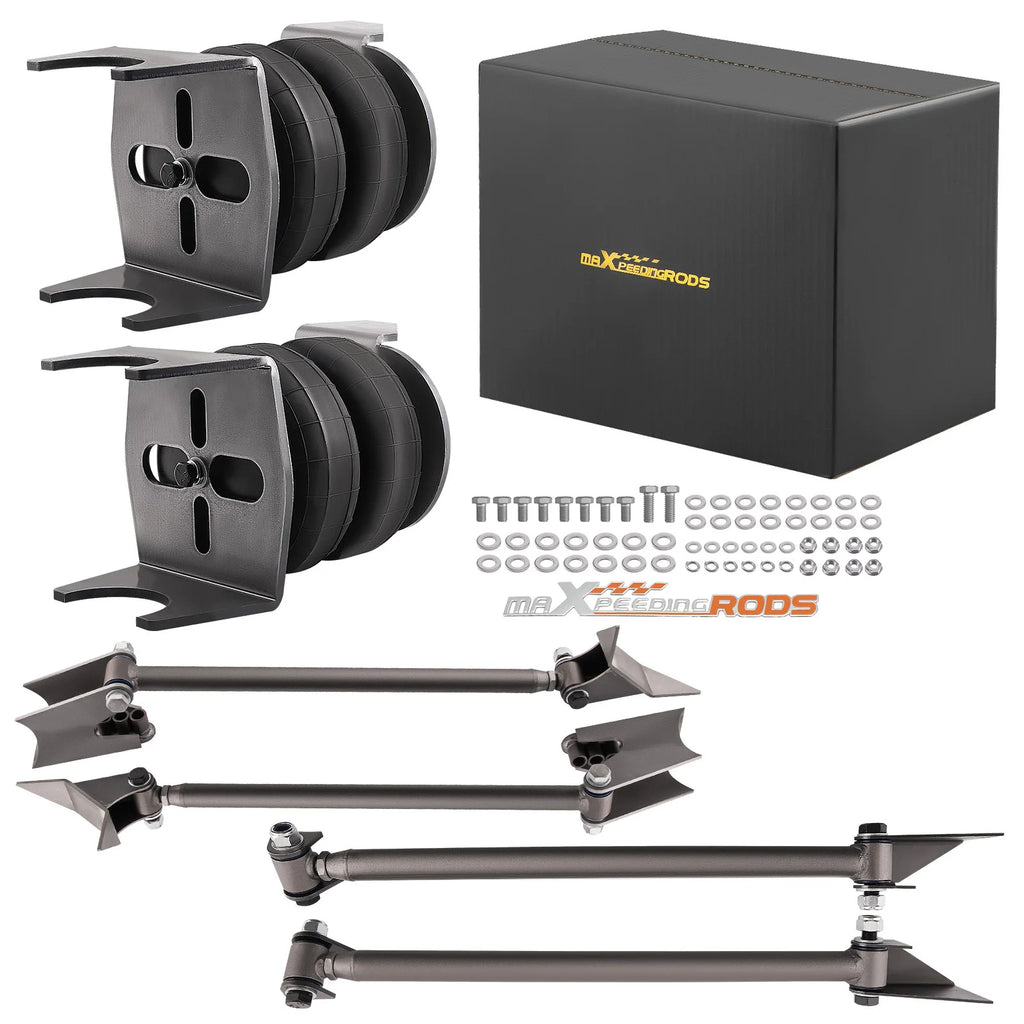

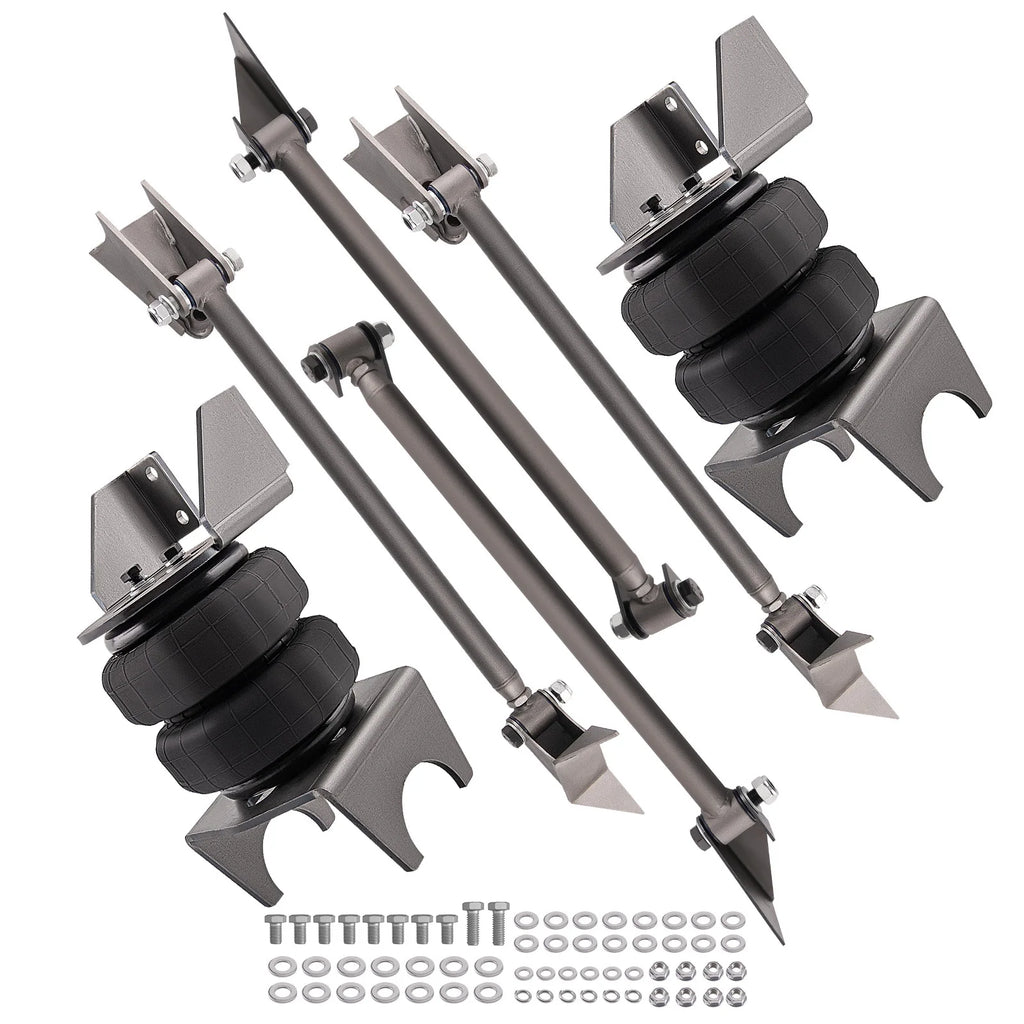

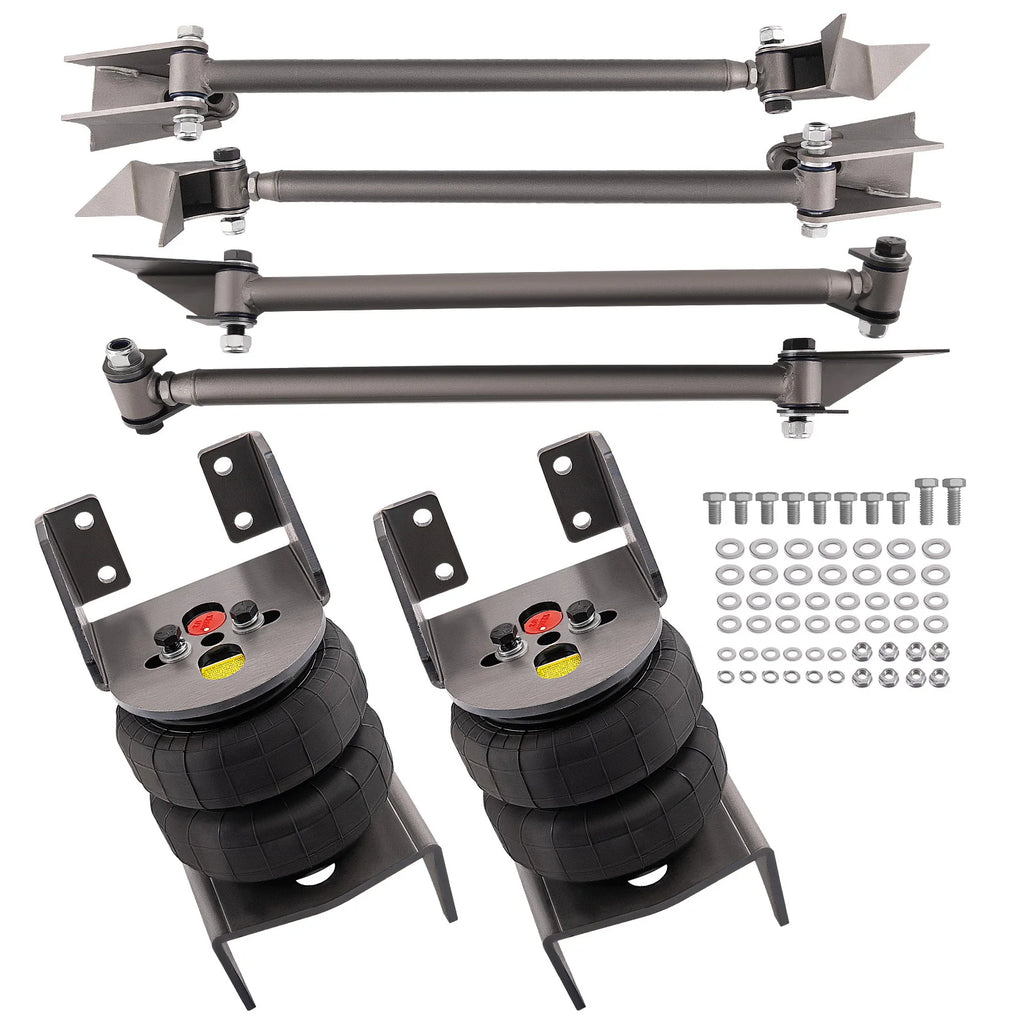

Package Includes:

4 x Heavy Duty Steel Bars
4 x Zinc Plated Steel Rod Ends W/ Urethane Bushings
2 x Steel, Weld-On Triangulated Frame Mounts
2 x Steel, Weld-On Lower Axle Tube Mounts
4 x Steel, Weld-On Center Link Axle Mounts
2 x Steel, Weld-On Side Frame Mounts

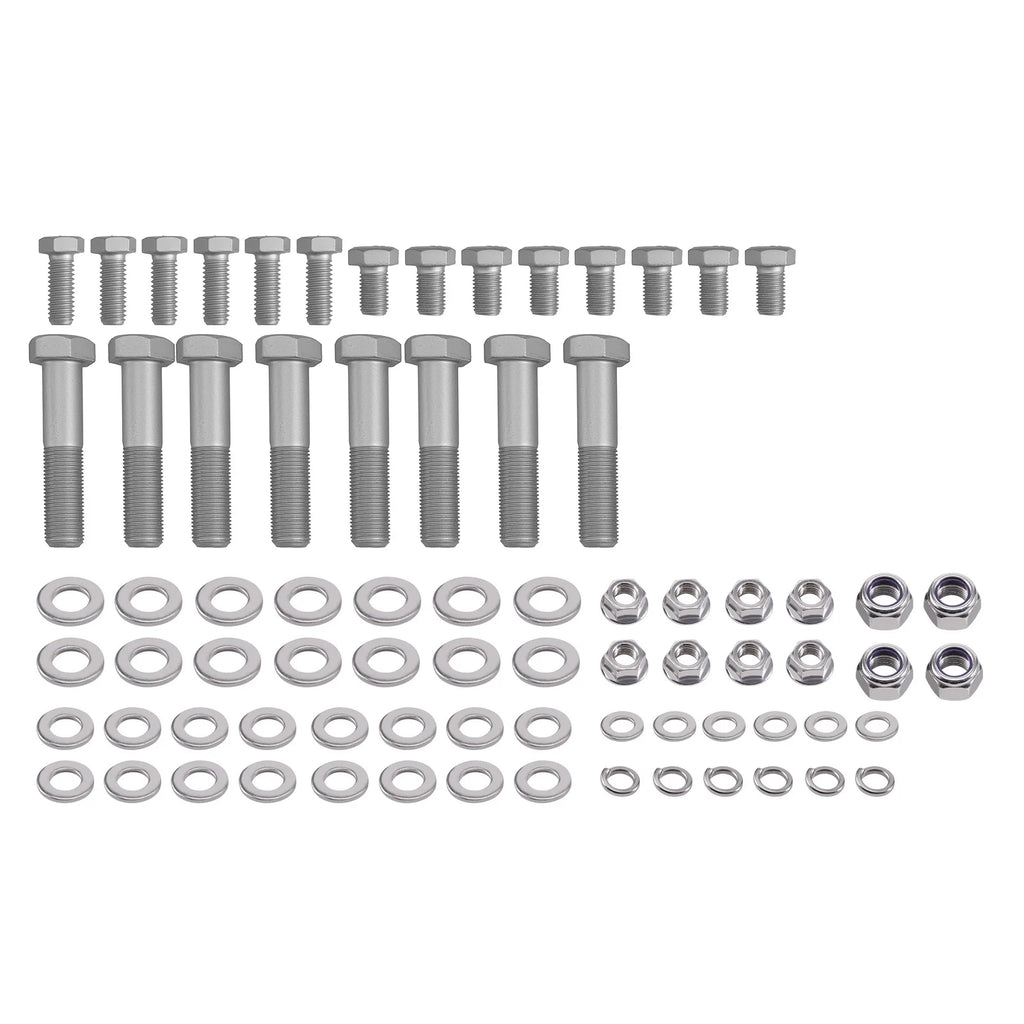

8 x Button Head Bolts with Nyloc Nuts
2 x Weld-On Lower Axle Bag Mount
2 x Weld-On Upper Frame Bag Mount
2x Standard 2500 Single 1/2"npt Port Air suspension Bags


The rod is available in silver and black, please refer to the actual product received

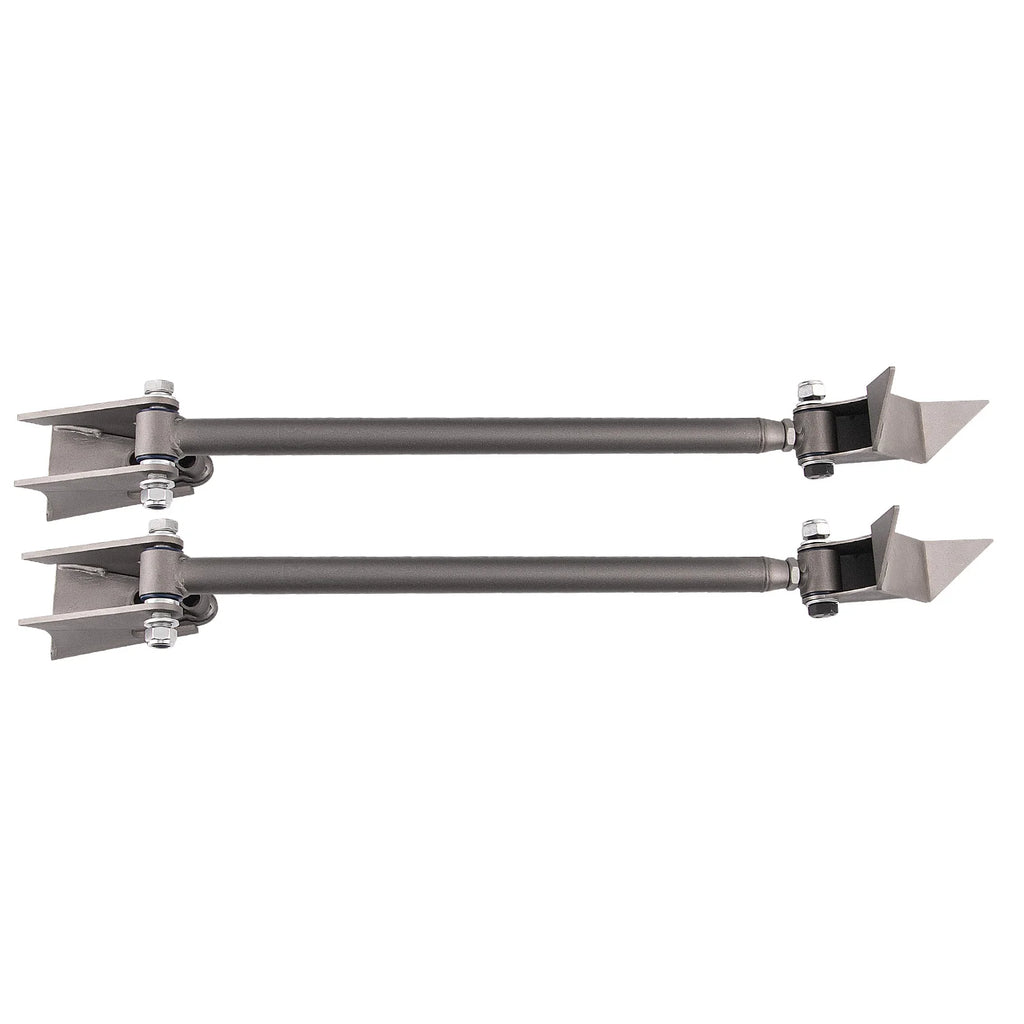

4 Link Bar Dimensions:

DOM Tubing Outside Diameter :1.25"
DOM Tubing Thick Wall :0.197"
All Four Bars :24.00"
(Center To Center Adjusted All The Way In)

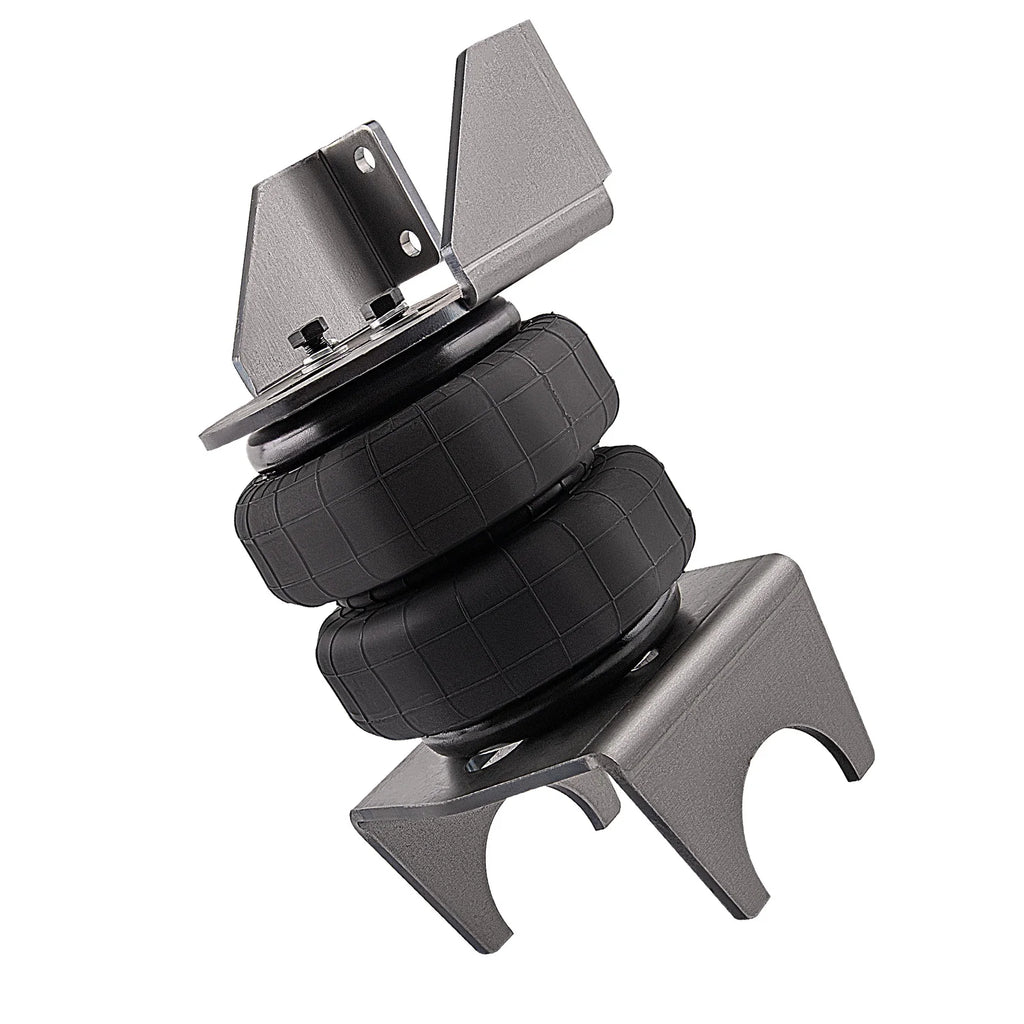

Specs of bag:
2500 LBS
Diameter: 6"
Extended:8"
Closed:2.75"
Two Top Mounting Holes : Approx 1-3/4" from Eye to Eye
Bottom has One Mounting Hole in Center
All mounting holes are 3/8"-16 UNC



Feature:

Instructions Are Not Included
We Recommend Professional Installation

Notice:
Please feel free to contact for whatever we can help!
