SPECIFICATIONS

ANYCUBIC Model: Kobra 2 Max

Auto Leveling: Yes

Auto leveling: LeviQ 2.0 Automatic Leveling

Bed Temp: ≤194°F/90°C

Brand Name: ANYCUBIC

CE Certification: Yes

Certification: CE

Consumables Diameter: 1.75mm

Control screen: 2.4inch LCD knob Screen

Cooling fan: 7000rpm

Fliament: PLA/TPU/ABS/ PETG

High-concerned chemical: None

Interface Type: USB

Language: English

Machine dimensions: 29.1 x 28.9 x 25.2 in./ 740 x735x640 mm(HWD)

Machine weight: 21kg

Maximum Print Size: 420*420*500mm

Maximum Printing Speed: 500 mm/s

Molding Technology: FDM

Motherboard: 32-bit silent motherboard

Nozzle Diameter: 0.4 mm

Origin: Mainland China

Power supply: 500W safe power supply

Precision: ±0.1mm

Printing Speed: 300 mm/s(Typ.) (11.8 in./s)

Printing dimensions: 19.7 x 16.5x 16.5in./ 500 x420 x420 mm (HWD)

Printing volume: 23.2 gal./88.2L

Voltage: 110-220V

Wireless Connectivity: Wi-Fi

Feature

[ Speed Exceeds, Size Expands] Average printing speed 300mm/s, Maximum Printing Speed 500mm/s, Acceleration 10000mm/s2

[ Vibration Compensation Flow Control ] With"Flow Control", intelligent compensation for retraction andrefilling ensures evenly and fully printed layers, enhancingprint quality and detail representation.

[ 88L Large Volume Fastand Precise Creative Production ] 420*420*500mm large print size, capable of printingmodels with a volume of around 88 liters in one go.

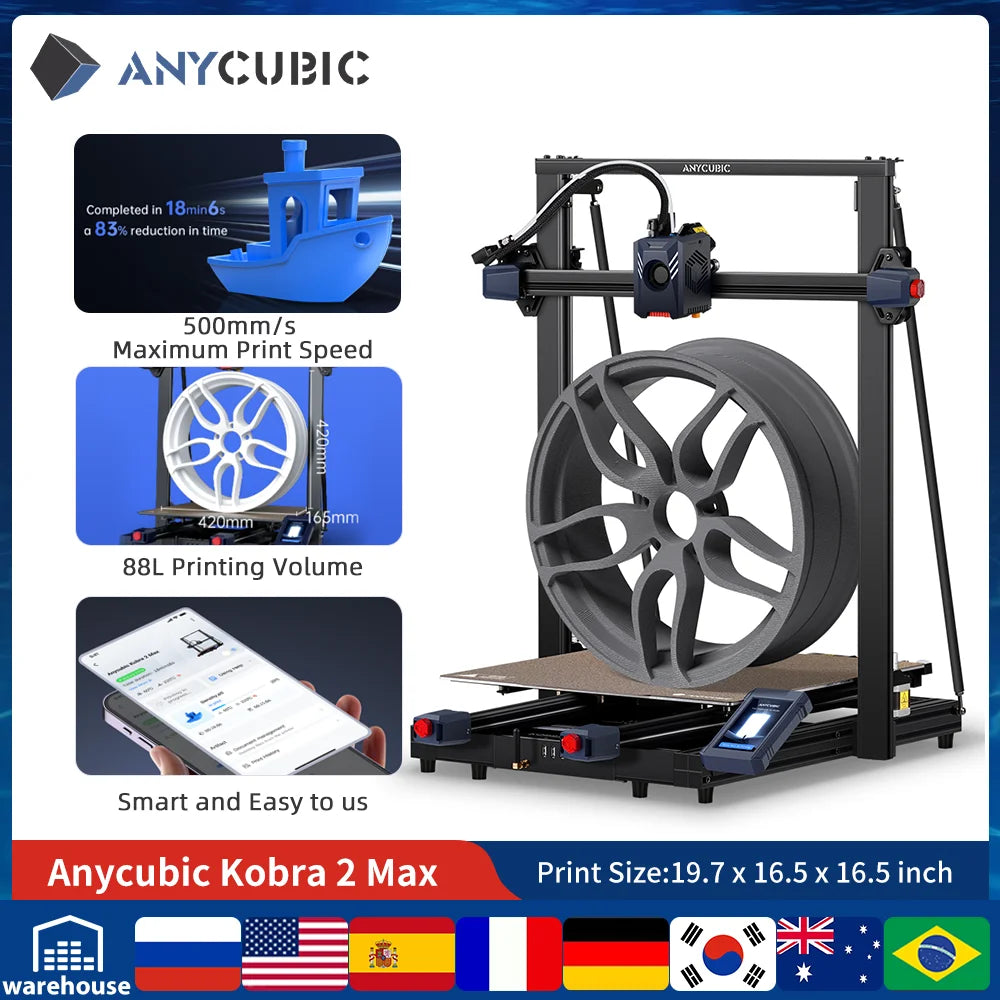

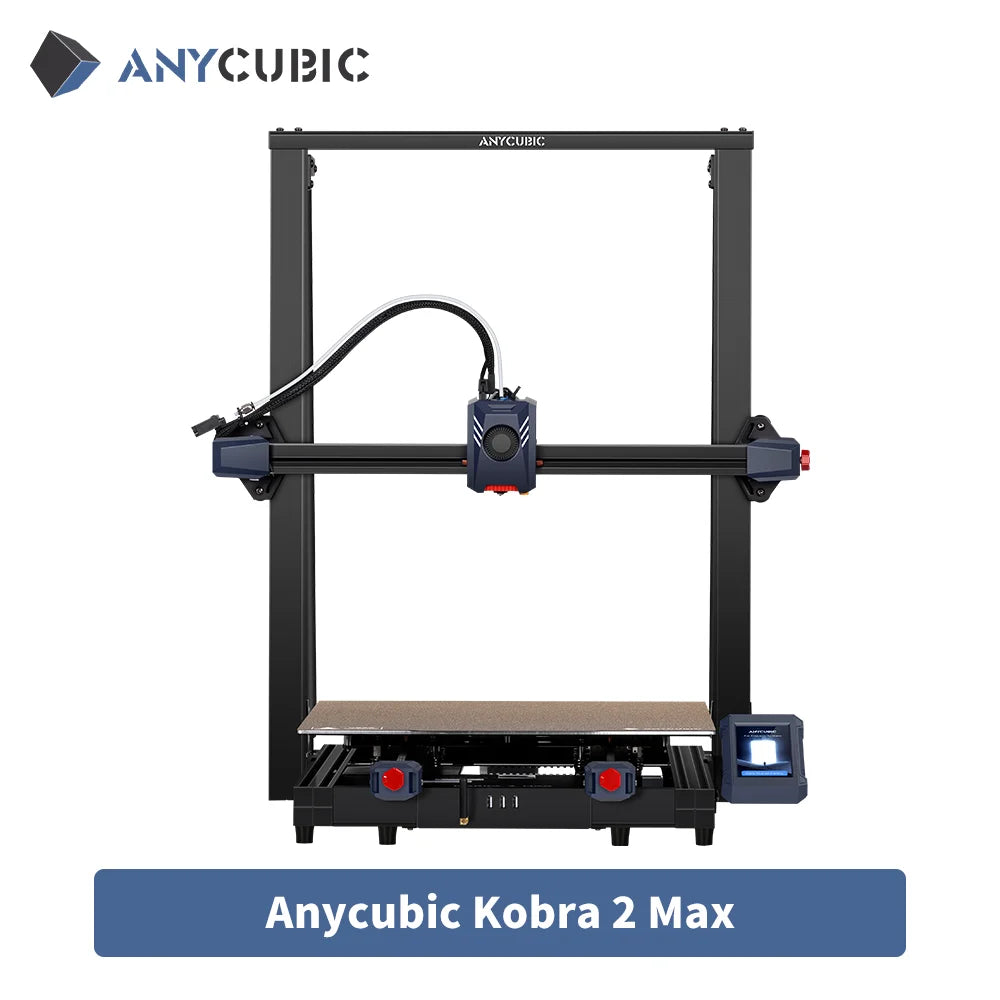

Anycubic Kobra 2 Max

Speed Exceeds, Size Expands

10X Faster Printing|88L Printing Volume | Smart and Easy to use

10X Faster Excellent in detail

300mm/s Standard Printing Speed; 500mm/s Maximum Printing Speed; 10000mm/s2 Acceleration. Compared to mainstream FDM 3D printers, the printing speed has increased by 10 times. Larger model creation, time-saving, and energy-efficient.
[1]Compared to products with a average printing speed of 50mm/s, data from Anycubic Lab, results are for reference only.

High-Performance Dual-Core Strong Computing Power

Equipped with a high-performance dual-core Cortex-A7 1.2GHz processor, it provides strong computing power for faster calculations, execution of commands, motor control, resulting in 10 times faster printing

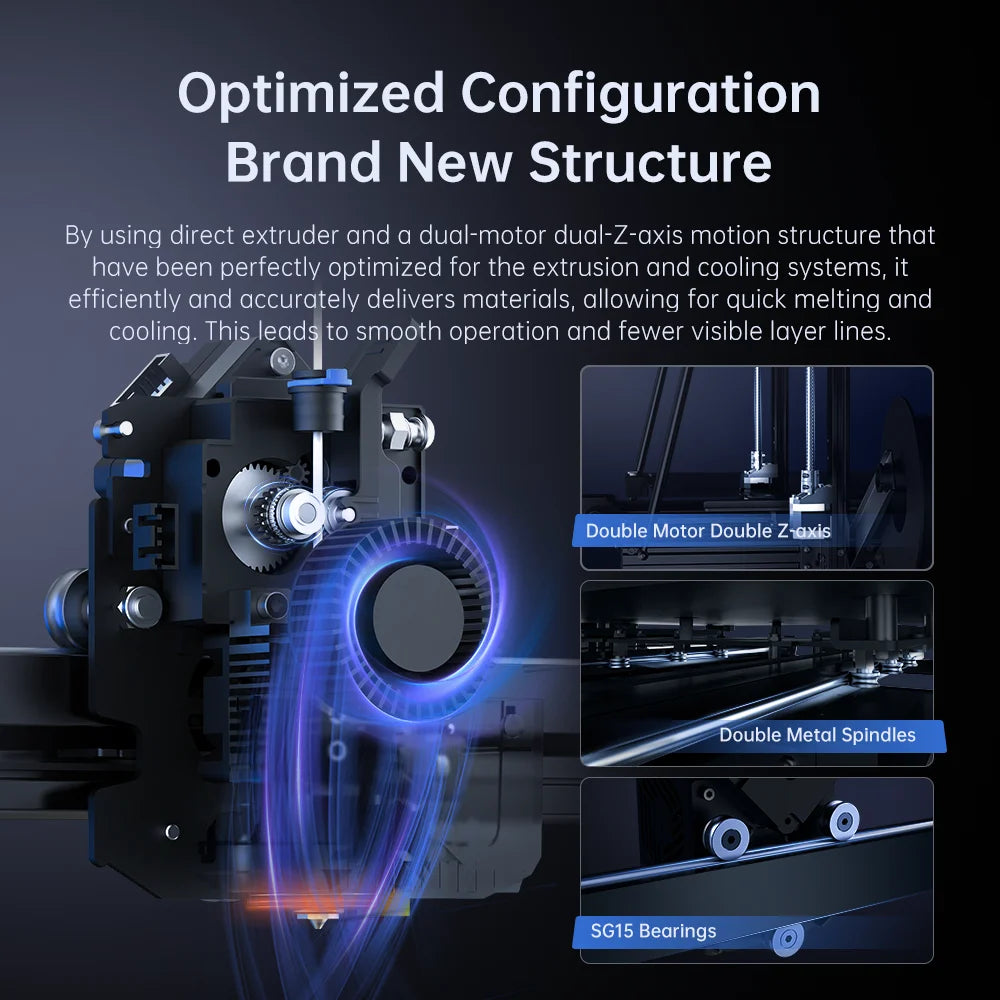

Optimized Configuration Brand New Structure

By using direct extruder and a dual-motor dual-Z-axis motion structure that have been perfectly optimized for the extrusion and cooling systems, it efficiently and accurately delivers materials, allowing for quick melting and cooling. This leads to smooth operation and fewer visible layer lines.

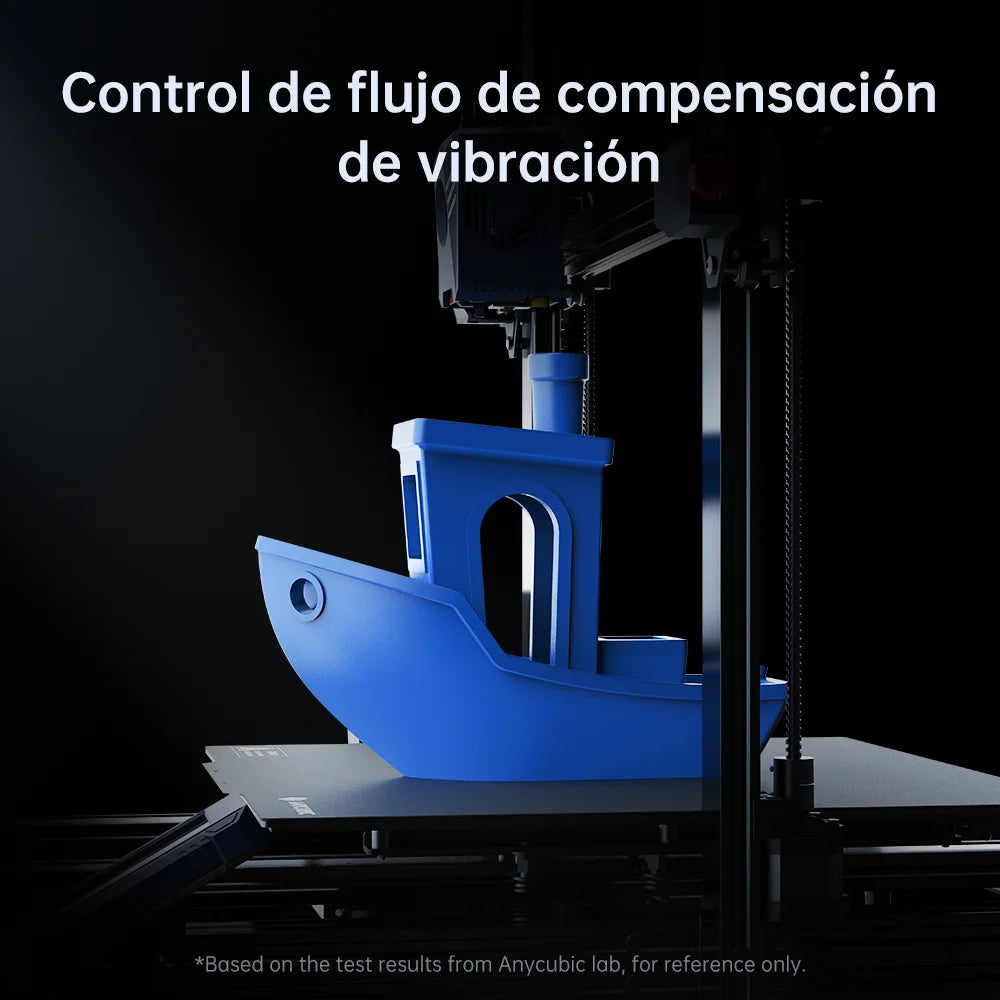

Vibration Compensation Flow Control

The one-click "Vibration Compensation" detects the resonance frequency of the X/Y axes and adjusts the motion control intelligently to effectively eliminate resonance vertical lines and bracket lines, ensuring printing accuracy and stability. With "Flow Control", intelligent compensation for retraction and refilling ensures evenly and fully printed layers, enhancing print quality and detail representation.

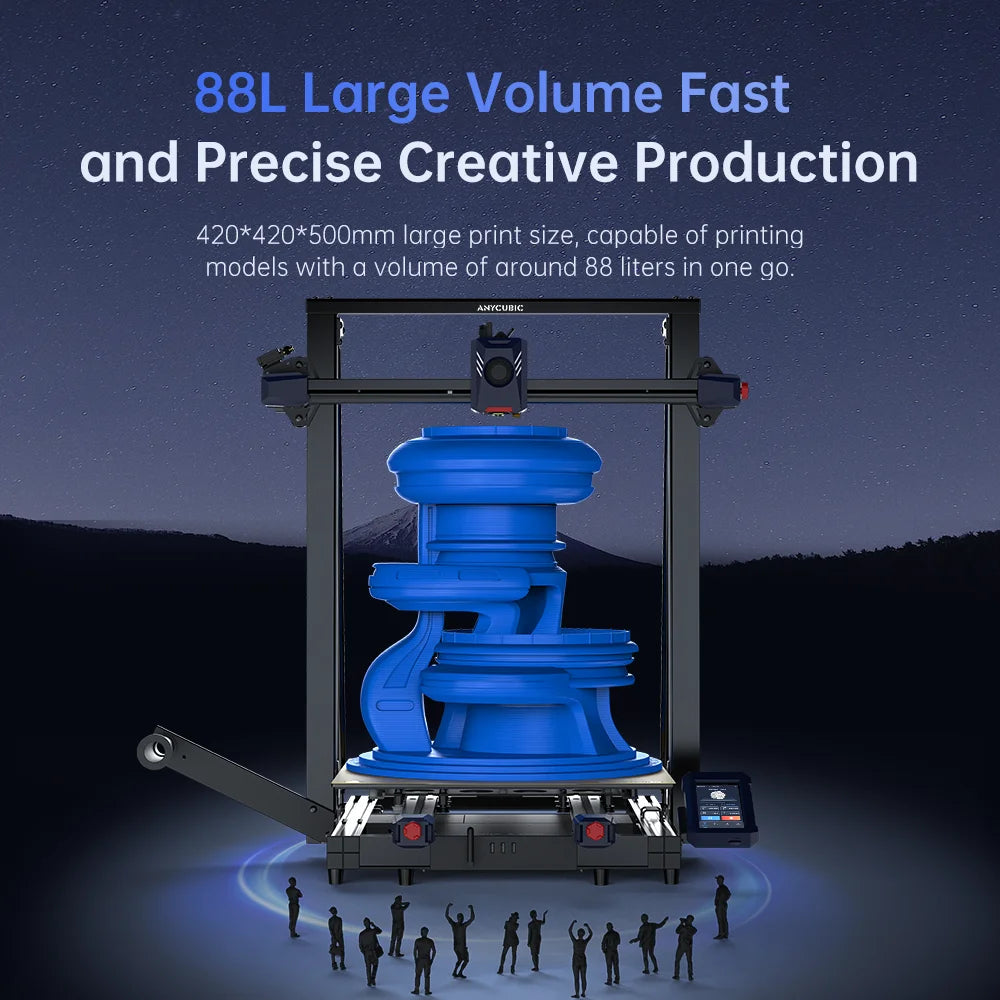

88L Large Volume Fast and Precise Creative Production

420*420*500mm large print size, capable of printing models with a volume of around 88 liters in one go. Full-sized printing of the same model, compared to similar products on the market with a printing speed of 50mm/s, printing time is shortened by 77 h 42 mins, efficient creation, energy-saving, and environmental-friendly.

Large printing size provides efficient creative tools for manual creation, prototyping, and custom design

Smart and Easy to Use Printing Without Interrupting

After upgrading the printer firmware to version 3.0.5 or above, the Anycubic APP offers support for various features,  including online model library search, real-time video supervision and status monitoring, online slicing and printing, time lapse recording, as well as remote control and management.

              The printer firmware needs to be upgraded to version 3.0.5 or above.

              Users need to prepare their own cameras to enable video monitoring functionality.

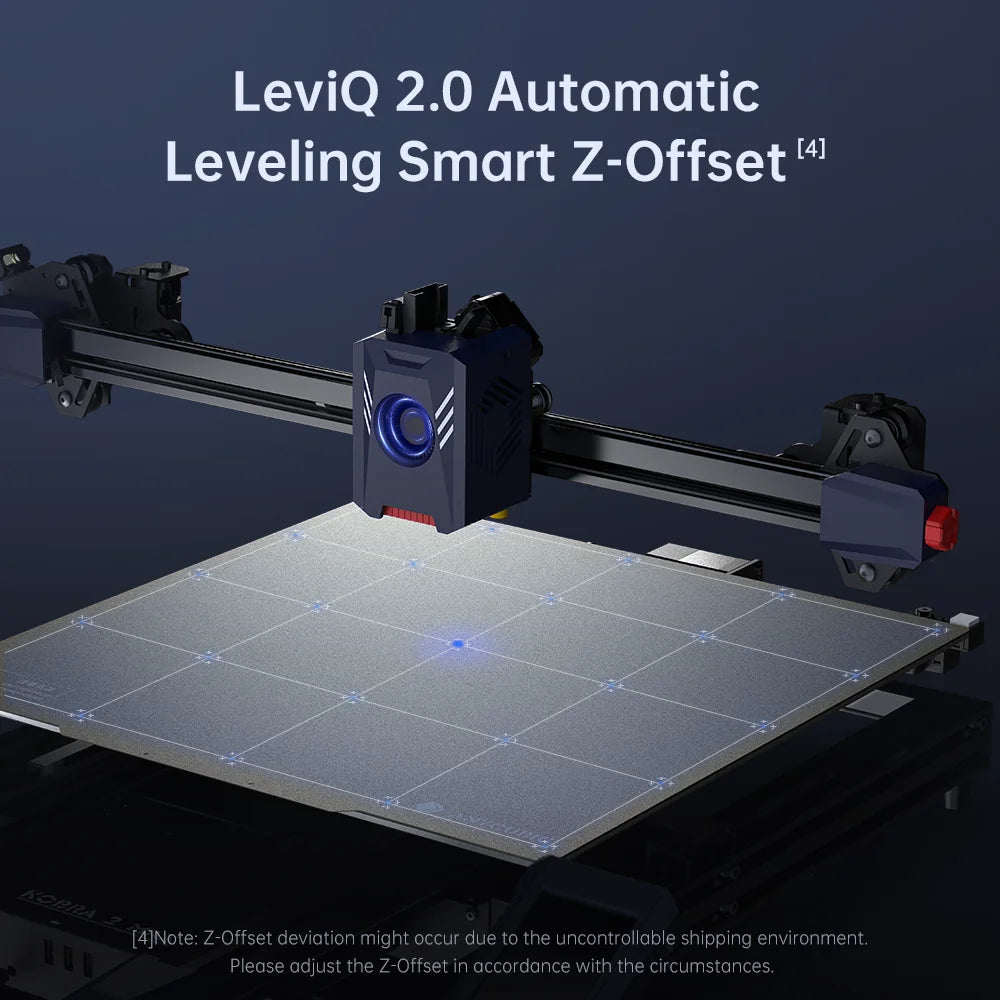

LeviQ 2.0 Automatic Leveling , Smart Z-Offset[4]

By designing a unique module, after automatic leveling, it can intelligently compensate for Z-axis offset, while also supporting custom Z-axis compensation values, meeting the needs of different users and usage environments.One-click quick start for creative ideas, ensuring successful printing. Upgraded LeviQ 2.0 Auto-leveling System. Customized to cater to various printing needs

[4]Note: Z-Offset deviation might occur due to the uncontrollable shipping environment. Please adjust the Z-Offset in accordance with the circumstances.

Several Detail Designs Easy Creation

Integrated body structure for easy setting up and printing. 4.3-inch full-color touch screen for sensitive response. Spring steel magnetic platform for easy model removal. Equipped with a 32-bit mainboard and TMC2209 silent drivers, it enables precise and smooth 3D printing. Standard filament detection, filament interruption. Built-in 8G capacity capable of storing over 400 model files for quick storage, export, and printing

Tech Specs
Structure: Cartesian
Type: FDM/FFF
Filament detection: Default
Machine leveling: New Anycubic, LeviQ 2.0 automatic
leveling system: Automatic(49-point)
Printing platform: PEl magnetic spring steel
16.5 x 16.5in./420 420 mm
X/Y axis: Double metal spindle
Z axis: Double Motor Double Z-axis
Extruder: Direct Extruder+ Double Gears
Coolingfan RPM: 7000rpm/min
X/Y axis belt tensioner: Included
Controlpanel: 4.3' LCD touch-control screen
Datainput: USB ports*3pcs
Machine weight: 21kg
Hotbed≤194F/90°C
Nozzle<500F/260°C 0.4 mm (replaceable)
Machine dimensions: 29.1 x 28.9 x 25.2 inch, 740 x735x640 mm(HWD)
Motherboard: 32-bit silent motherboard
Printing volume: 23.2 gal./88.2L
Printing material: PLA/TPU/ABS[5]/ PETG
Printing speed≤19.7inch/s/ 500 mm/s(Max), 11.8 inch/s /300 mm/s(stander)
Printing dimensions: 19.7 x 16.5x 16.5inch, 500 x420 x420 mm (HWD)
Power supply: 500W safe power supply
