Description
SPECIFICATIONS
Access Control: Inductive Card
Answering Mode: Hands-free
Brand Name: Dahua
Camera: COLOR
Camera Sensor type: CMOS
Certification: CE
Connection Method: Wired
Connection Type: Wired
Display Screen Size(inch): 7
Display Screen Type: Color Touch Screen
Doorbell: Yes
Hign-concerned Chemical: None
IP Camera Interface: No
Installation: Wall Mounting

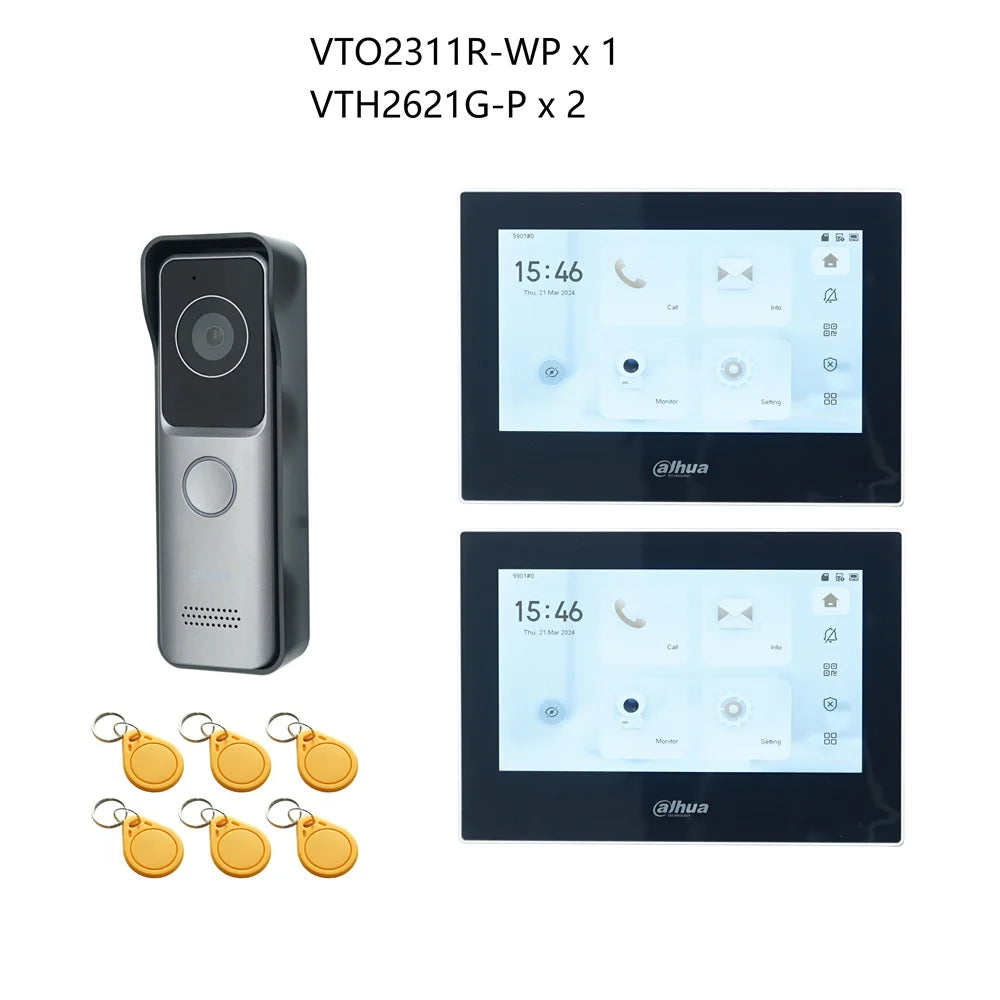

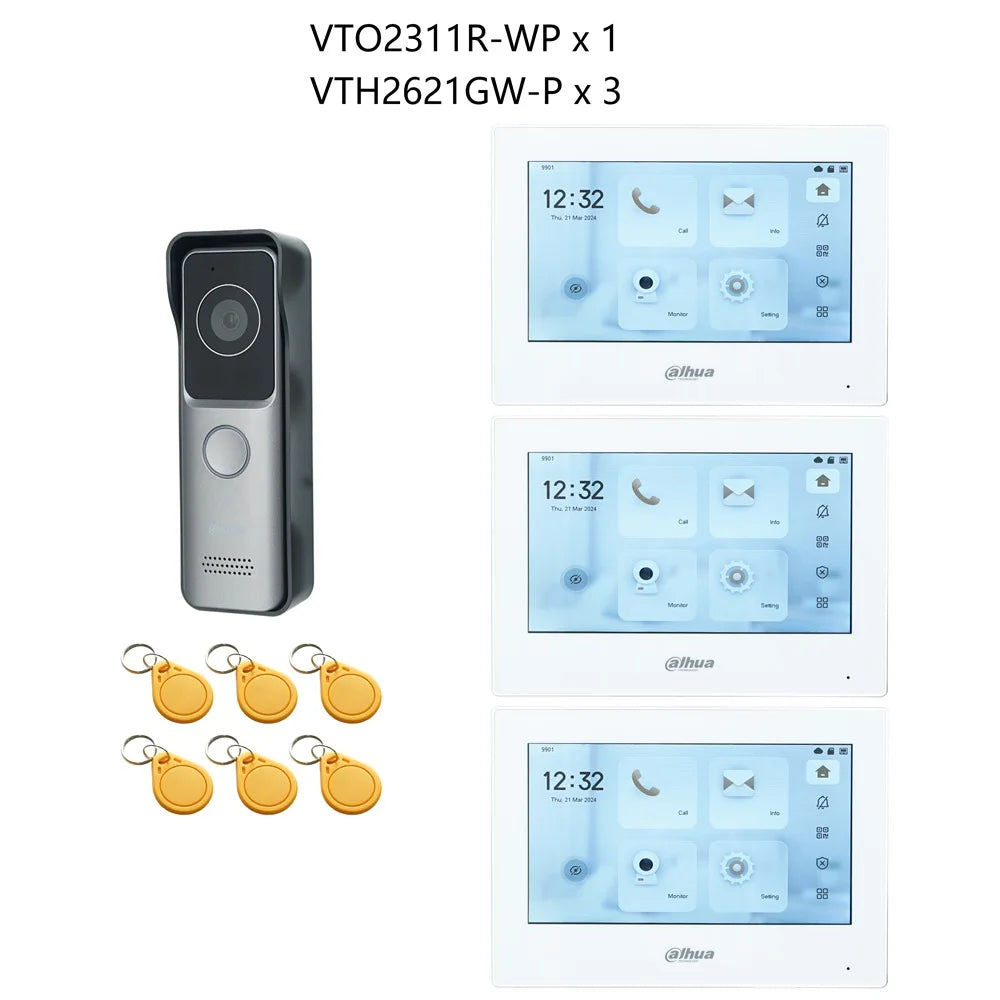

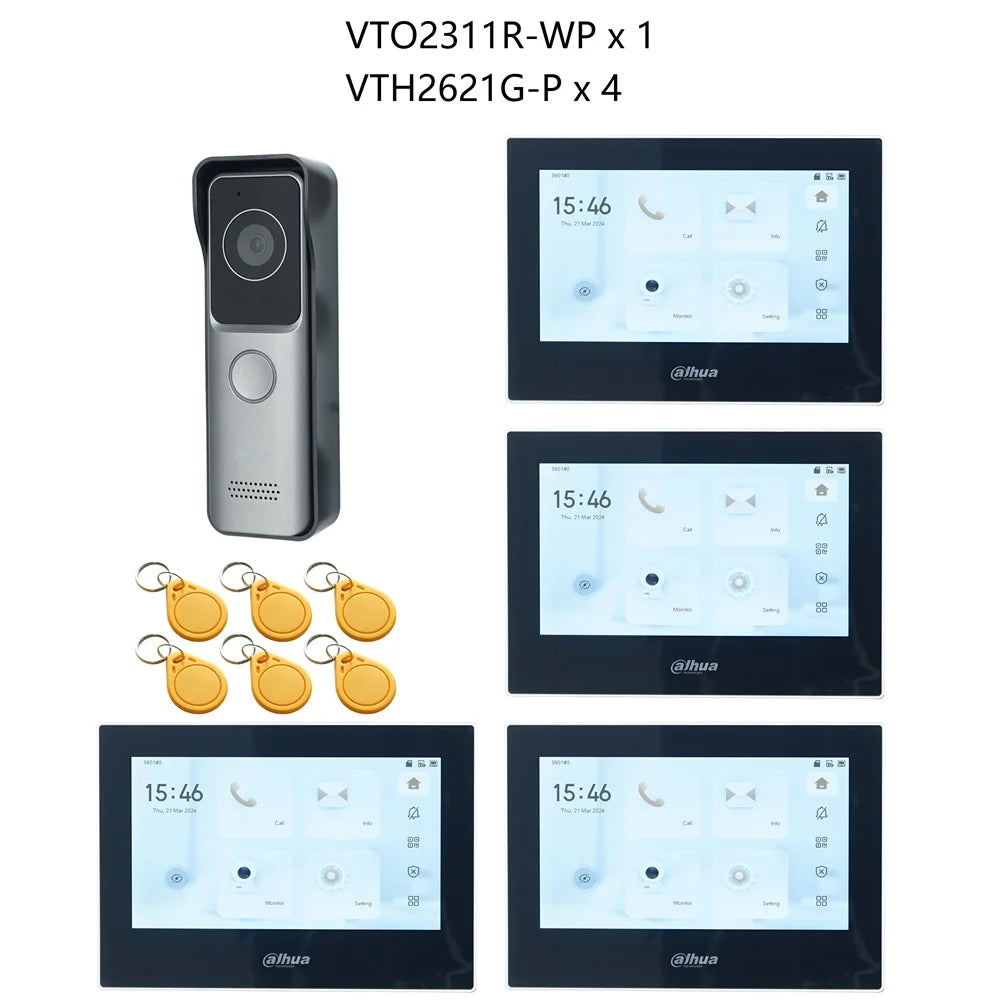

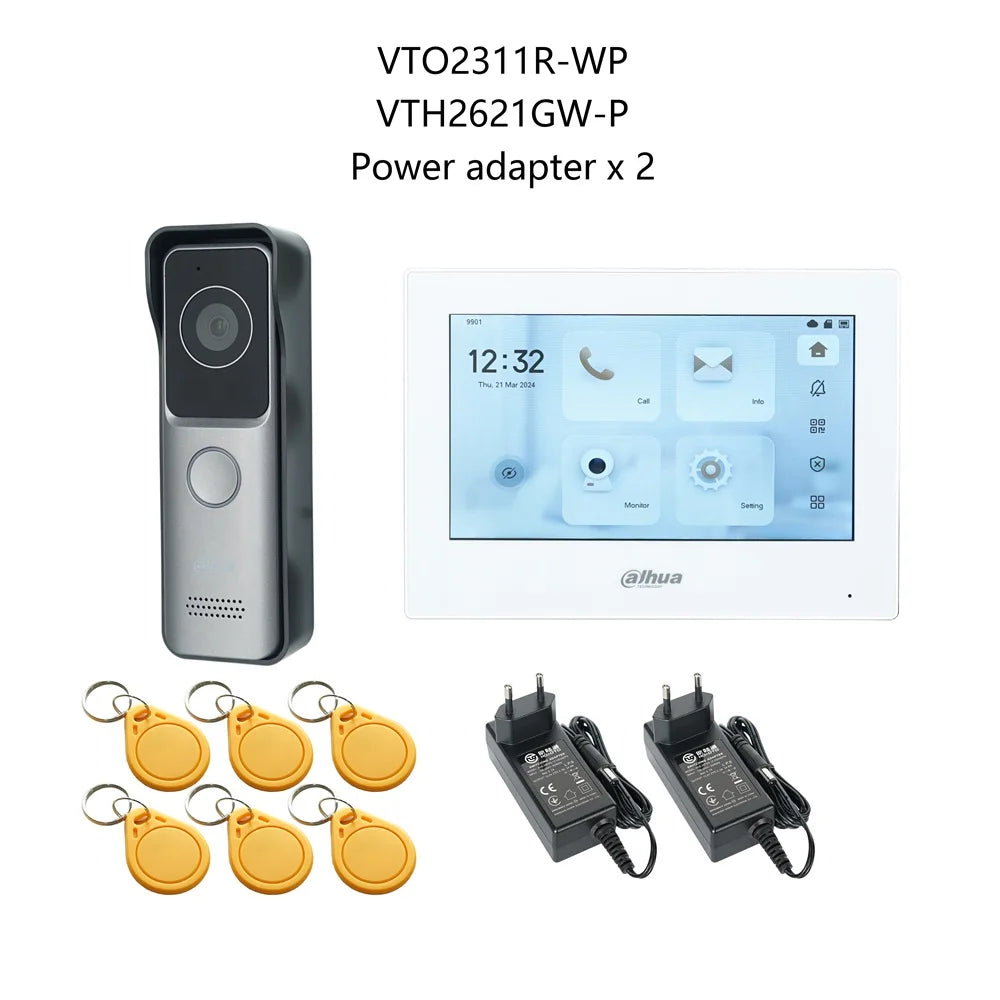

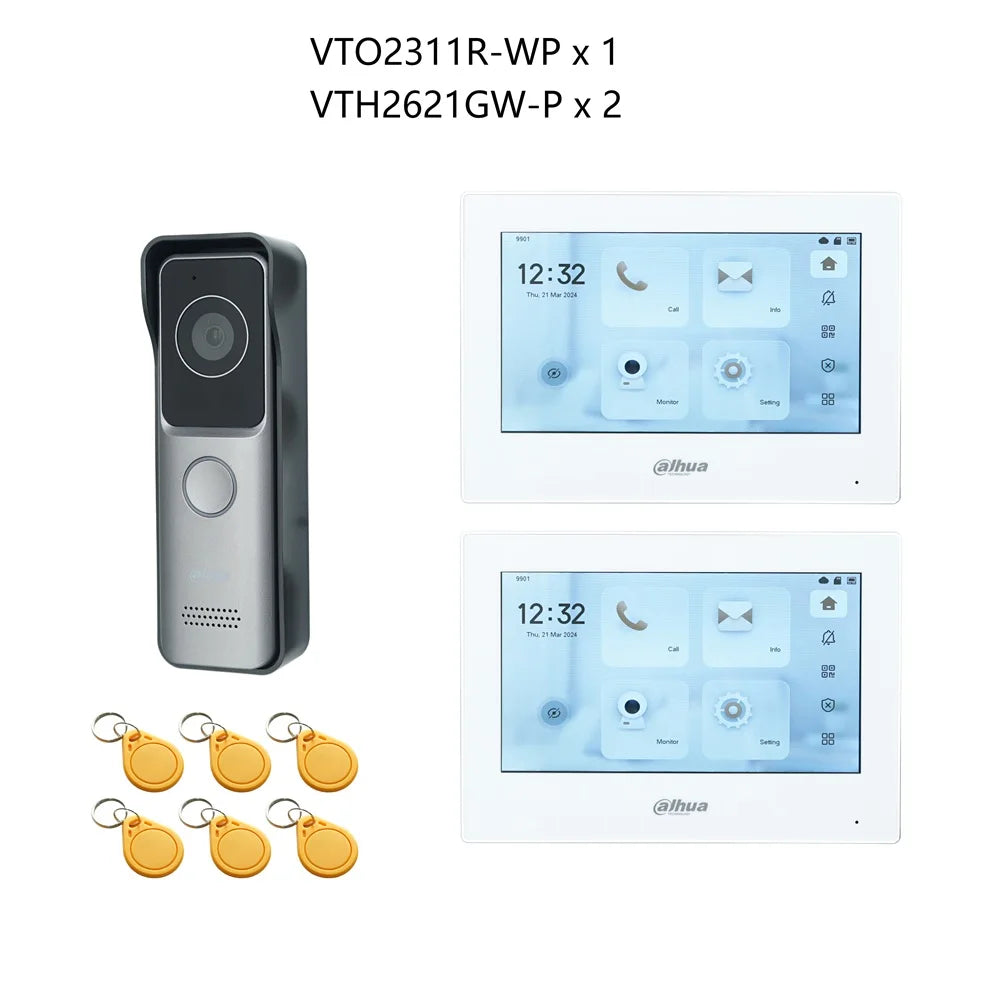

Kit Configuration: One to One video doorphone
Material: Plastic
Model Number: VTO2311R-WP VTH2621GW/G-P
Origin: Mainland China
Plug Type: EU Plug
Power: DC 12V / IEEE802.3af PoE
Power (W): 7W
Samrt Home Interface: No
Size: 160mm*50mm*30mm
Smart home platform: Other
Technology: DIGITAL
Type: intercom system
Viewing Angle (°): H: 110°; V: 62°; D: 133°
Waterproof: Yes
Phone app: DMSS
The Doorbell can work with the Indoor monitor.

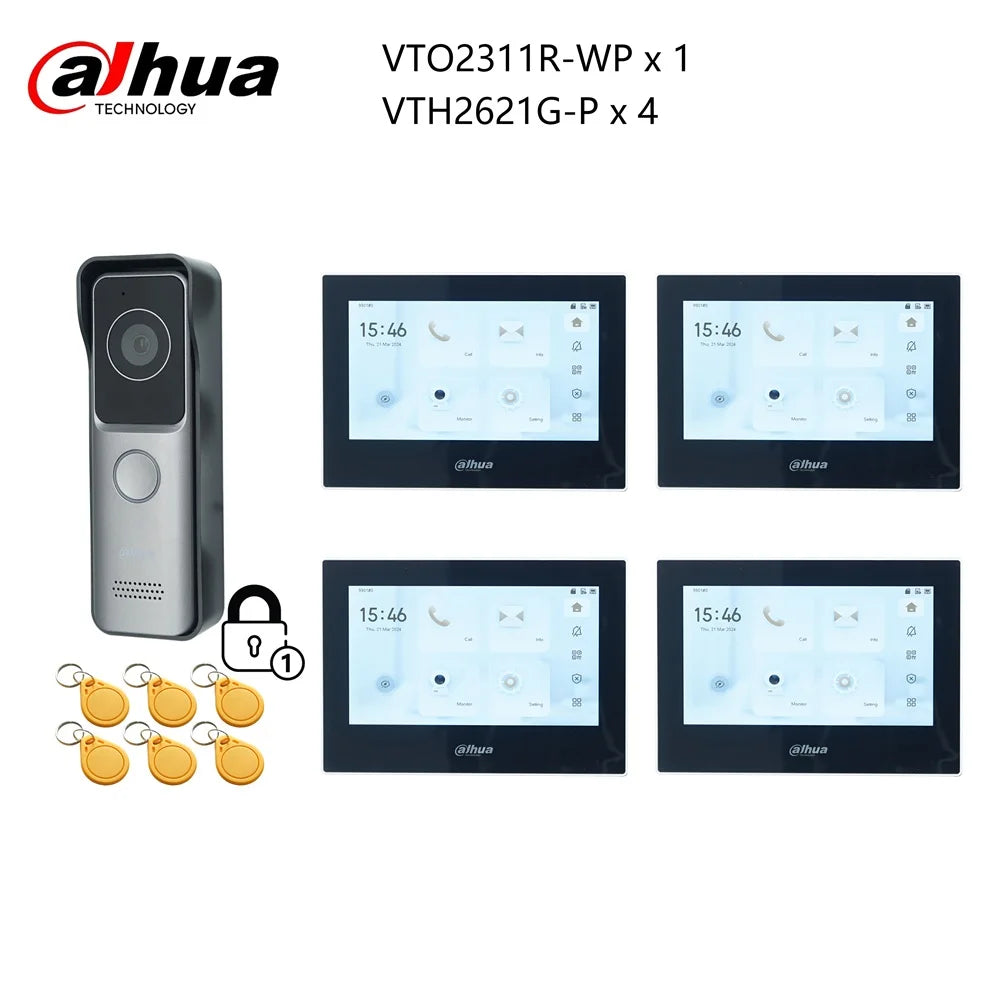

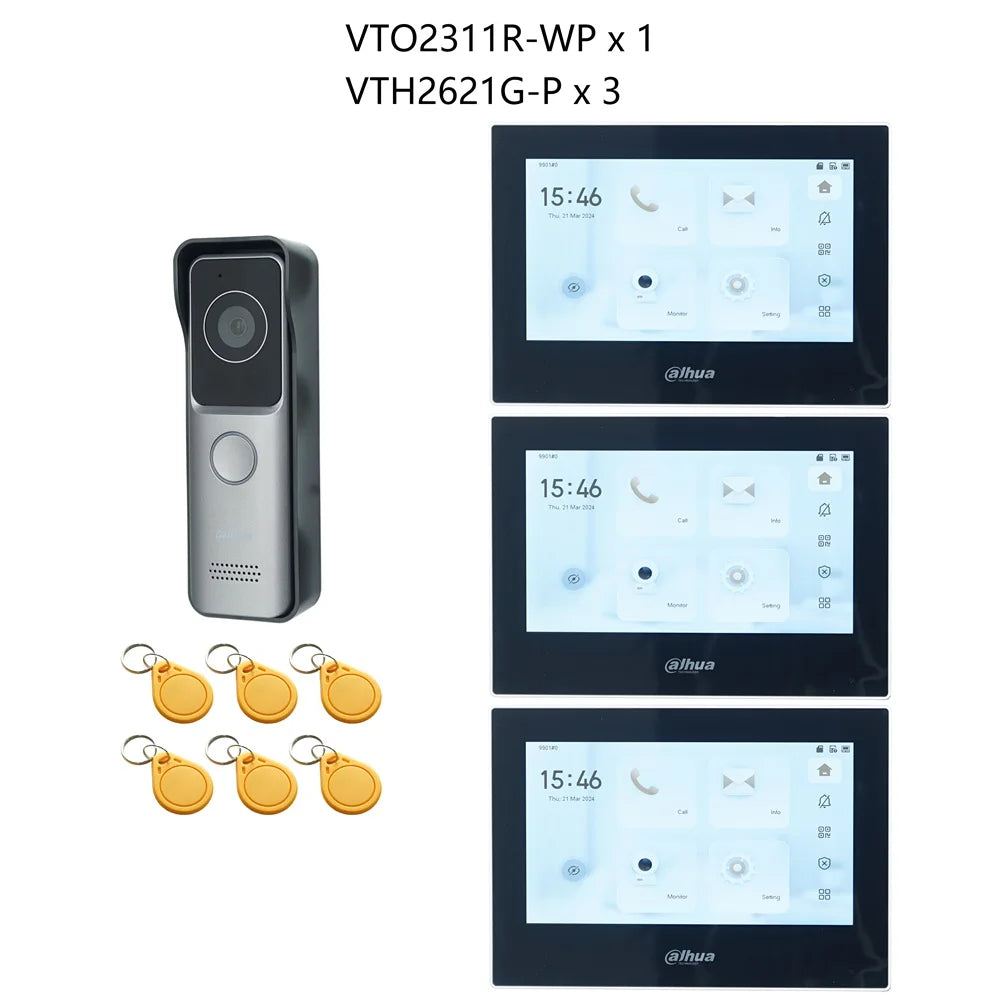

One button doorbell supports Max up call to 1 Indoor main monitor and 9 Indoor extended monitors.
The doorbell also can be used alone, can call to the phone app directly.

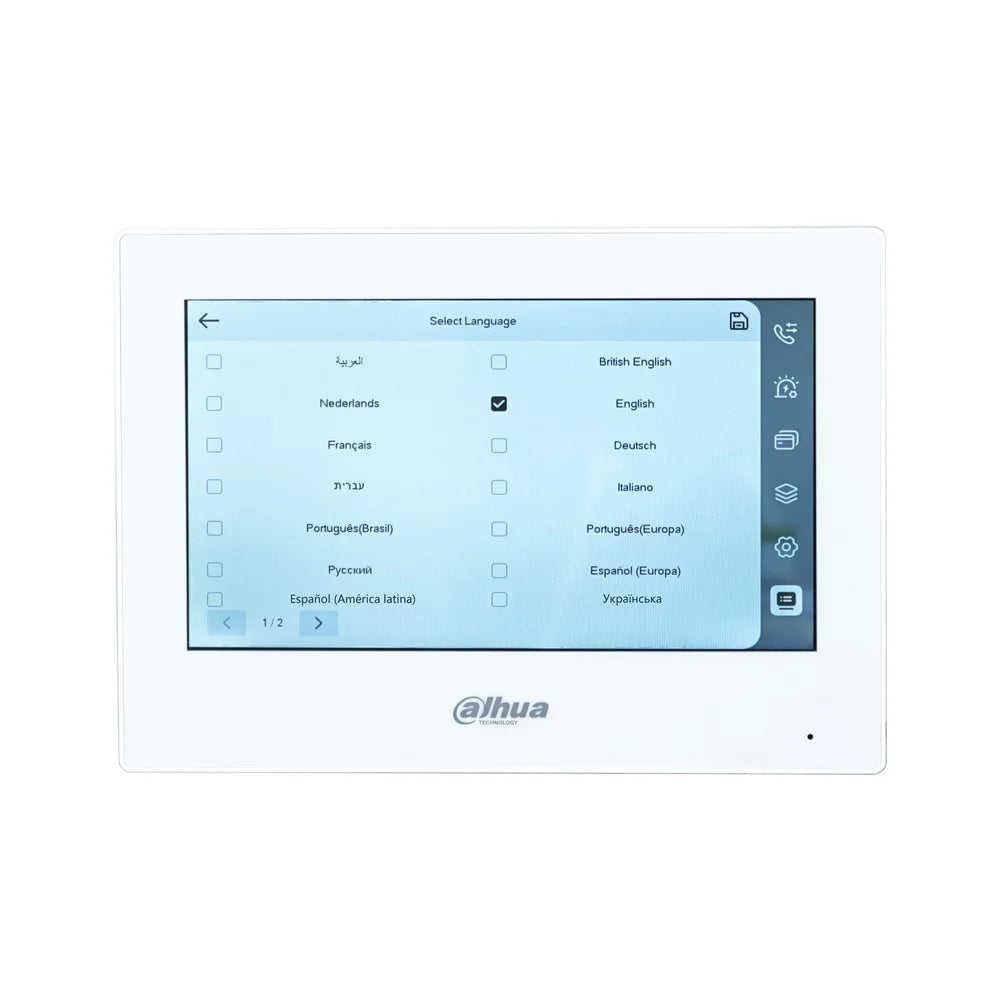

English, Russian, Dutch, French, German, Italian, Polish, Portuguese, Spanish, Ukrainian, Arabic, Bulgarian, Czech, Danish, Finnish, Greek, Hungarian, Latvian, Lithuanian, Romanian, Serbian, Slovak, Slovenian, Vietnamese, Turkish, Portuguese (Brazil), Spanish (Latin America);
Scenes 1 :Work with 802.3af PoE monitor

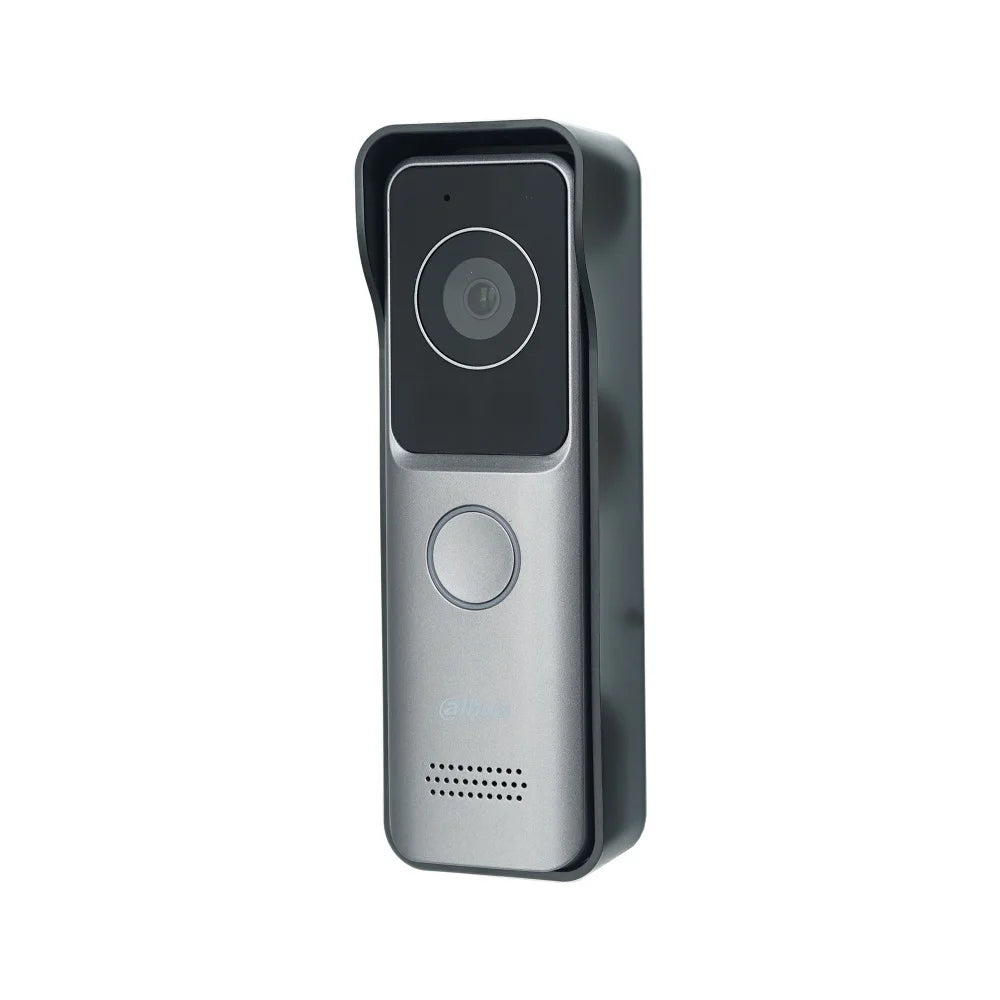

Door Station model:VTO2311R-WP
System | ||||||||||
Main Processor |
Embedded Processor |
|||||||||
Button Type |
Mechanical |
|||||||||
Interoperability |
ONVIF; CGI |
|||||||||
Network Protocol |
RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
|||||||||
Basic | ||||||||||
Camera |
1/2.8" CMOS 2-MP HD camera |
|||||||||
Field of View |
H: 110°; V: 62°; D: 133° |
|||||||||
WDR |
120 dB |
|||||||||
Noise Reduction |
3D NR; 2D NR |
|||||||||
Video Compression |
H.264; H.265 |
|||||||||
Video Resolution |
Main stream: 720p, WVGA, D1, and CIF； |
|||||||||
Sub stream: 1080p, WVGA, D1, QVGA, and CIF | ||||||||||
Video Frame Rate |
PAL: 25 fps |
|||||||||
NTSC: 30 fps | ||||||||||
Video Bit Rate |
768 kbps–8 Mbps |
|||||||||
Light Compensation |
Auto IR |
|||||||||
Day/Night |
Auto (ICR)/Color/B/W; Color/B/W |
|||||||||
Audio Compression |
G.711a; G.711u; PCM |
|||||||||
Audio Input |
1 |
|||||||||
Audio Output |
Built-in speaker |
|||||||||
Audio Mode |
Two-way audio |
|||||||||
Audio Enhancement |
Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction |
|||||||||
Audio Bit Rate |
16 kHz, 16 bit |
|||||||||
Function | ||||||||||
Communication Mode |
Full digital |
|||||||||
Unlock Mode |
Card; app; indoor monitor |
|||||||||
Card Type |
IC card |
|||||||||
Auto Snapshot |
Yes (SD card is inserted in the indoor monitor or door station) |
|||||||||
Leave Videos |
Yes (SD card inserted in VTH/VTO is needed) |
|||||||||
Web Configuration |
Yes |
|||||||||
Wi-Fi |
Yes |
|||||||||
Wireless Standard |
IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
|||||||||
Wireless Frequency Range |
2.4 GHz |
|||||||||
Storage |
Micro SD card (max. 256 GB) |
|||||||||
Performance | ||||||||||
Card Reading Distance |
0 cm–3 cm (0"–1.18") |
|||||||||
Issue Card Locally |
Yes |
|||||||||
Casing |
PC+ABS |
|||||||||
Capacity | ||||||||||
Card Capacity |
3000 |
|||||||||
Port | ||||||||||
Exit Button |
1 |
|||||||||
Door Status Detection |
1 |
|||||||||
Lock Control |
1 |
|||||||||
Network Port |
1 × RJ-45 10/100 Mbps Ethernet port |
|||||||||
Alarm | ||||||||||
Tamper Alarm |
Yes |
|||||||||
General | ||||||||||
Appearance color |
Light grey |
|||||||||
Power Supply |
12–33 VDC, 1 A ; Standard PoE |
|||||||||

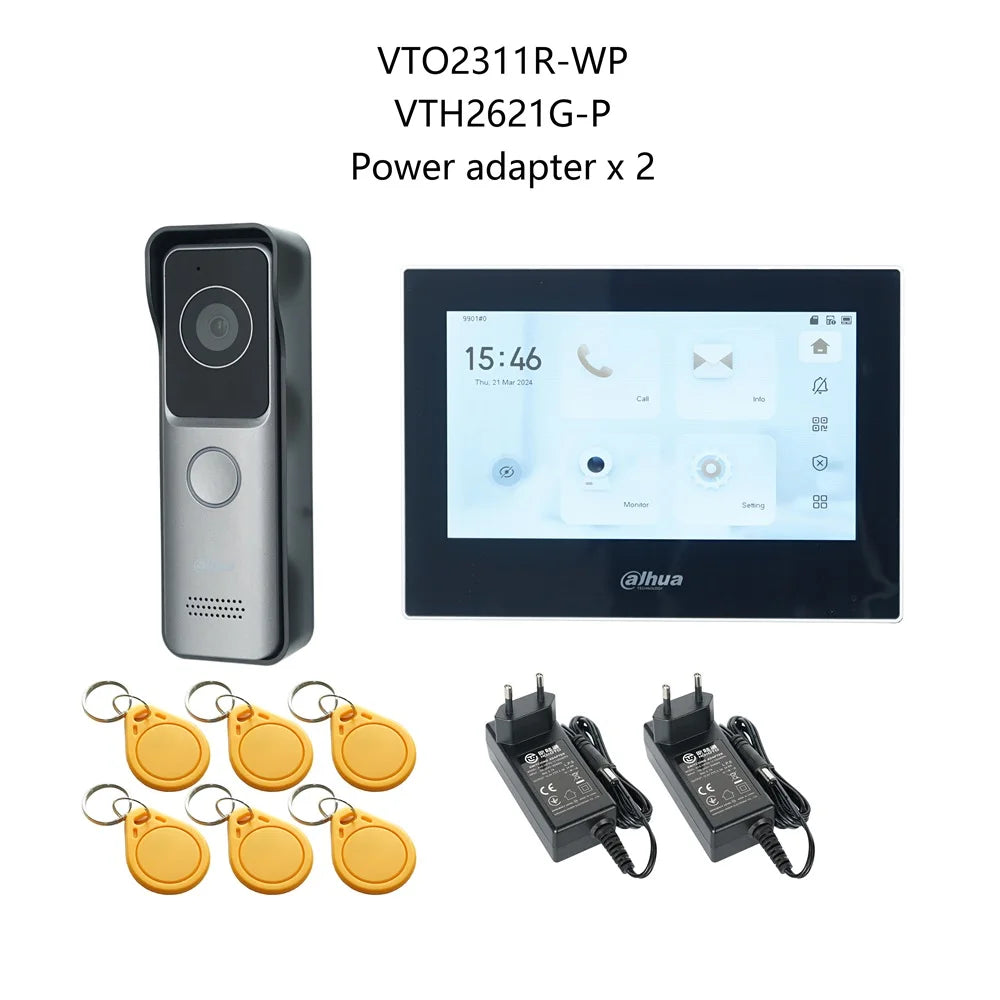

Power Adapter |
Optional |
|||||||||
Installation |
Surface Mount |
|||||||||
Certifications |
CE; FCC |
|||||||||
Accessory |
Included: Alarm power ribbon cable, rain cover |
|||||||||

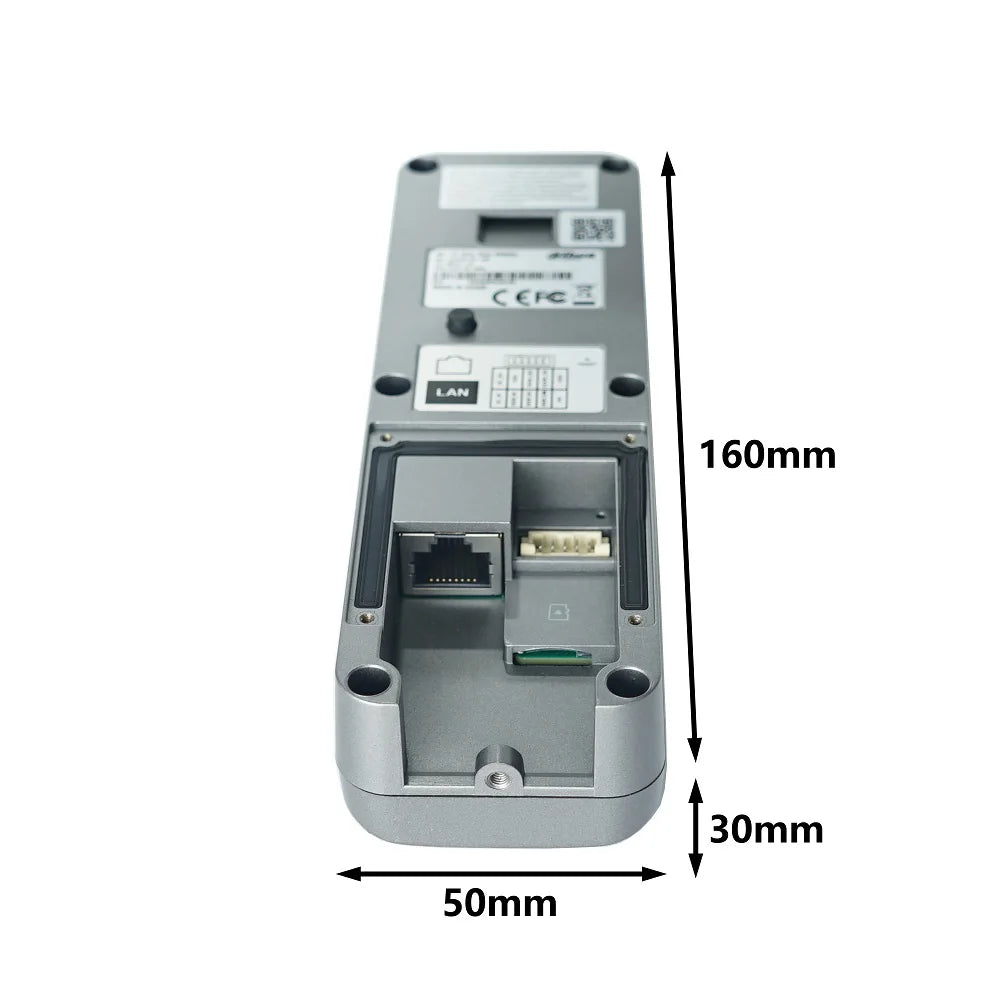

Product Dimensions |
160 mm × 50 mm × 30 mm (6.30" × 1.97" × 1.18") |
|||||||||
Protection |
IP65 |
|||||||||
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|||||||||
Operating Humidity |
10%–90% (RH), non-condensing |
|||||||||
Operating Altitude |
0 m–3,000 m (0 ft–9,842.51 ft) |
|||||||||
Power Consumption |
≤ 3.5 W (standby), ≤ 6 W (working) |
|||||||||
Gross Weight |
0.4 kg (0.88 lb) |
|||||||||
Net Weight |
0.18 kg (0.40 lb) |
|||||||||

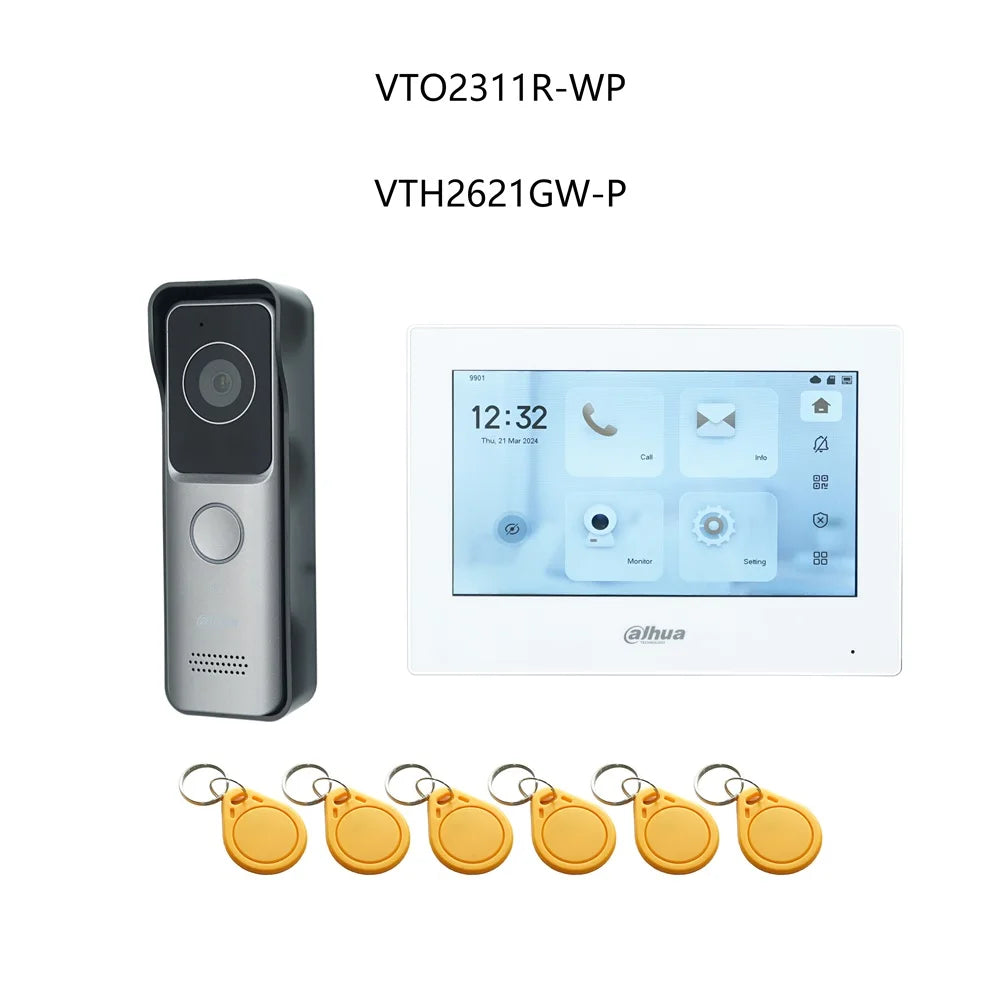

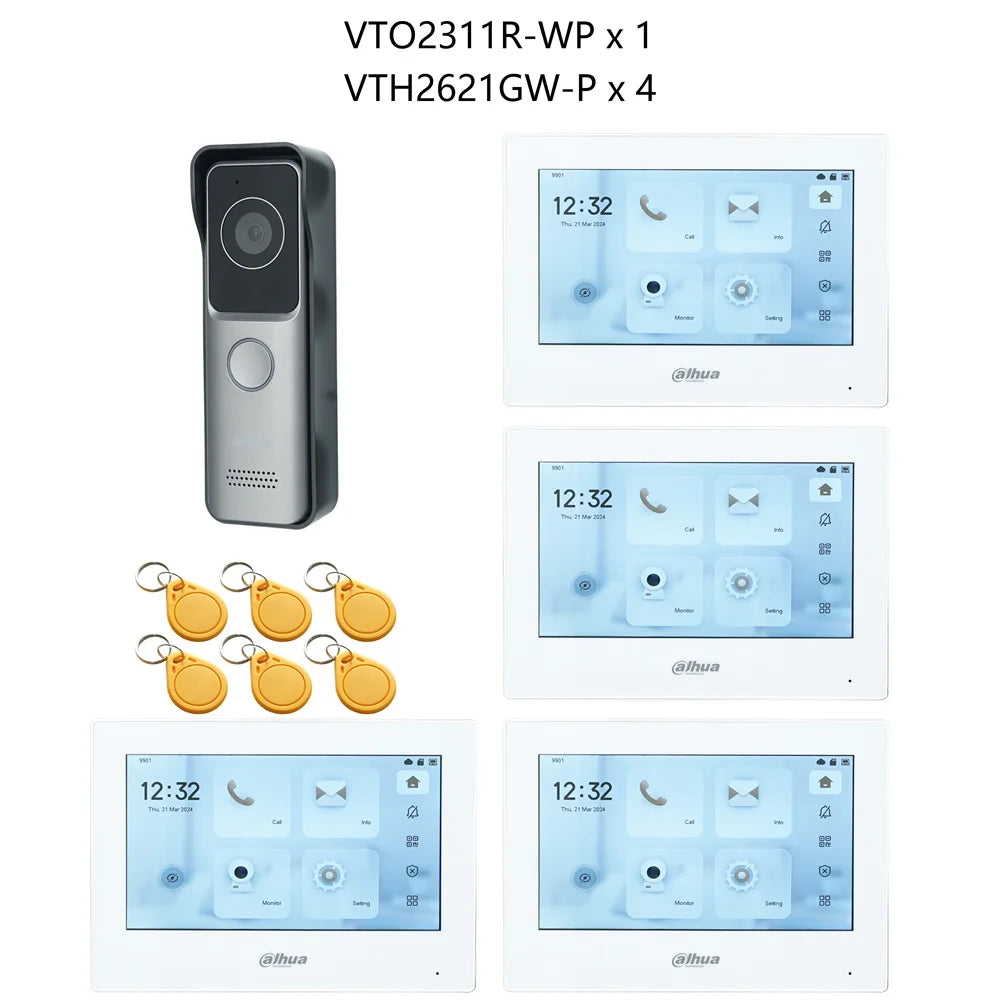

Indoor Monitor model : VTH2621GW-P / VTH2621G-P
System | |||||||||
Main Processor |
Embedded processor |
||||||||
Operating System |
Embedded Linux operating system |
||||||||
Network Protocol |
IPv4; FTP; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP; SIP |
||||||||
Basic | |||||||||
Screen Type |
Capacitive touchscreen |
||||||||
Display |
7" TFT |
||||||||
Screen Resolution |
1024 × 600 |
||||||||
Audio Compression |
G.711a; G.711u; PCM |
||||||||
Audio Input |
1 |
||||||||
Audio Output |
Built-in speaker |
||||||||
Audio Mode |
2-channel |
||||||||
Audio Enhancement |
Echo suppression |
||||||||
Audio Bit Rate |
16 kHz; 16 bit |
||||||||
Function | |||||||||
Communication Mode |
Full digital |
||||||||
Information Release |
Receive and view text information released by the management center |
||||||||
DND Mode |
Do not disturb period can be set; Do not disturb mode |
||||||||
Number of Extensions |
Villa: 9 |
||||||||
Apartment: 4 | |||||||||
Performance | |||||||||
Casing |
PC + ABS |
||||||||
Port | |||||||||
Alarm Input |
6 |
||||||||
Alarm Output |
1 |
||||||||
Power Output |
1 (12 V/200 mA) |
||||||||
Door Bell |
Yes (use any alarm input port) |
||||||||
Network |
One 10/100 Mbps Ethernet |
||||||||
Alarm | |||||||||
SOS |
Yes |
||||||||
General | |||||||||
Color |
White |
||||||||
Power Supply |
12 VDC 1A; |
||||||||
Standard PoE (36–57 V, 0.35 A) | |||||||||
Installation |
Surface Mount |
||||||||
Certifications |
CE; FCC |
||||||||
Accessory |
Bracket and alarm ribbon cable (included) |
||||||||
Dimensions |

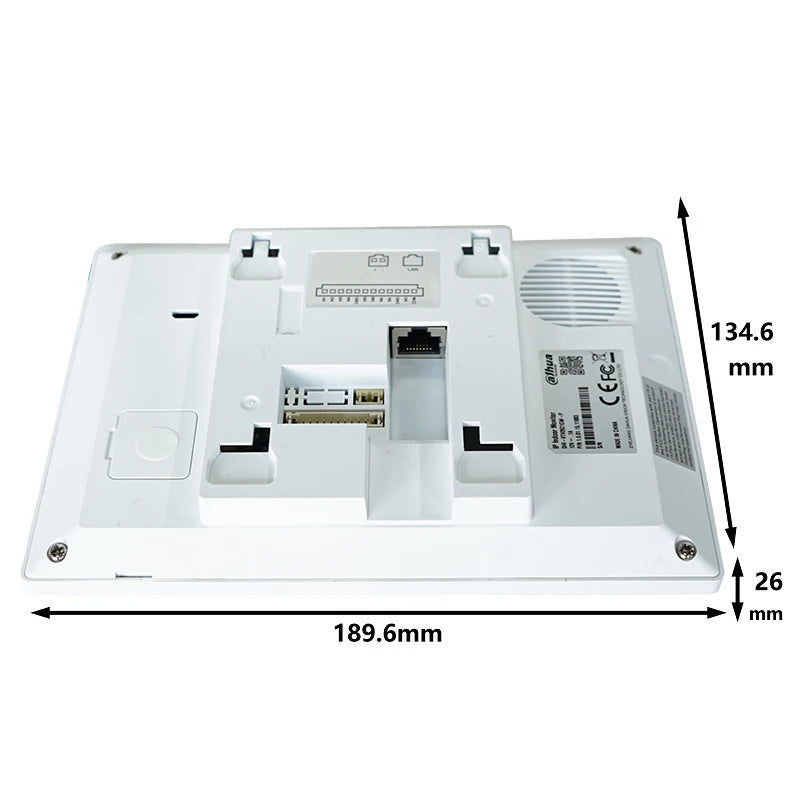

189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") |
||||||||
Operating Temperature |
–10 °C to +55 °C (+14 °F to 131 °F) |
||||||||
Operating Humidity |
10%–95% RH (non-condensing) |
||||||||
Operating Altitude |
Beneath 3,000 m (9,842.52 ft) |
||||||||
Power Consumption |
Standby ≤ 2 W; working ≤ 6 W |
||||||||
Net Weight |
0.34 kg (0.74 lb) |
||||||||
Gross Weight |
0.58 kg (1.27 lb) |
||||||||
