A Resin Printer Is a Foundry That Fits on a Bench.
There is a threshold in manufacturing where an idea stops being a drawing and becomes an object you can hold, measure and hand to someone. For most of industrial history that threshold was a tooling cost — a mould, a die, a minimum order quantity that made small runs impossible. Resin printing collapsed that threshold. A dental model, a miniature, a jewellery master, an engineering prototype or a replacement gasket can now be born at a desk, in the evening, at a precision that used to require a machine shop.

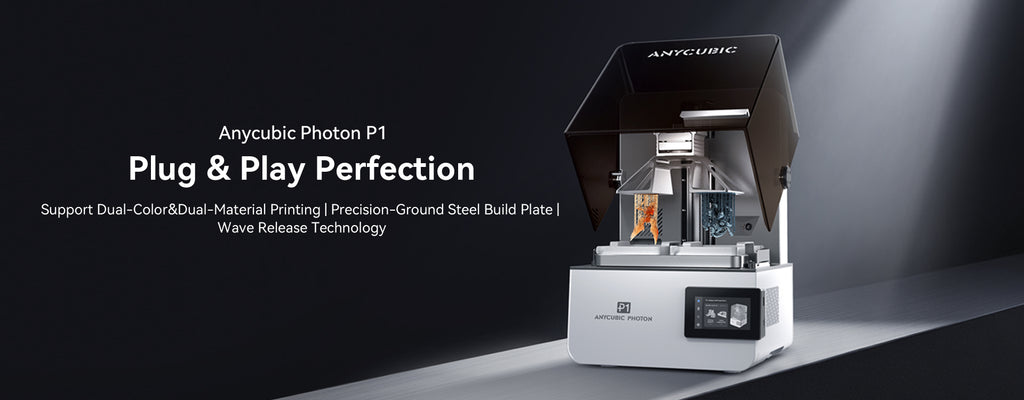

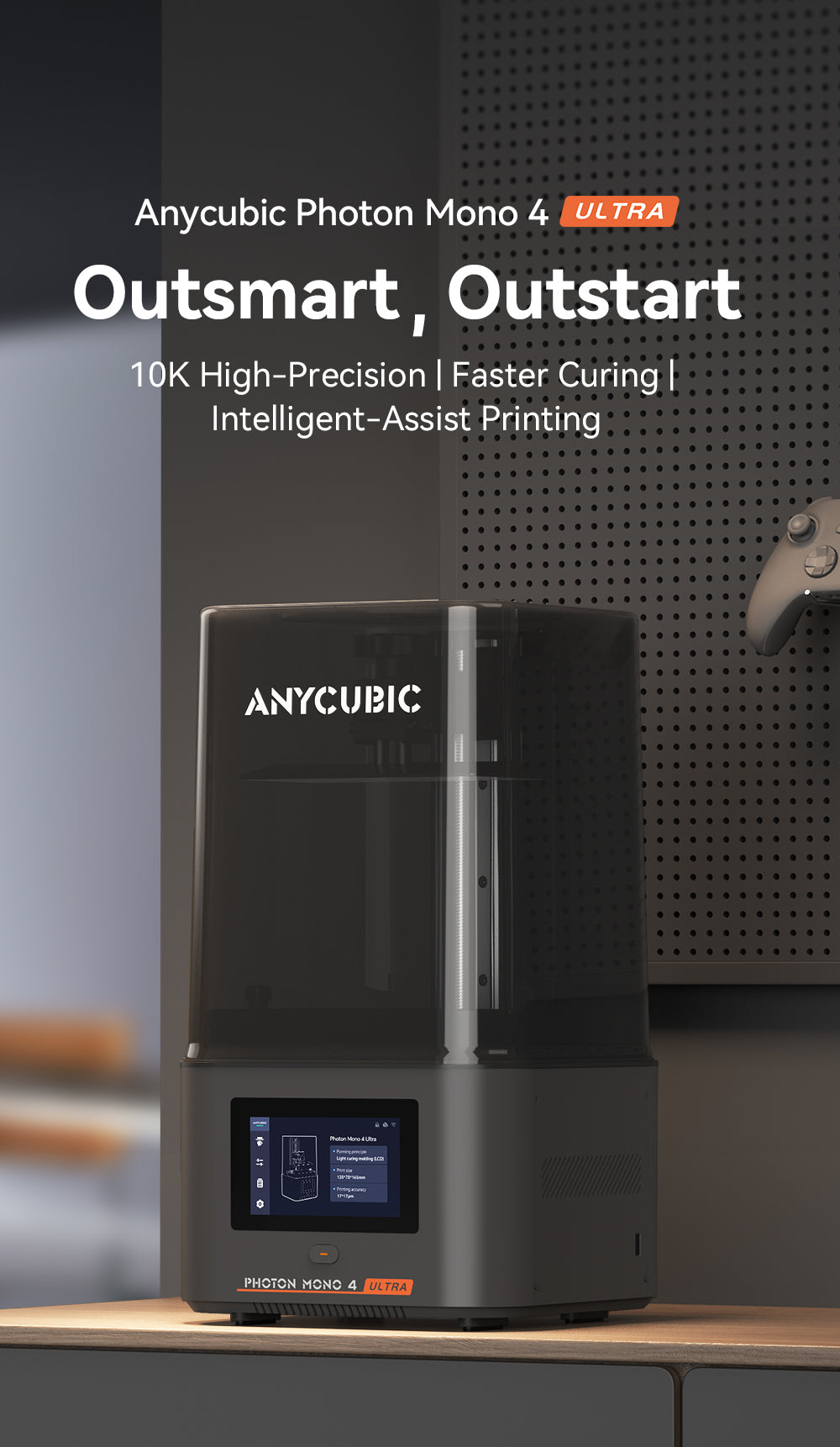

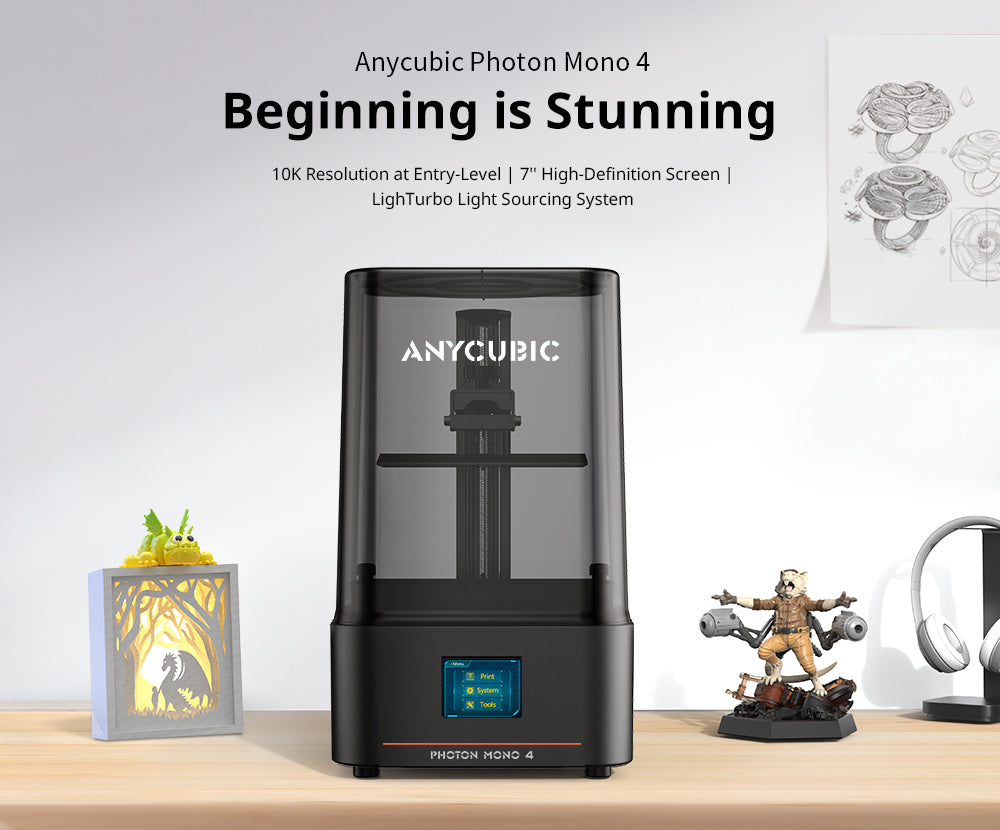

This listing is the ANYCUBIC resin ecosystem rather than a single box: the Photon Mono 4 and Mono 4 Ultra for efficient everyday work, the Photon Mono M7 and M7 Pro for larger builds and faster layer times, the Photon Mono M7 Max for volume work, the Photon P1 for buyers who want the newer-generation platform, and the Wash and Cure 3, 3 Plus and 3 Max post-processing stations that turn a finished print into a finished part. The specification ladder is honest about what money buys. Entry models pair a 6.6-inch monochrome exposure screen at 4K+ (4096 × 2560 px) with a 300:1 contrast ratio and a parallel matrix of fifteen LEDs. Step up and the screen grows to 9.1 or 10.1 inches, resolution climbs through 6K (5760 × 3600) to 12K (11520 × 5120), contrast reaches 480:1, and layer times drop below a second on the fastest platforms. Print volume grows with the platform, from roughly 5.6 × 3.5 × 6.5 inches up to a 7.8 × 7.7 × 5 inch build area, and power draw scales from 48W to 100W accordingly.
What does not change across the range is the operating logic. Each machine uses a monochrome LCD masking a parallel LED matrix, which is why layer times are measured in seconds rather than minutes, and why the contrast ratio matters more than the marketing wattage — higher contrast means crisper edges and less light bleed into fine detail. Manual four-point levelling keeps the build plate honest without a sensor that drifts, and the Wash and Cure stations close the loop with solvent washing and uniform UV curing, the two steps that decide whether a print is merely printed or actually usable. Choose the model by the parts you intend to make, not by the specification you can afford: small, dense detail favours resolution, large hollow shells favour volume, and high-throughput shops favour whichever platform has the fastest layer time at the size they actually print.
Every industrial revolution begins with a small object someone needed and could not buy.
Key Features
- ✦ Full ANYCUBIC resin range — Photon Mono 4, Mono 4 Ultra, Mono M7, M7 Pro, M7 Max and Photon P1
- ✦ Wash and Cure 3 / 3 Plus / 3 Max post-processing stations available in the same listing
- ✦ Monochrome LCD exposure screens from 6.6 inches up to 10.1 inches
- ✦ Print resolution from 4K+ (4096 × 2560 px) through 6K up to 12K (11520 × 5120 px)
- ✦ Contrast ratios of 300:1 to 480:1 for cleaner edges and less light bleed
- ✦ Parallel matrix LED light source — 15 to 24 LEDs depending on model
- ✦ Layer times from about 3 seconds down to 1 second or faster on the fastest platforms
- ✦ Build volumes from roughly 5.6 × 3.5 × 6.5 in up to 7.8 × 7.7 × 5 in
- ✦ Manual four-point levelling, 48W to 100W power supply depending on model

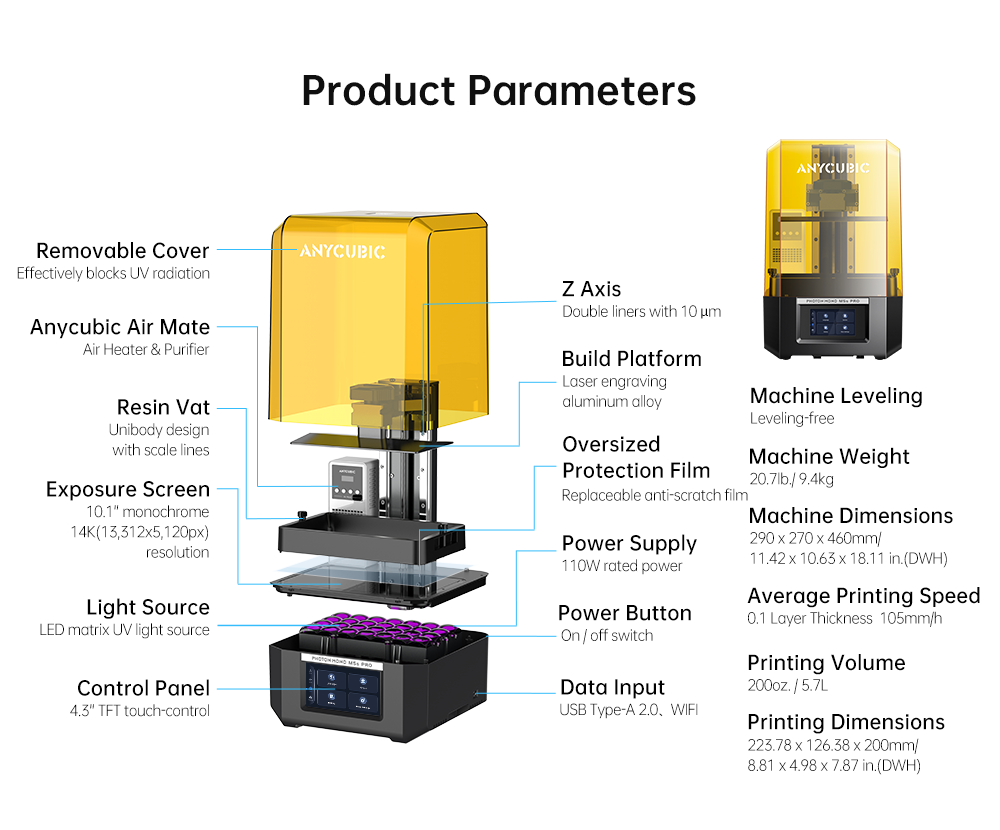

Technical Specifications
- Exposure Screen: 6.6 in / 9.1 in / 10.1 in monochrome LCD by model
- Print Accuracy: 4K+ 4096 × 2560 px, 6K 5760 × 3600 px, up to 12K 11520 × 5120 px
- Contrast Ratio: 300:1 to 480:1 depending on model
- Light Source: Parallel matrix LED array (15 to 24 LEDs by model)
- Print Dimensions: From approx. 5.6 × 3.5 × 6.5 in up to 7.8 × 7.7 × 5 in
- Layer Time: Approximately 3s down to 1s or faster per layer
- Print Speed: Approximately 1.97 to 3.15 in/hr by model
- Power Supply: 48W / 80W / 100W depending on model

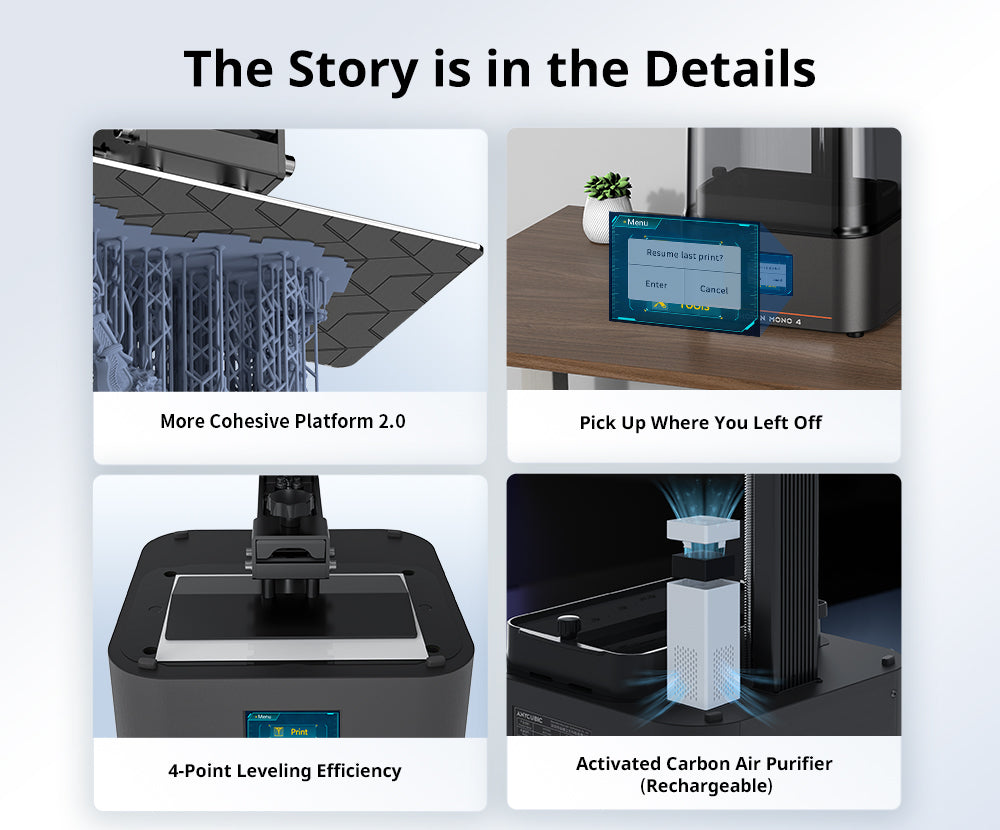

- Levelling: Manual four-point build plate levelling

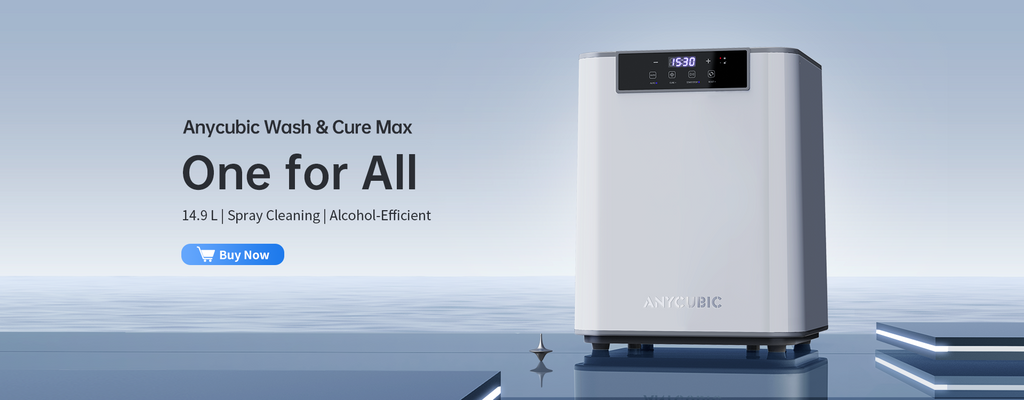

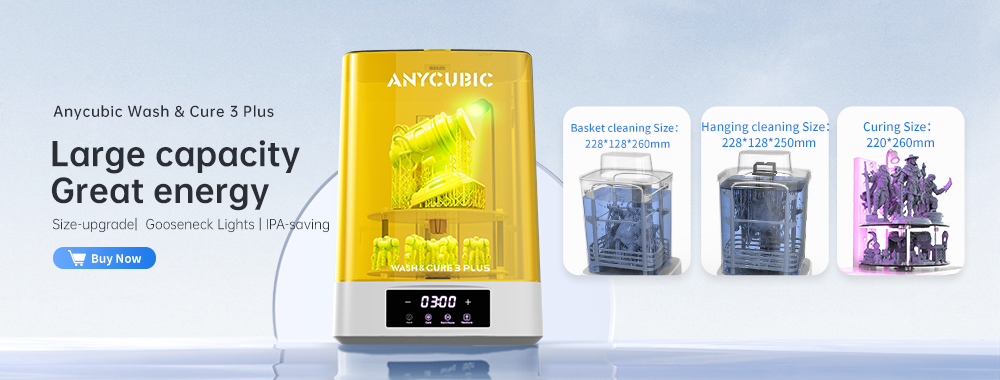

- Post-Processing: Wash and Cure 3, 3 Plus and 3 Max stations available
- Models in Range: Photon Mono 4, Mono 4 Ultra, Mono M7, M7 Pro, M7 Max, Photon P1
Where This Tool Belongs
The small-format end of this range suits makers who value detail over volume: miniatures and tabletop terrain, dental and orthodontic models, jewellery patterns and lost-wax masters, scale model parts and intricate mechanical fittings. The mid-range platforms — Mono M7 and M7 Pro — are where product designers and small studios live, producing enclosures, jigs, fixtures and functional prototypes in engineering resins at layer times short enough to iterate overnight. The M7 Max and Photon P1 serve production users: batch runs of identical parts, larger hollow shells for cosplay and prop work, and short-run manufacturing where injection moulding cannot be justified. Education and makerspaces standardise on a mixed fleet, using higher-resolution machines for teaching detail and larger ones for volume assignments. Whichever route you take, budget for the Wash and Cure station in the same purchase — uncured resin is the single most common reason a technically perfect print fails in the hand.
Frequently Asked Questions
Q: Which model should I buy?
Match the machine to the parts. Small, highly detailed work favours resolution, so the Mono 4 or Mono 4 Ultra class is efficient. Larger or hollow builds need print volume, which points to the M7 Pro or M7 Max. Buyers who want the newest-generation platform should look at the Photon P1.

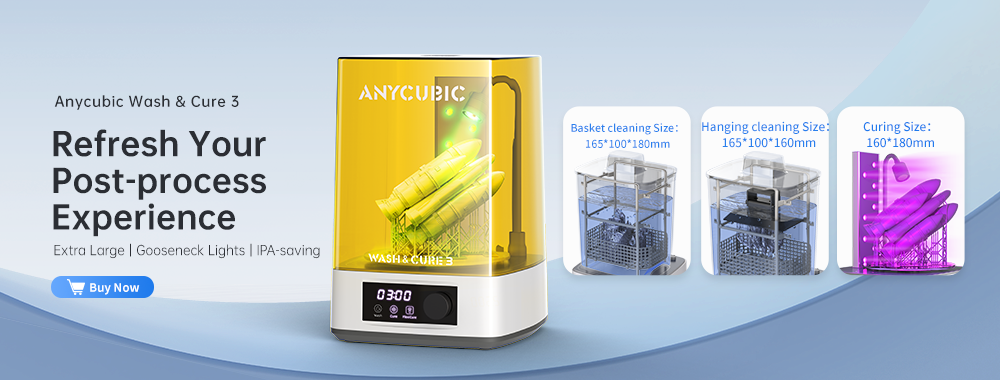

Q: Is the Wash and Cure station included?
Not automatically. Wash and Cure 3, 3 Plus and 3 Max appear as separate variants in this listing, and some bundles pair a printer with a station. Check the variant you select to confirm exactly which machine or station is included.
Q: Do I need a wash and cure station at all?
Yes, for repeatable results. Washing removes uncured resin from surfaces and cavities, and uniform UV curing develops the final mechanical properties. Skipping either step is the most common cause of sticky, brittle or dimensionally unstable prints.
Q: What is the difference between 4K, 6K and 12K here?
Resolution describes how finely the LCD masks the light. Higher pixel counts resolve finer detail, thinner support marks and tighter tolerances. Contrast ratio matters just as much, because higher contrast reduces light bleed and keeps small features crisp.
Q: How fast are these printers?
Layer times range from roughly three seconds down to one second or faster depending on the model and resin, with quoted print speeds between about 1.97 and 3.15 inches per hour. Actual throughput depends on layer height, resin and part geometry.
Q: Do the printers need a dedicated workspace?
Resin printing needs ventilation, gloves, eye protection and a clean surface, because uncured resin is a skin sensitiser. Most users set up in a garage, workshop or ventilated utility room rather than a bedroom, and store resin away from direct sunlight.
