Description

This excellent 2-stroke bicycle engine kit is equipped with a powerful and efficient 0.32gal large-capacity fuel tank, providing sufficient endurance. This well-designed engine delivers powerful torque and excellent acceleration response, ensuring seamless driving in various environments while saving fuel consumption, and achieving a perfect balance between power performance and fuel economy. Whether it's for cross-country adventure enthusiasts or professional drivers, it's your ideal choice. Come and purchase this kit, and enjoy the peak of speed and passion!

Key Features

Durable Design: Designed with premium aluminum, this engine has high hardness, wear resistance, and corrosion resistance. So it can adapt to complex environments and conditions.

Effective Cooling System: By adopting an air cooling system, the temperature of the engine can be quickly reduced, effectively preventing overheating and ensuring smooth and long-lasting driving.

Powerful Engine: The 2-strokeengine can provide higher intake and exhaust efficiency, saving energy and fuel (Fuel Consumption: Min. ≤610g/kW.h). It can provide stronger power (Max. Power: 1.9kw/7000rpm) during driving and ensure that your drive will be very smooth and powerful.

Easy to Operate: Theengine features a electronic ignition system, which leads to higher energy and ignition efficiency. So you can start the engine quickly and safely.

Large Capacity: Designed with a large capacity fuel tank (0.32 gal), this engine can work for a long time and meet the needs of long-distance driving (15-20km with full oil). It ensures reliable performance without frequent refilling.

Outstanding Performance: With its outstanding performance parameters, this well-designed engine can reach a Max. speed of 48km/h. In addition, it has extraordinary load-bearing capacity (396.8 lbs), adapting to the various needs of different groups of people, and ensuring excellent power performance in any situation.

User-friendly Design: Compared to other engine kits, this one has the upgraded CVT gearbox, which effectively improves the operational efficiency and response speed of the entire system. It is also equipped with a stable bearing to ensure its operation process smoothly.

Protective Shipping: Our product comes with protective pearl cotton to prevent any damage during transportation, ensuring that it arrives in perfect condition.

Satisfaction Guarantee: No matter what problem you encounter or have any questions, please contact us. We will reply and solve the problem for you as soon as possible.

Details

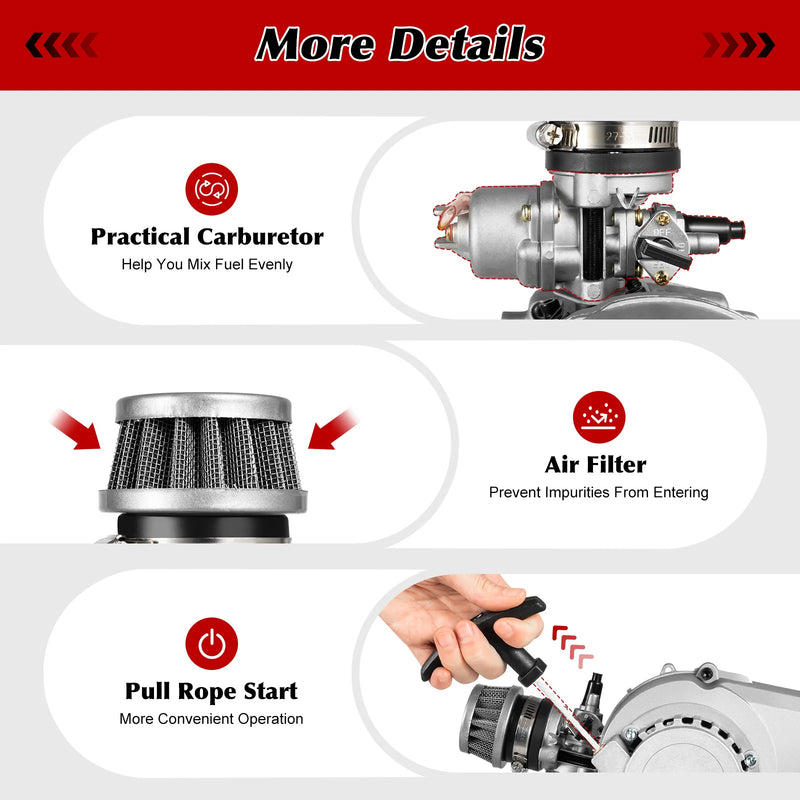

Practical Carburetor:It is equipped with a carburetor, which can mix oil and gas evenly.

Air Filter: It is equipped with an air filter, which can effectively prevent impurities from entering the cylinder.

Pull Rope Start: Compared to electric starting, the rope starting engine has a simpler structure and more convenient operation.

Application

It is fit for 49cc 2-stroke pocket bike, mini dirt bike, beach bike, ATV or scooter.

Specification

Engine Type: Single Cylinder, 2 Stroke, Air-cooling

Material: Aluminum

Color: Silver, Black

Ignition System: Electronic Ignition

Start Mode: Pull Rope Start

Shifting Way: Sprocket

Clutch: Dry Swing Block Clutch

Displacement: 49.85CC

Max. Power: 1.9kw/7000rpm

Rated Power: 1.7kw/6000rpm

Continuous Power: 1.6kw/5500rpm

Overload Power: 1.83kw/6500rpm

No-load Speed: 12500rpm

Max. Speed: 48km/h

Max. Torque: 2.7N.M/6500rpm

Max. Horsepower: 3PS

Max. Load Capacity: 180kg/396.8lbs

Min. Fuel Consumption: ≤610g/kW.h

Spark Plug: L6T or MB6A

Spark Plug Gap: 0.5mm/0.02in

Bore * Stroke: Φ44*32.8mm/1.7*1.3in

Carburetor Type: H117B

Reduction Ratio: 1:1

Noise Level: 100.7dB (SPL); 116.9dB (SWL)

Fuel Mixture (90# Gasoline : 2-stroke Engine Oil): 25:1 (Early); 30:1 (Later)

Fuel Tank Capacity: 1.2L/0.32gal

Fuel Tank Size: 23*12*12cm/9.1*4.7*4.7in

Engine Dimensions: 29*14*22.6cm/11.4*5.5*8.9in

Package Size: 34*21*23.5cm/13.4*8.3*9.3in

Net Weight: 3.85kg/7.9lbs

Gross Weight: 4.3kg/9.5lbs

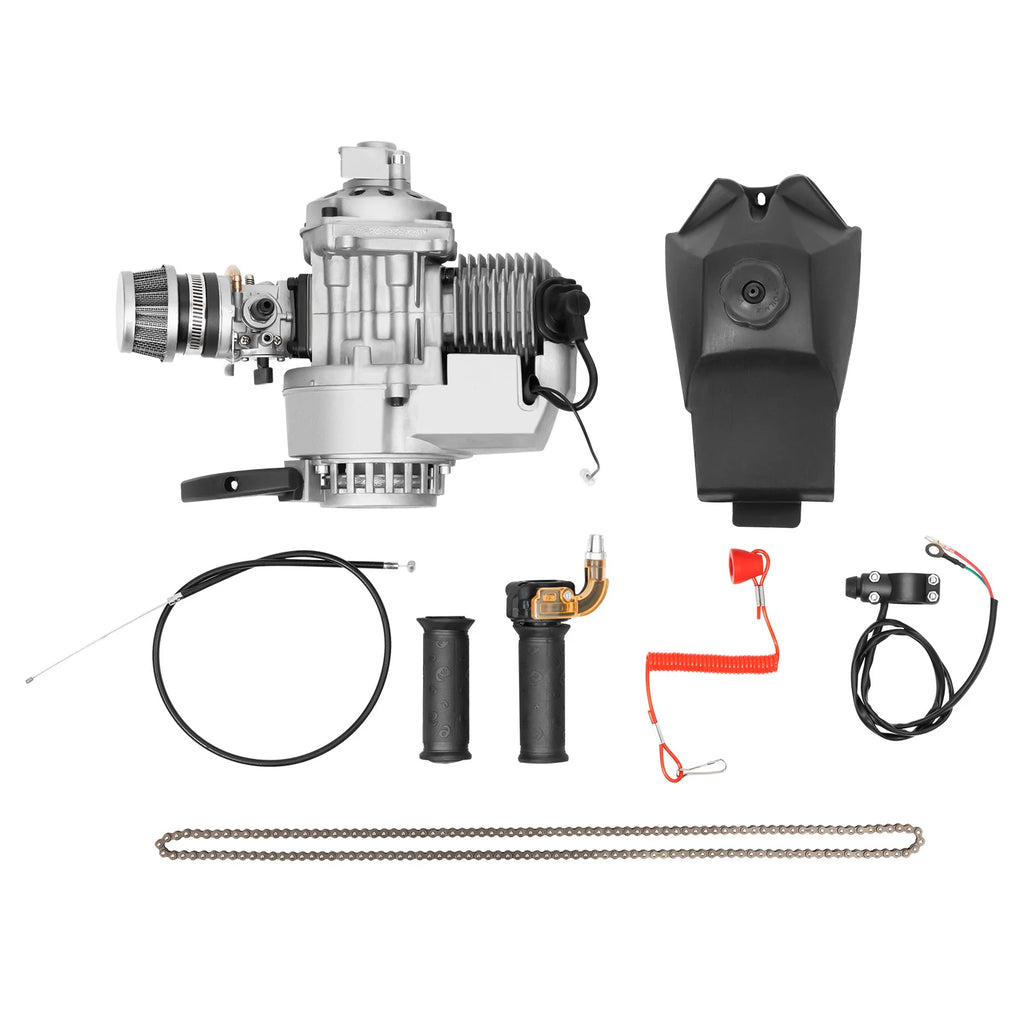

Package Included

1* Engine

1* 25H-136L Chain

1* Kill Switch

1* Throttle Grip

1* Left Grip Cover

1* Fuel Tank

1* Throttle Cable

Other Accessories for Installation

Notes

1. Please check the parameters carefully before making payment.

2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
