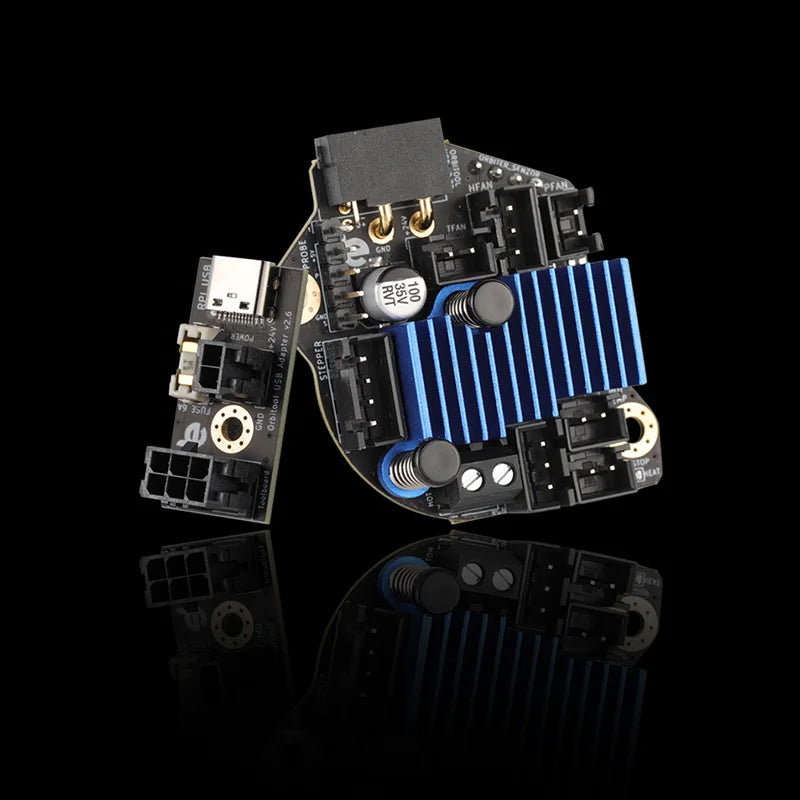

Mellow LDO Orbitool O2 USB Tool Heat Board - For Orbiter Extruder V2.0 Klipper Voron DIY 3D Printer Parts

20%セーブ
East Supplier PlatformSKU: 1005007403646581-Default Title

価格:
$100.54 $125.68

税込み

在庫:
残り13個

説明

SPECIFICATIONS

Brand Name: Mellow

Choice: yes

Hign-concerned Chemical: None

Item Type: Motherboard

Model Number: 20SB2040V3

Origin: Mainland China

semi_Choice: yes



1Mellow work team

Thank you for coming to our shop. We are committed to developing 3D printer accessories that can be used on all 3D printers. We have 3 main product lines: NF Extruders, NF Hotends and FLY Motherboards and Electronics. We hope our products will bring you better overall experience. If you have any ideas (products, use, sales), please contact us. We look forward to hearing from you.



1Description

  • This product is an official authentic product. Our store is only responsible for sales. If you have any questions, please check this website: https://github.com/RobertLorincz/Orbiter-Toolboards

  • Optimized for Orbiter v2 shape and features including orbiter sensor

  • STM32F042 microcontroller runningon 48MHz

  • Automotive USB communication with Raspberry Pl

  • Onboard LlS2DW12 accelerometerTMC2209 extruder stepper driver

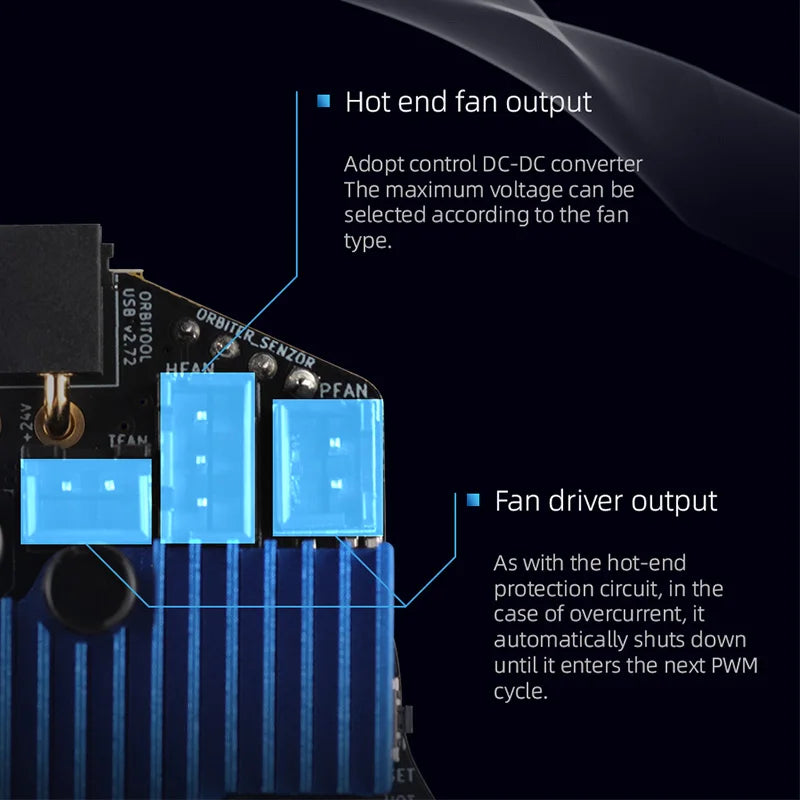

  • Direct connection to Orbiter v2 sensor2xPWM controlled fan outputs

  • DC-DC converter based Hot-end fandriver,compatible with 12/24V fantypes with RPM speed input signal

  • Hot-end temperature sensor inputcompatible with standard NTC or PT1000 temperature sensor types

  • l/O for bed level sensing

  • X-Stop sensor input

  • RGB LED driver output

  • Onboard temperature sensor

  • Advanced thermal management system




1Product  Features

  • Active short circuit protected Hot-endoutput

  • Active short circuit protected fandriver outputs

  • Active Protection circuit againstreverse power supply connectionProtection against loss of GND supply

  • Analog and digital inputs protectedagainst short to +24V supply voltage

  • USB data lines protected againstshort circuits to GND and +24V

  • RGB LED power supply pin protectedagainst short to GND

  • EMl interference and ESD protectionan all inputs and outputs

  • Heater thermal runaway protection incase of short between heater andsense thermistor wires




1Compatible

Orbiter Extruder V2.0



1Packege included

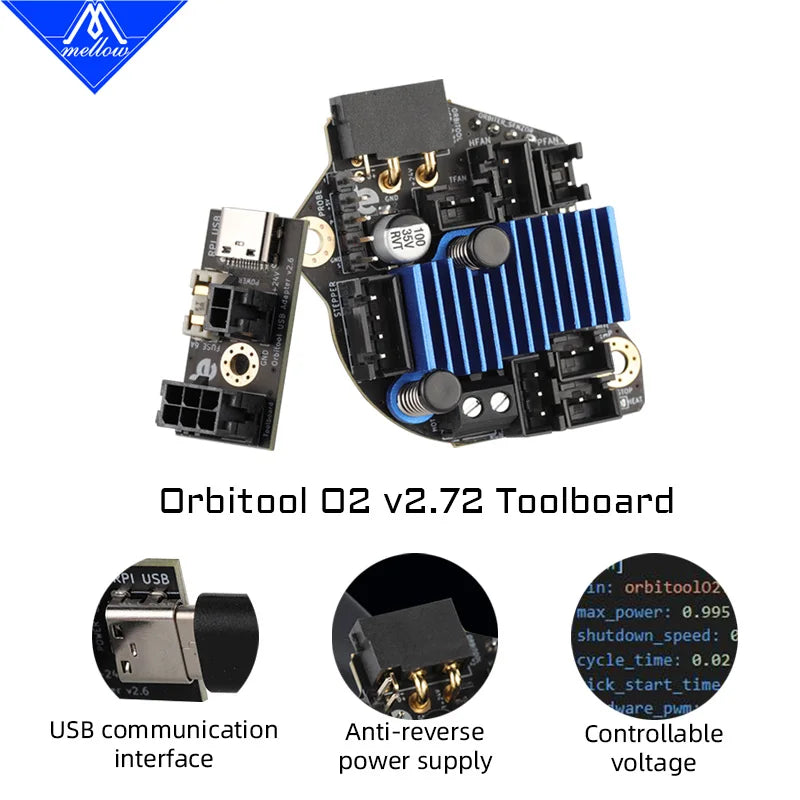

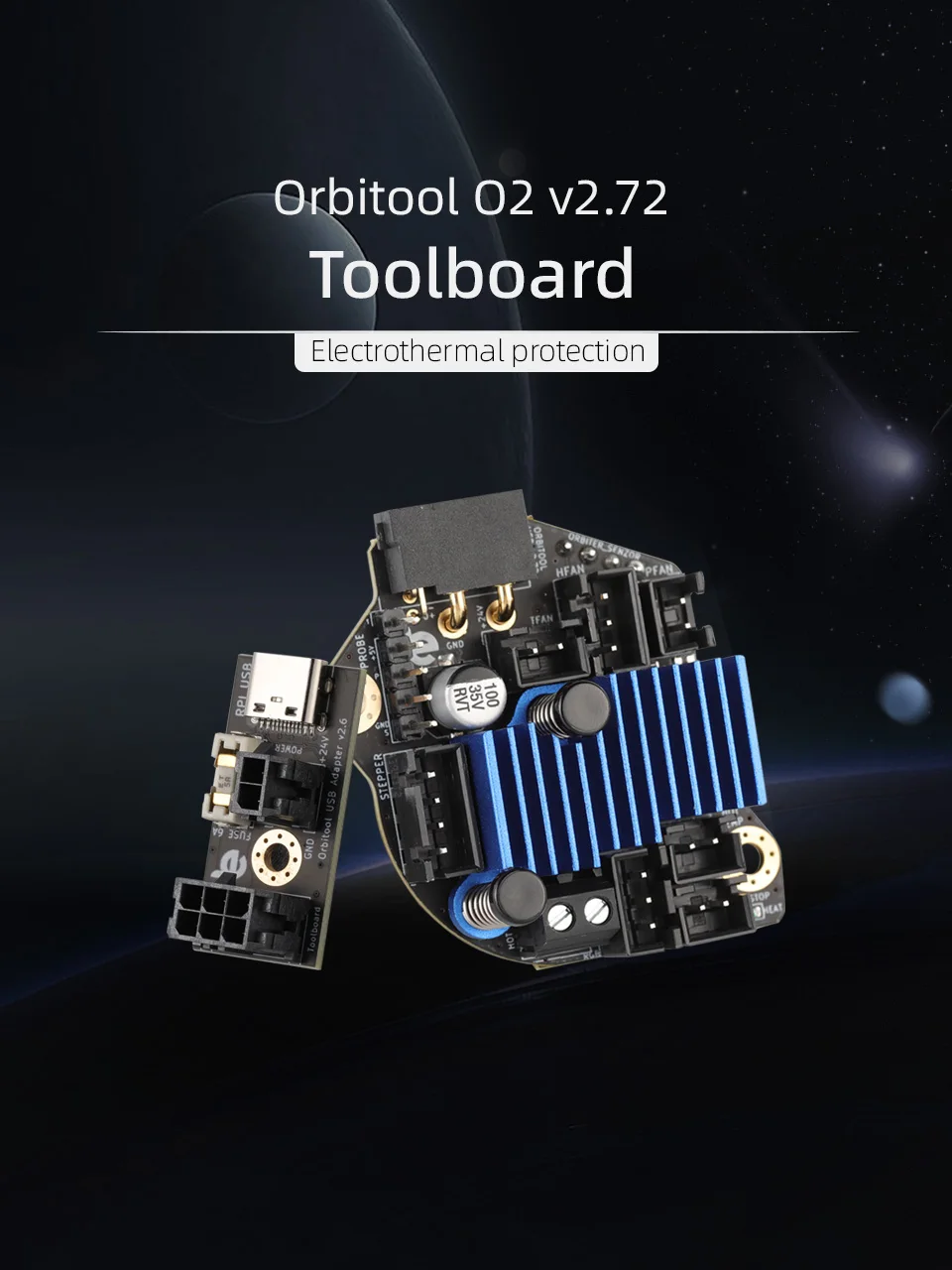

1* Orbitool O2 v2.72 Toolboard
