SPECIFICATIONS

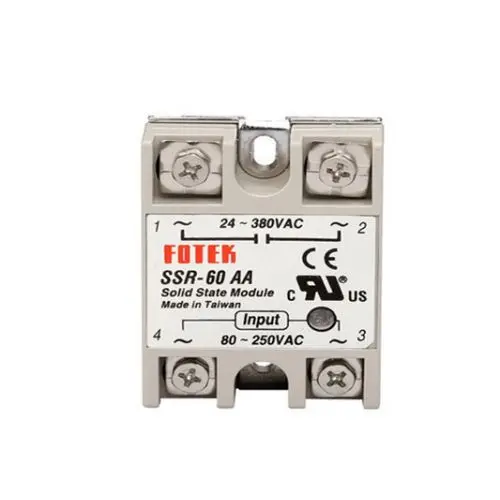

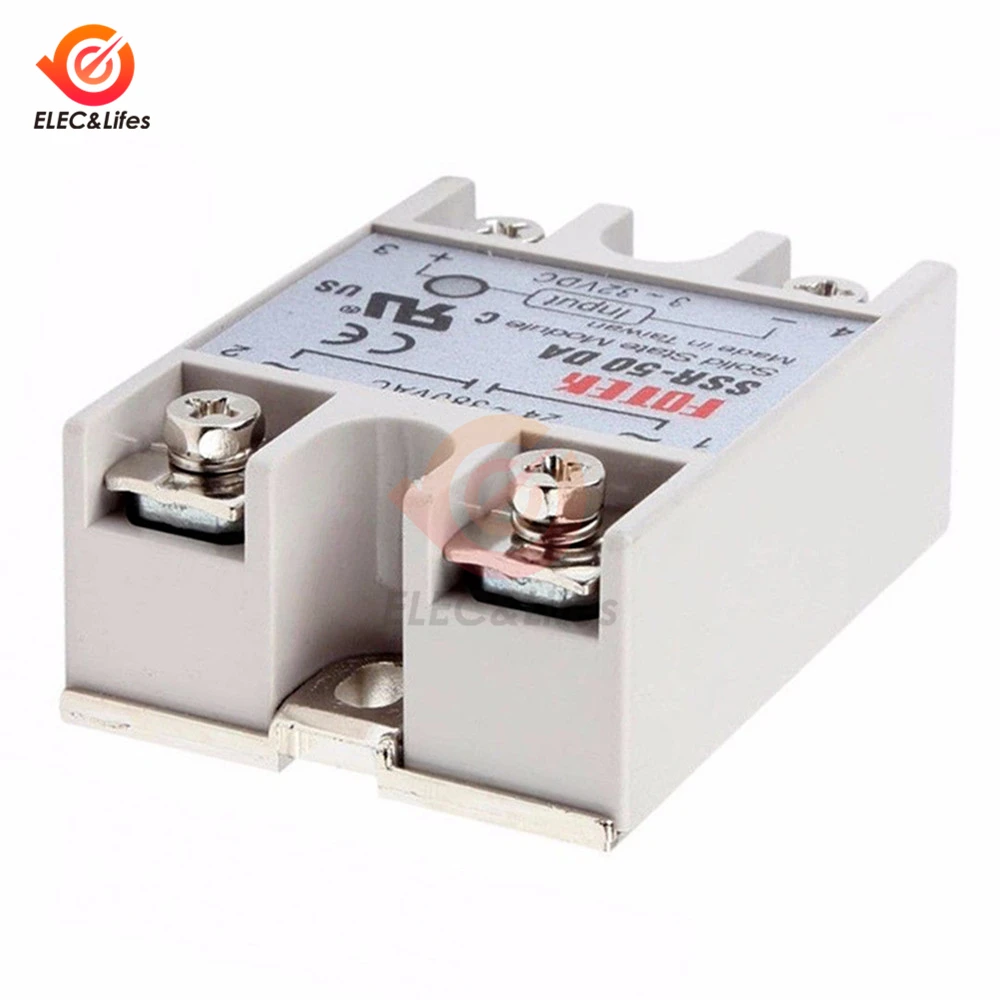

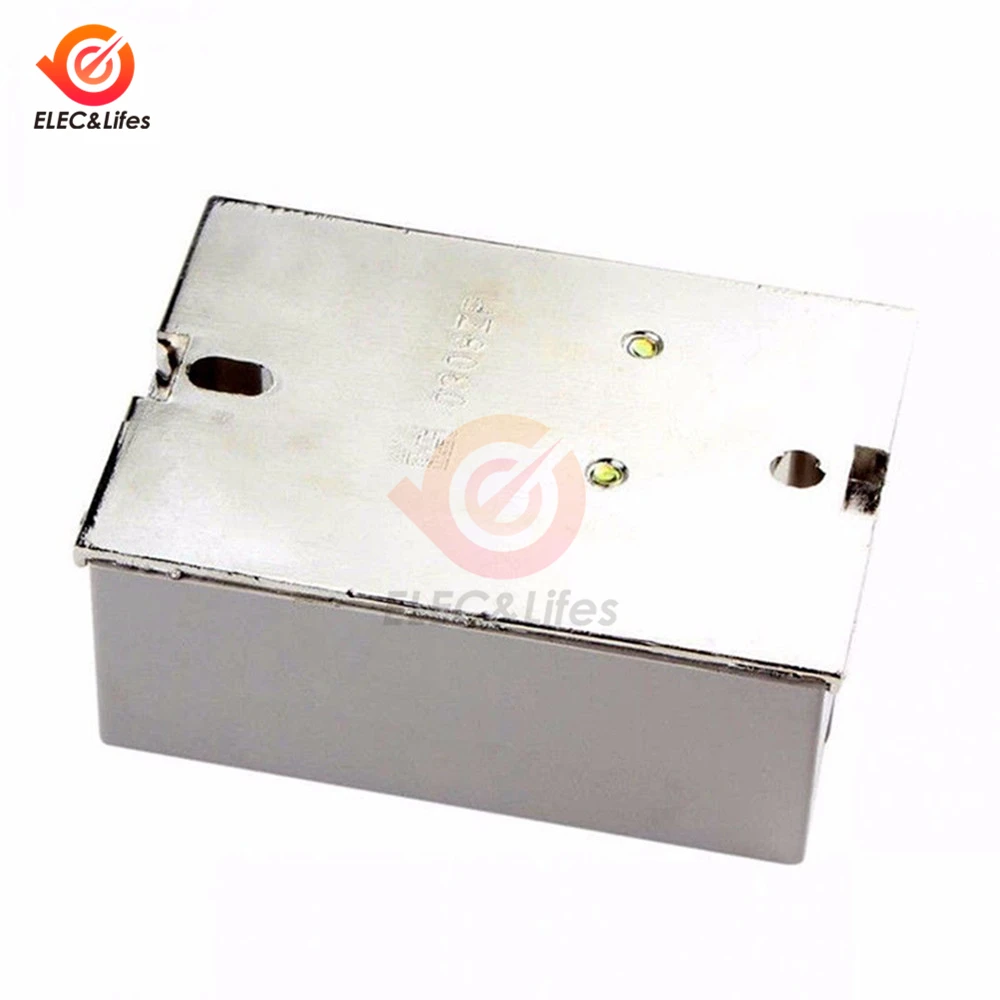

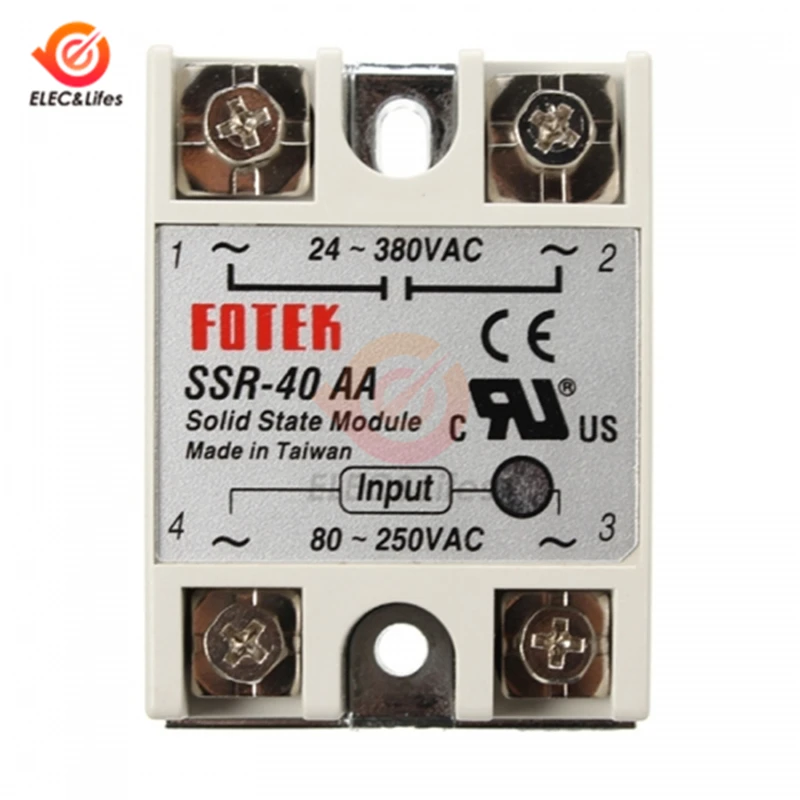

Model: AC control AC SSR white shell Single phase Solid state relay
Type: SSR -10AA 25AA 40AA 60AA 100AA
Brand Name: Aideepen
Voltage: 80-250V
Model Number: SSR-10AA/25AA/40AA/60AA/100AA
Theory: Solid State Relay
Protect Feature: Sealed
Usage: General Purpose
Contact Load: Low Power
Origin: Mainland China
Power Source: AC
is_customized: Yes
Certification: CE
Choice: yes
semi_Choice: yes
Feature:
Small volume ,small input power, non-contact,sparkless, noiseless, non-machinery wear, anti-vibration and the long life.
Main Application:
Industrial automation installment
Computer periphery connection
AC motor control
Automatic fire control and security system
Street light,signal light,traffic light,etc
Specification:
Model:SSR-10AA SSR-25AA SSR-40AA SSR-60AA SSR-100AA
Input voltage: 80-250VAC
Output current:10A/25A/40A/60A/100A
Control current:12mA
Load voltage: 24-380VAC
On-state voltage: ≤1.5V
One-off Time: ≤10ms
Off leakage Current: ≤4mA
Item size: 60*45*23mm
Package Included:
1 * SSR Solid State Relay
