Description
SPECIFICATIONS
Brand Name: Y&H
Certification: CE
Feature 1: solar power inverter
Feature 2: inverter pure sine wave
Feature 3: mppt inverter 2000w
Feature 4: solar gird inverter
Feature 5: grid tie inverter 2000W
Feature 6: inverter grid tie
High-concerned chemical: None
Input Voltage: 45-90V DC
Is Smart Device: Yes
Model Number: SUN
Origin: Mainland China
Output Current: 10A
Output Frequency: 50hz 60hz auto
Output Power: 2000W
Output Type: SINGLE
Output Voltage: 190V-260V
Size: 540x310x155mm
Type: DC/AC Inverters
Weight: 7kg
is_customized: Yes

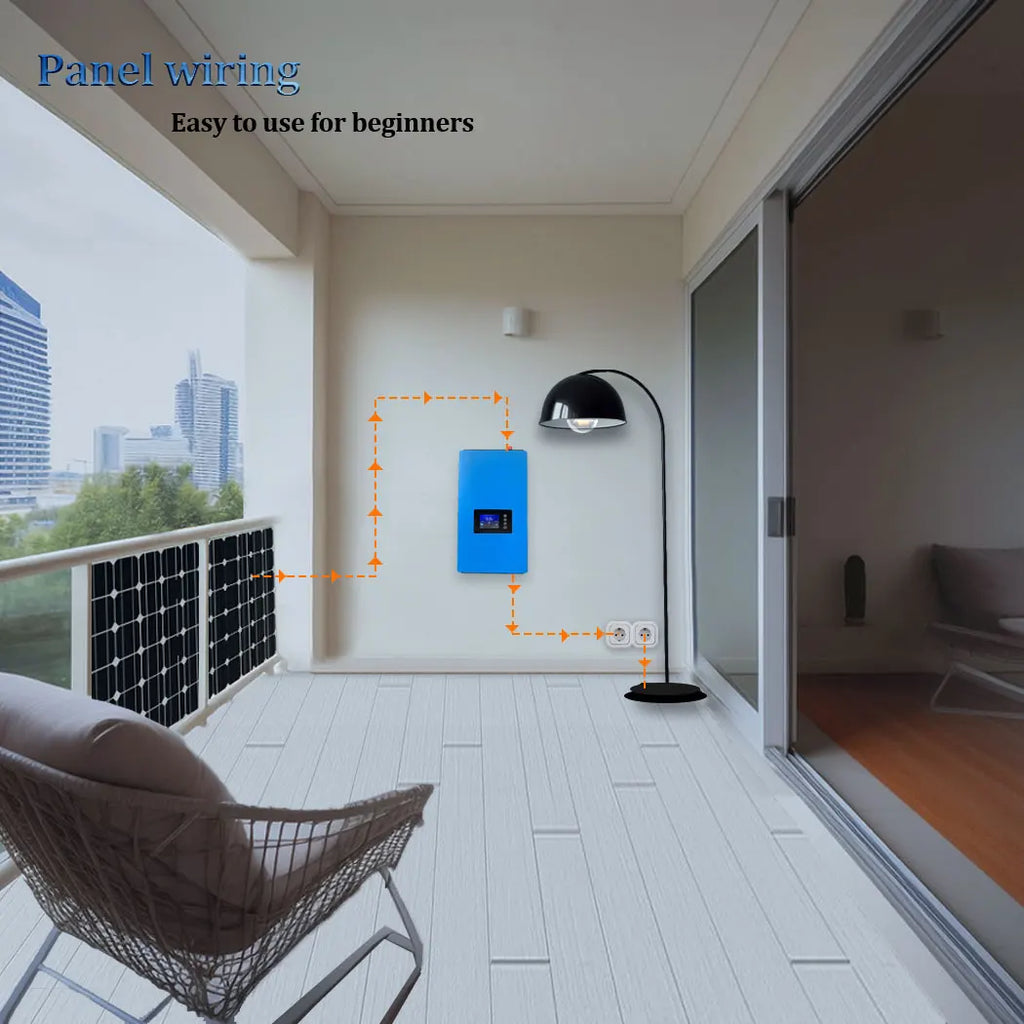

2000W Grid Tie Inverter converts DC power produced by Solar Panels to AC, connects to the grid and feed all of the power available from the panels to the AC load.Smart Micro inverter is synchronized and in-phase with the utility grid.The electric apparatus in the house will use power from the inverter first .If the Solar Panel is producing less power and the GTI cannot deliver all the power needed by the load, then power will be supplemented by the Grid.
The SUN series has VDE certification and all German stocks have relays.
Why we produced the GRID TIE INVERTER WITH LIMITER ?
It is in response to the overwhelming clamor from our customers for a product that can control the amount of power that the grid tie inverters (GTI) can generate so that the amount of excess power produced by the solar panels are reduced to insignificant levels, if not eliminated --- because in some countries,the producer pays for the excess power it gives to the distribution grid. This is because the electric power meters (the one provided by the electricity provider in the area) are not aware of the direction of power flow. In other words it only adds even if power is exported to the grid, thus, the consumers will be charged for power even if it is given to the grid, and this is the problem

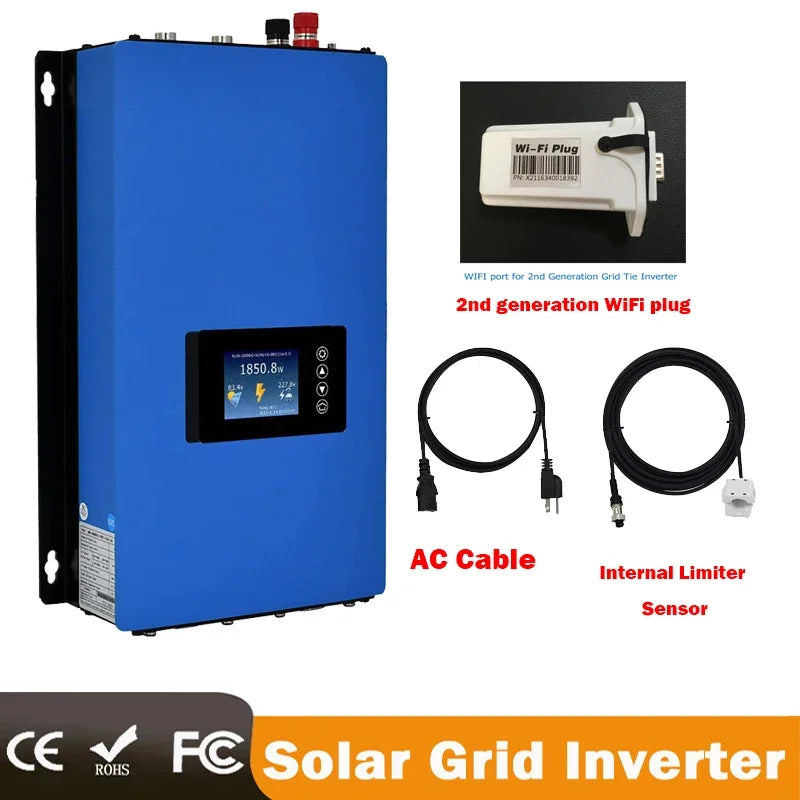

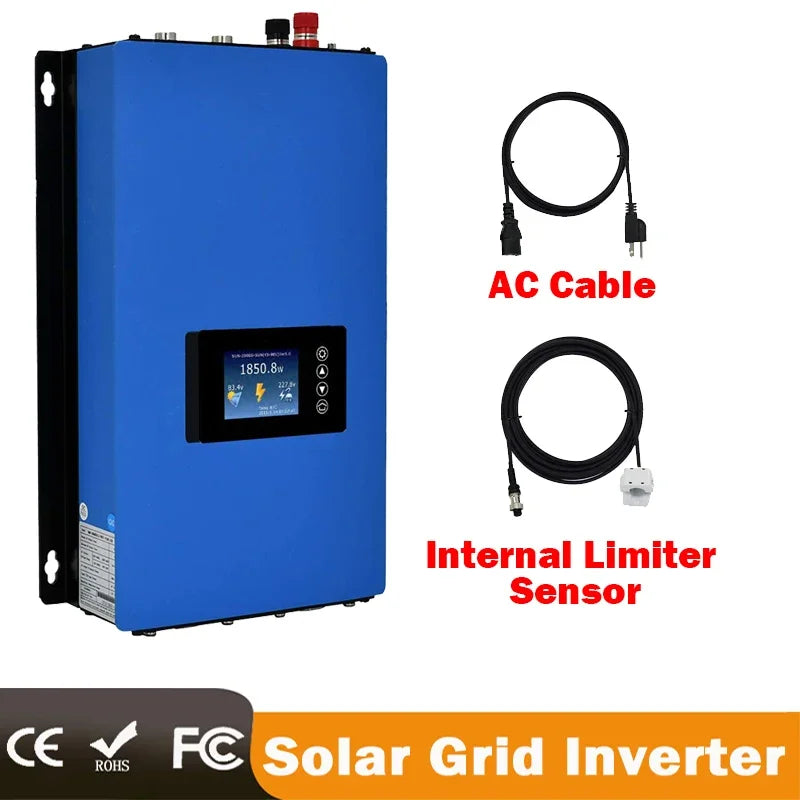

Package including:
1 x Grid Tie Inverter with Limiter
1 x AC cable
1 x Internal type Limiter clamp with sensor & 2m cable
1 x English User Manual
Specification:
INPUT DATA(DC) |
SUN-1000GTIL2-LCD |
SUN-2000GTIL2-LCD |
Input Voltage Range |
22-65VDC/45-90VDC |
45-90VDC |
Maximum Input DC Voltage |
65V/90V |
90V |
Peak Power Tracking Voltage |
25V-60V/50V-90V |
50V-90V |
Operating DC Voltage Range |
22V-65V |
45V-90V |
Start-up Voltage |
25V/49V |
49V |
OUTPUT DATA(AC) | ||
Maximum Output Power |
1000W |
2000W |
Nominal Voltage |
110VAC/230VAC |
230VAC |
Nominal Voltage Range |
95-140V/185-265V |
185-265V |
Frequency Range |
47.5-51.5 for 50gz,59.3-60.5 for 60hz |
|
Power Factor |
＞0.95 |
|
Output Waveform |
Pure Sine Wave |
|
CHARACTERISTIC DATA | ||
MPPT Effeciency |
99% |
|
Over Current Protection |
Yes |
|
Over Temperature Protection |
Yes |
|
Reverse Polarity Protection |
Yes |
|
Anit- Island Protection |
Yes |
|

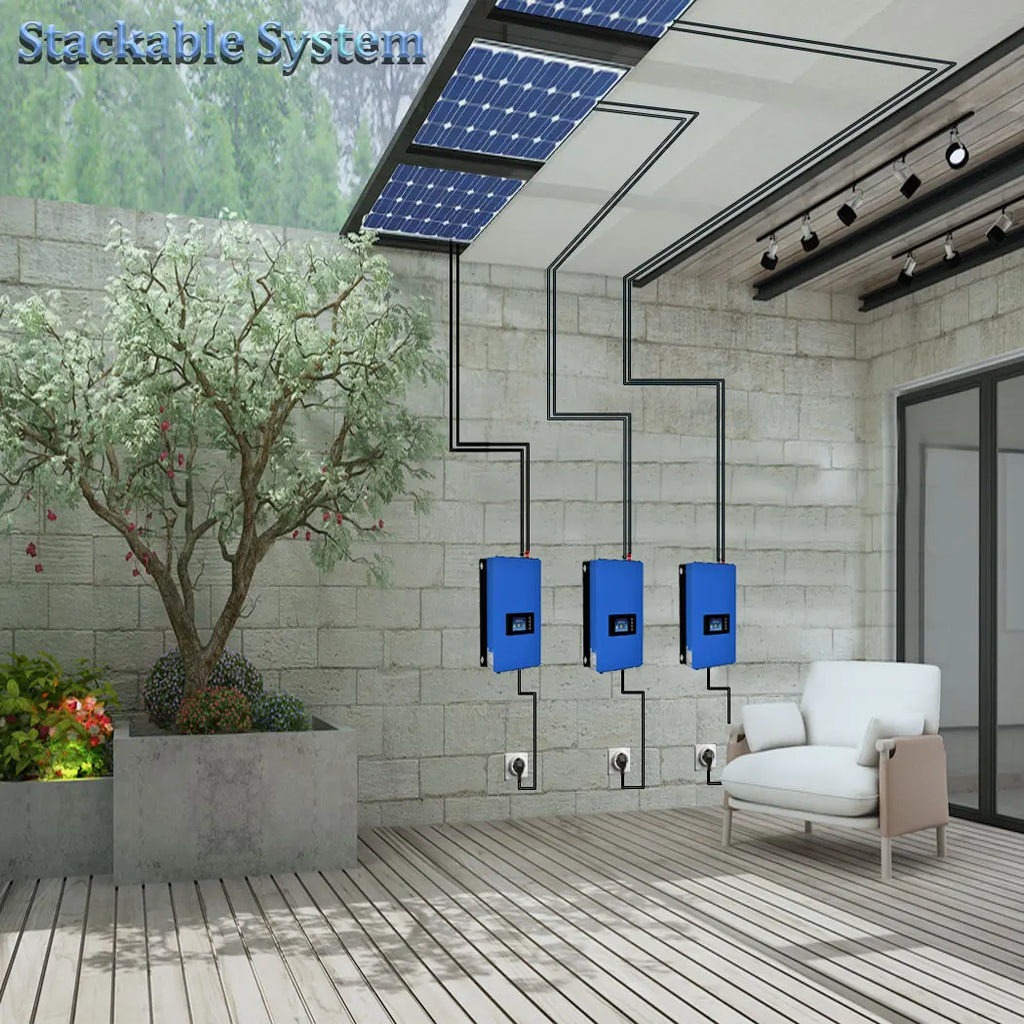

Stackable |
Just for AC Output |
|
Operating Temperature Range |
-20℃~45℃ |
|
Storage Tmpeperature Range |
-40℃~65℃ |
|
Current THD |
＜5% |
|
Voltage THD |
＜5% |
|
Standard |
CE,EN50438 |
|
Efficiency |
92% |
|
Features | ||
Net Weight |
3.6KG |
5.5KG |
Gross Weight |
5.0KG |
6.5KG |
Dimension(Package) |
430*310*160mm |
540*310*160mm |
Optional Part :
Wifi Port for MPPT 1000W/2000W NEW SUN Solar Grid Tie Inverter
