Mileseey TR256B TR256E IR Thermal Imager Camera 256*192 Resolution 7 Palettes with 2MP Visual Light 50HZ 13 Languages NETD 40mK

Save 20%
East Supplier PlatformSKU: 1005005179484236-TR256B-CHINA

Color: TR256B
Price:
$819.04 $1,023.80

Tax included Shipping calculated at checkout

Stock:
Sold out

Description

SPECIFICATIONS

Battery Included: Yes

Brand Name: MiLESEEY

Display Size: 2.0 - 3.9 Inches

Hign-concerned Chemical: None

Maximum temperature: 550 ℃

Minimum temperature: -20 ℃

Origin: Mainland China

Style: Handheld

Thermal pixels: 256*192

Mileseey TR256B TR256E IR Thermal Imager Camera 256*192 Resolution 7 Palettes with 2MP Visual Light 25HZ 13 Languages NETD 40mK


Model

TR256B

TR256E

Temperature range

-20℃~+550

-20℃~+350

Temperatureunit

// K

// K

Temperatureresolution

0.1

0.1

Emissivity

0.1~1.0 Adjustable

0.1~1.0 Adjustable

Display

2.8LCD (320×240)

2.8LCD (320×240)

Temperature Alarm

LED flash/screen tip

LED flash/screen tip

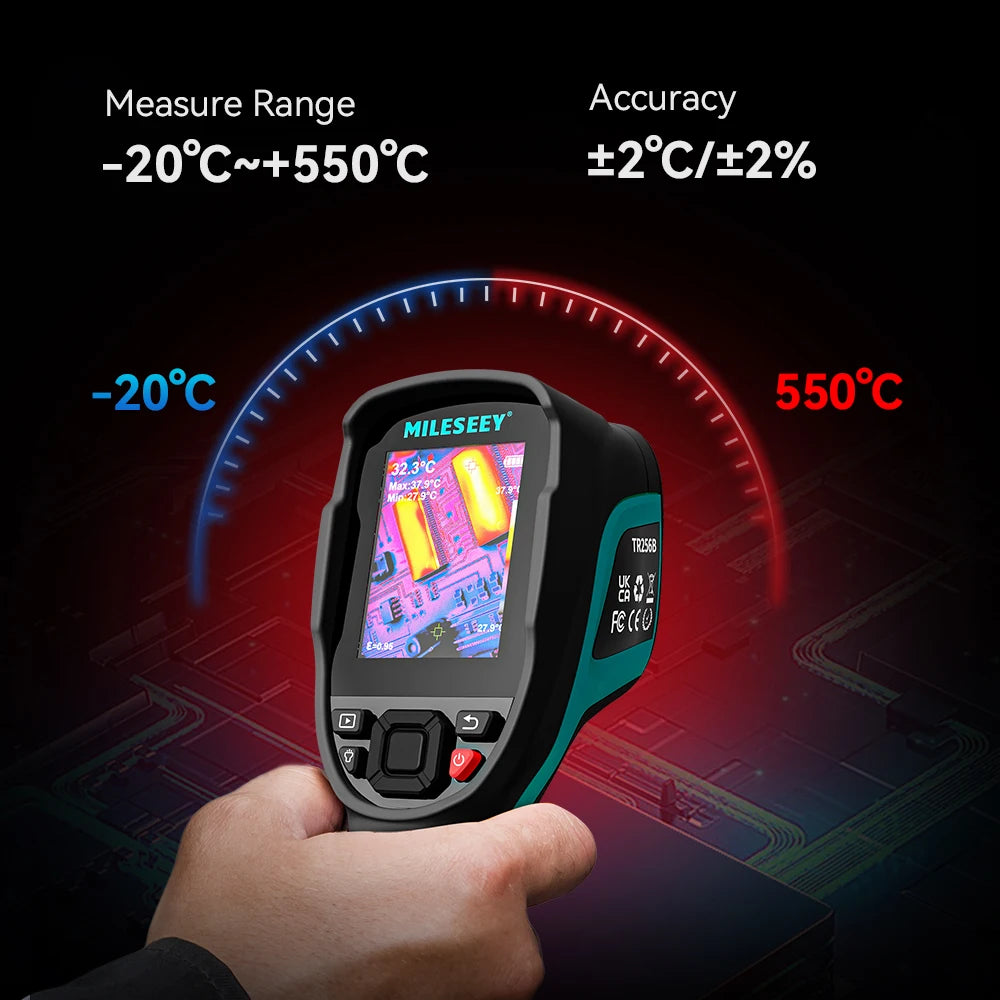

Accuracy

±2/ ±2%

±2/ ±2%

Response time

10ms

10ms

IR resolution

256×192

256×192

Visual Resolution

200W

/

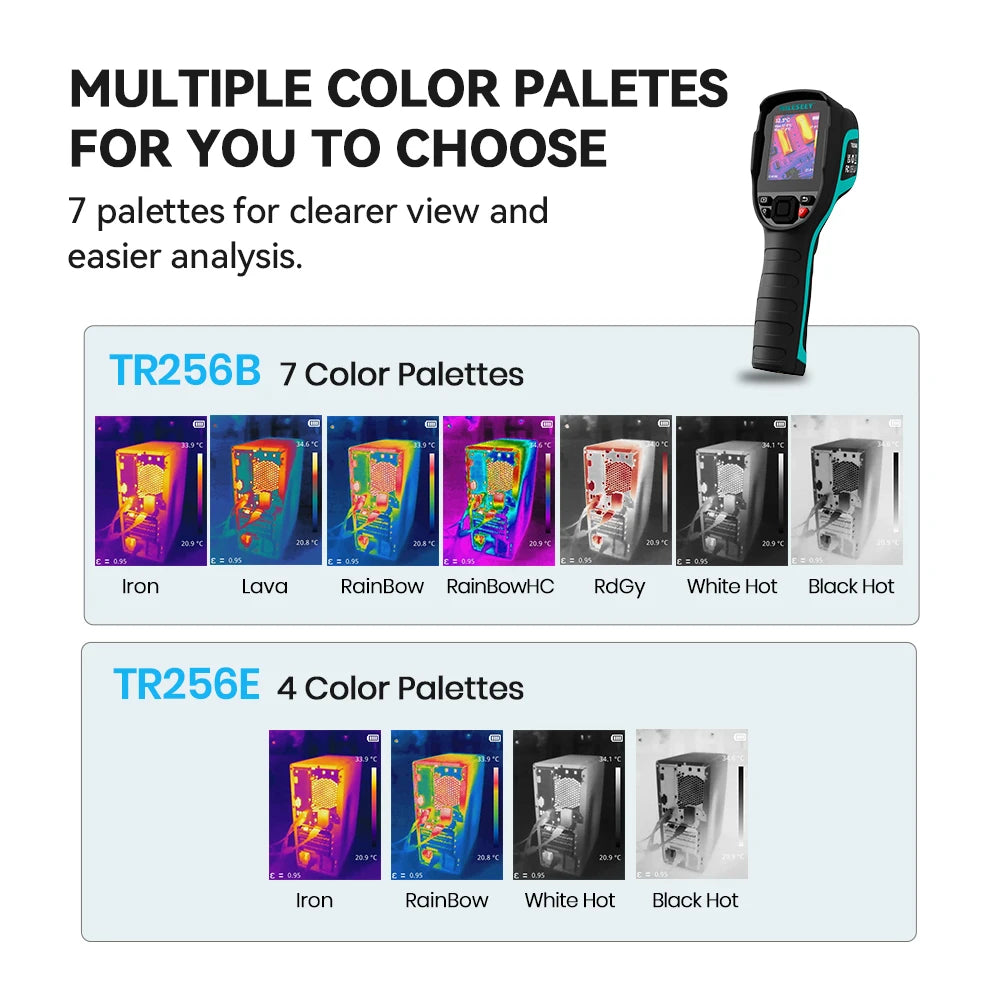

Color Palette

White Hot,Black Hot,Iron,Lava,RainBow,RainBowHC, RdGy

White Hot,Black Hot,Iron,RainBow

Image mode

IR,Fuse,PIP,Visble,Alignment

IR

Pixel size

12μm

12μm

Infrared spectral bandwidth

8-14μm

8-14μm

Field of view (FOV)

56º×42º

56º×42º

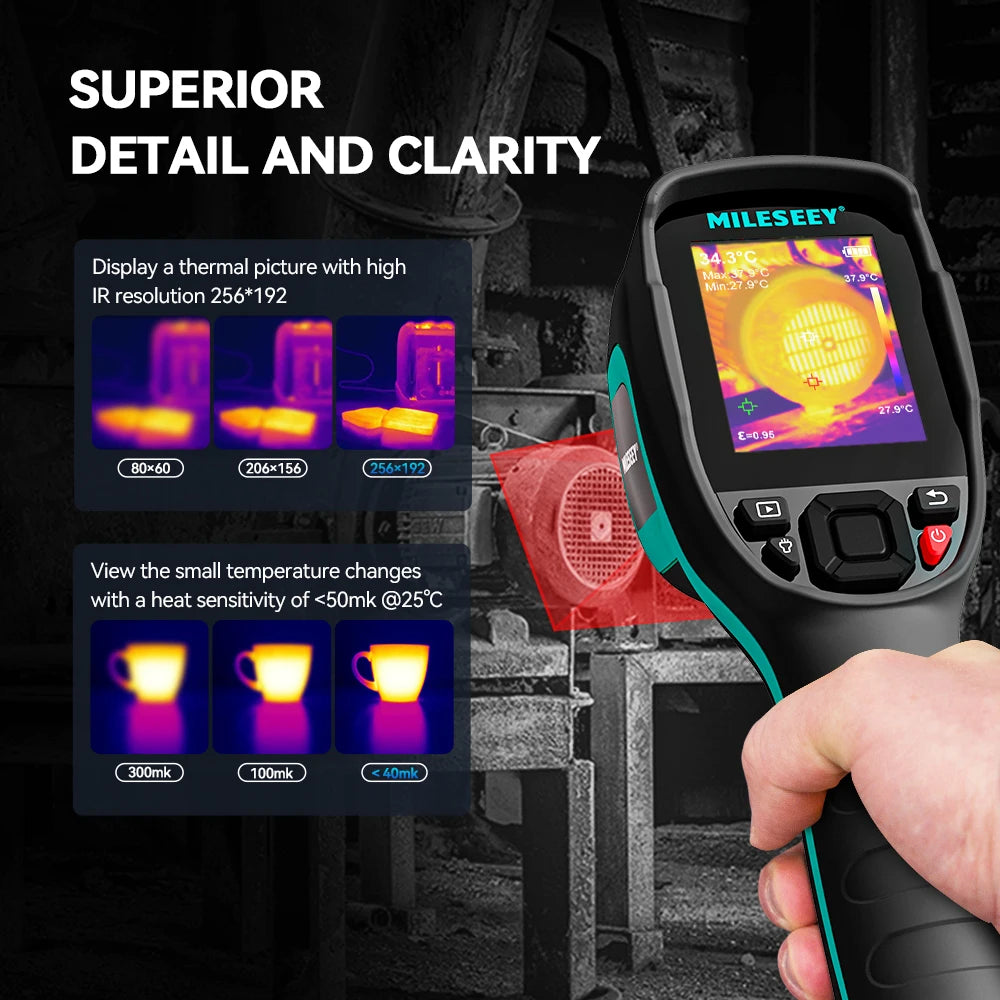

NETD

40mK

40mK

Focus Mode

focus-free

focus-free

Frame rate

50hz

50hz

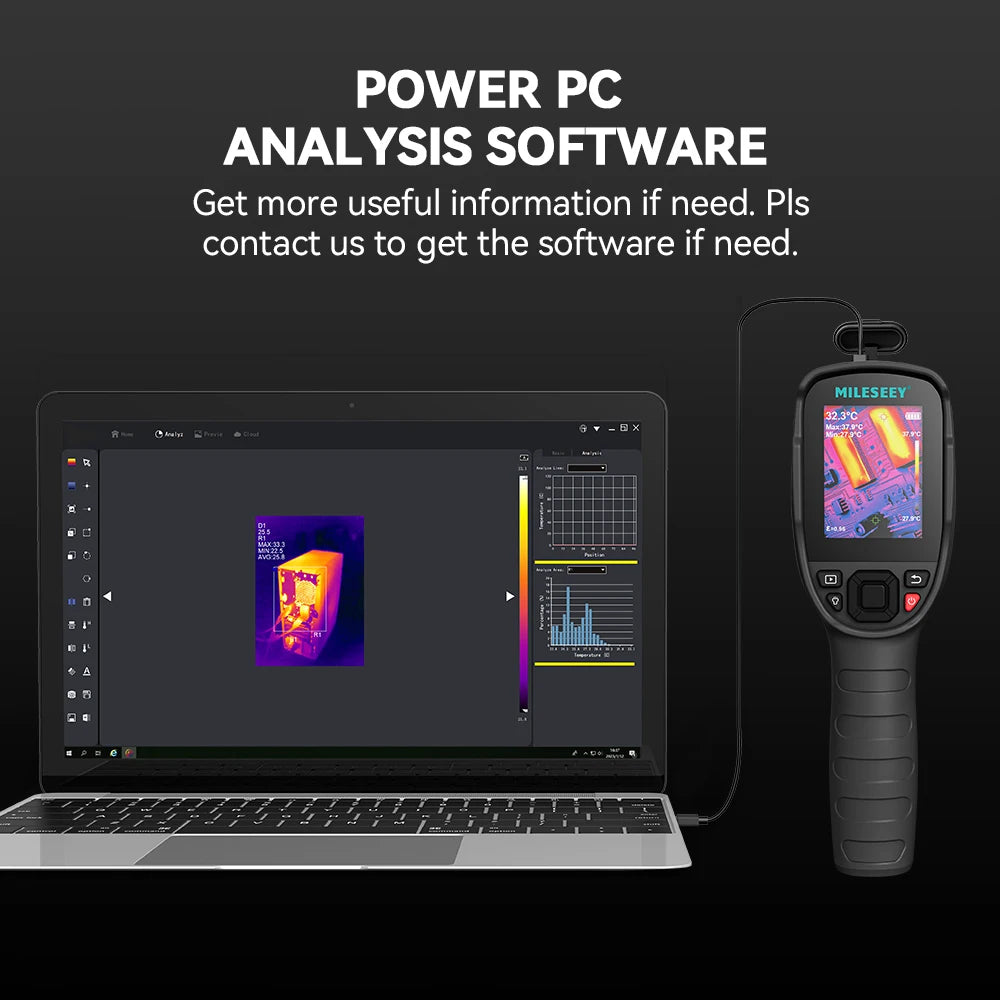

PC software

Yes

Yes

Real-time image transmission

Yes

Yes

USB connection

U disk

U disk

Battery

5000mah Li-ion battery 26650

5000mah Li-ion battery 26650

Battery life

12h

12h

Charging time (Power off state)

4 h

4 h

Charging voltage/current

5V 1A or 5V 2A

5V 1A or 5V 2A

Image storage

Micro SD Card

Micro SD Card

Transportation/storage environment

’-20~60℃(-4~140℉)10%-95% RH (non-condensing)

’-20~60℃(-4~140℉)10%-95% RH (non-condensing)

Operating environment

‘-10~50

‘-10~50

IP rating

IP54

IP54

Drop test

2M

2M
