GEYA GRV8-04 3 Phase Voltage Monitoring Relay with Phase protection Delay Time Overvoltage and Undervoltage Relay Din Rail

Save 20%
East Supplier PlatformSKU: 32966825501-GRV8-04 M265

Price:
$29.14 $36.43

Tax included Shipping calculated at checkout

Stock:
In stock (478 units), ready to be shipped

Description

SPECIFICATIONS

Product Name: 3 Phase Monitoring Relay

Voltage Range: M460 M265

Rated Current: 10A

Output Contact: 1SPDT

Rated Frequency: 50/60Hz

Adjustable Time Range: 0.1S-10S,10%

Mounting: Din Rail Type

Certificate: CE CB CCC

We are Factory: Accept OEM ODM

Brand Name: GEYA

Voltage: 240V

Model Number: GRV8-04 Three Phase Voltage Relay

Theory: Voltage relay

Protect Feature: Sealed

Usage: Protective

Contact Load: Low Power

Origin: Mainland China

Power Source: AC

is_customized: Yes

Certification: CE

Choice: yes

semi_Choice: yes



Tips: This link is for 3phase monitoring relay GRV8-04/GRV8-04D M265 OR M460, if you need other function, please click here, thanks!

GRV8-04 Function: Over voltage 2%-20%, Undervoltage -20%-2%, Delay Time 0.1s-10s, Phase Sequence, Phase Failure

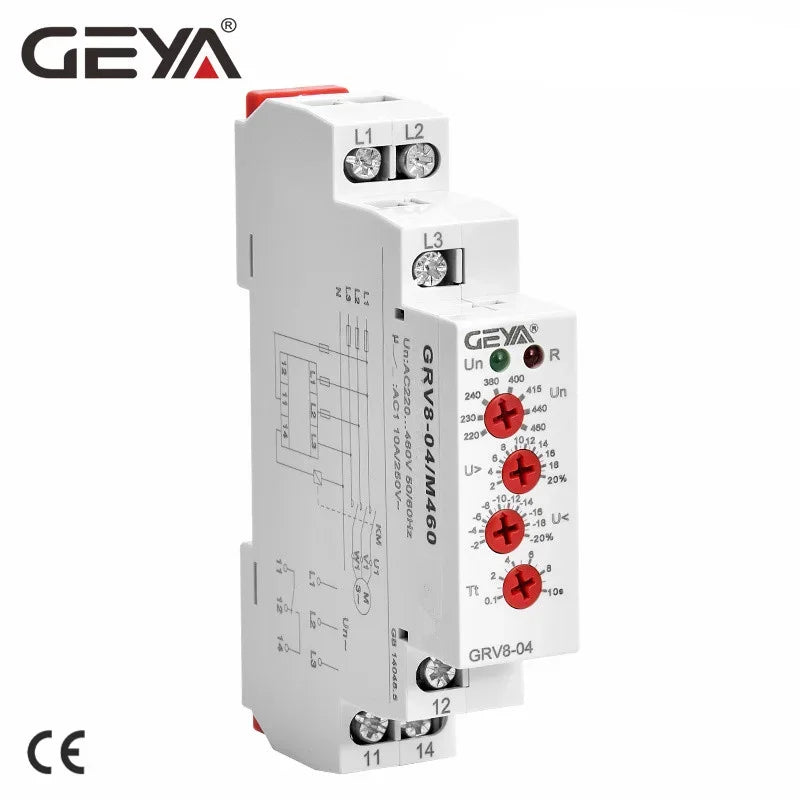

GRV8-04 M460 : 10A, 1SPDT, 3Phase 3Wire=M460 Voltage Range: 220V-230V-240V-380V-400V-415V-440V-460VAC(P-P)

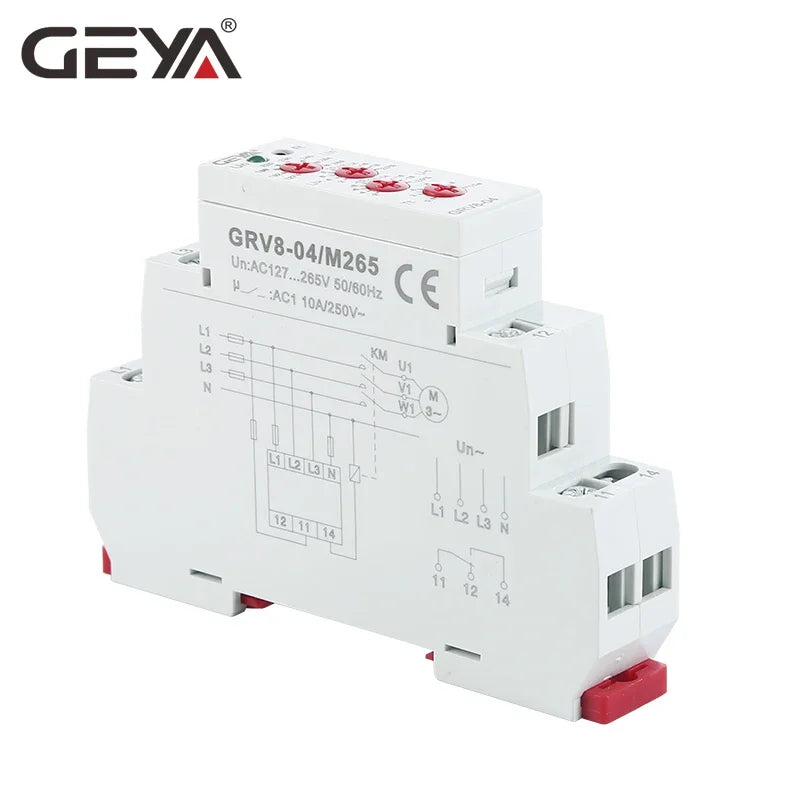

GRV8-04 M265 : 10A, 1SPDT, 3Phase 4Wire=M265 Voltage Range: 127V-132V-138V-220V-230V-240V-254V-265VAC(P-N)

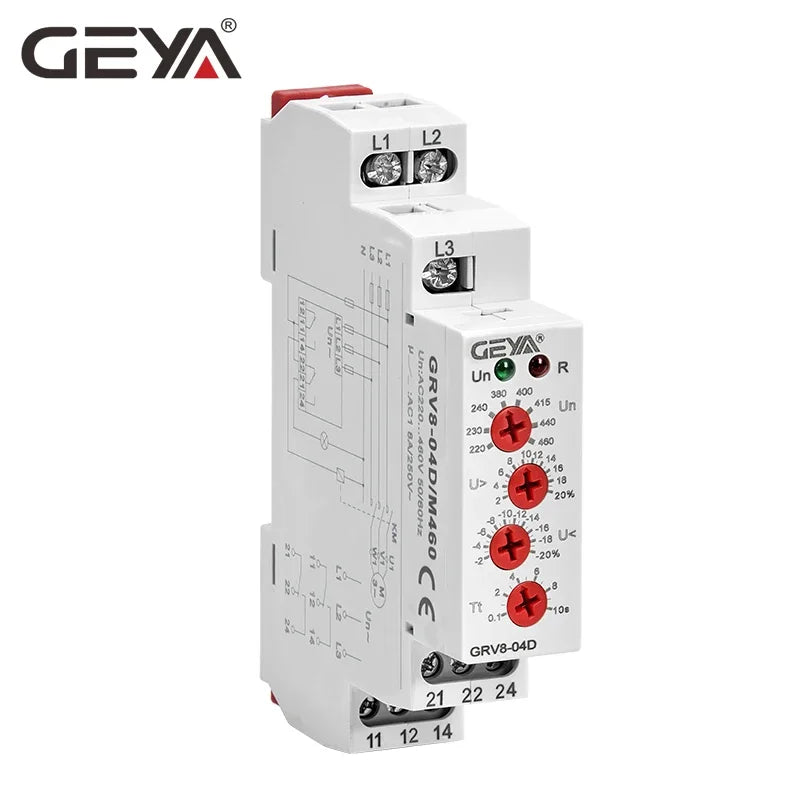

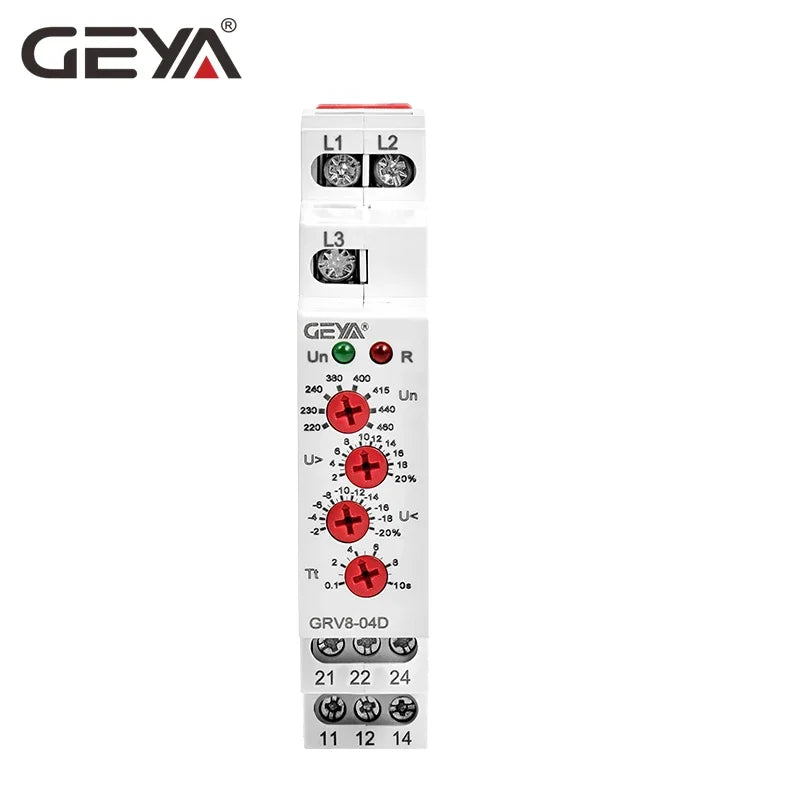

GRV8-04D M460 : 8A, 2SPDT, 3Phase 3Wire=M460 Voltage Range: 220V-230V-240V-380V-400V-415V-440V-460VAC(P-P)
GRV8-04D M265 : 8A, 2SPDT, 3Phase 4Wire=M265 Voltage Range: 127V-132V-138V-220V-230V-240V-254V-265VAC(P-N)

General

Applications

-Control for connection of moving equipment(site equipment,agricultural
equipent,refrigerated trucks).
-Control for protection of persons and equipment against the consequences
of reverse running.
-Normal/emergency power supply switching.
-Protection against the risk of a driving load(phase failure).

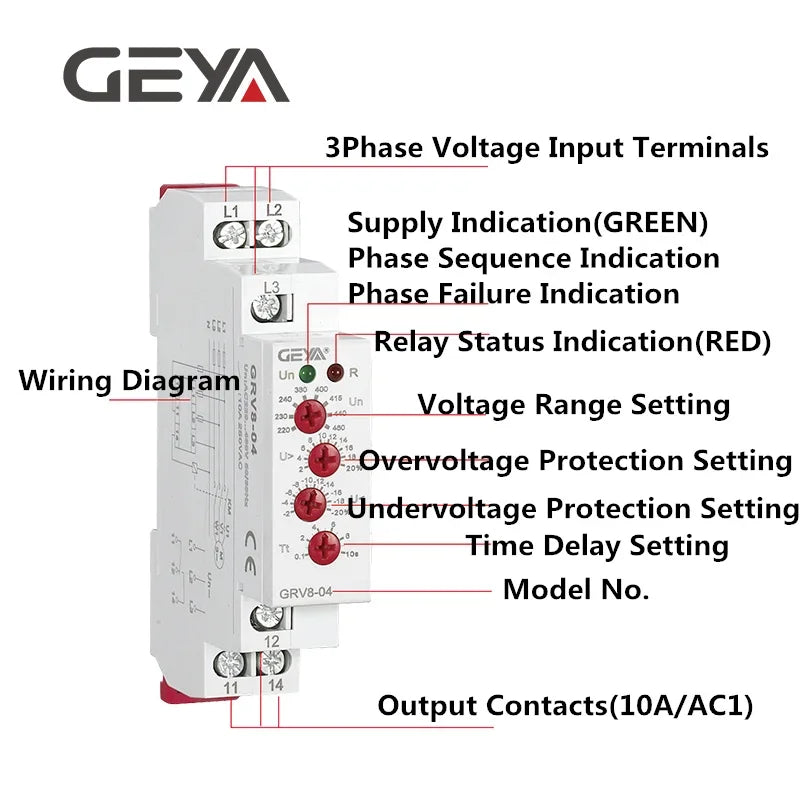

Function Features
-Controls its own supply voltage(True RMS measurement).
-Set 8-level rated operating voltage through knob.
- Measuring frequency range:45Hz-65Hz.
- Voltage measurement accuracy<1%.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

HOW TO CHOOSE THE MODEL



Product Code Over Voltage Under Voltage Asymmetry Delay Time Phase Sequence Phase Failure
GRV8-03 / / / / YES YES
GRV8-04 2%~20% -20%~2% / 0.1s~10s YES YES
GRV8-05 2%~20% -20%~2% 8% 0.1s~10s YES YES
GRV8-06 2%~20% -20%~2% 5%~15% 2s YES YES
GRV8-07 / / 8% 2s YES YES
GRV8-08 15% -15% 8% 2s YES YES


Note YES Means The Function is Available



GRV8-04_
grv8-04-n_
 If you need other model function of voltage relay, pls click below!

grv8-04_

grv8-03
